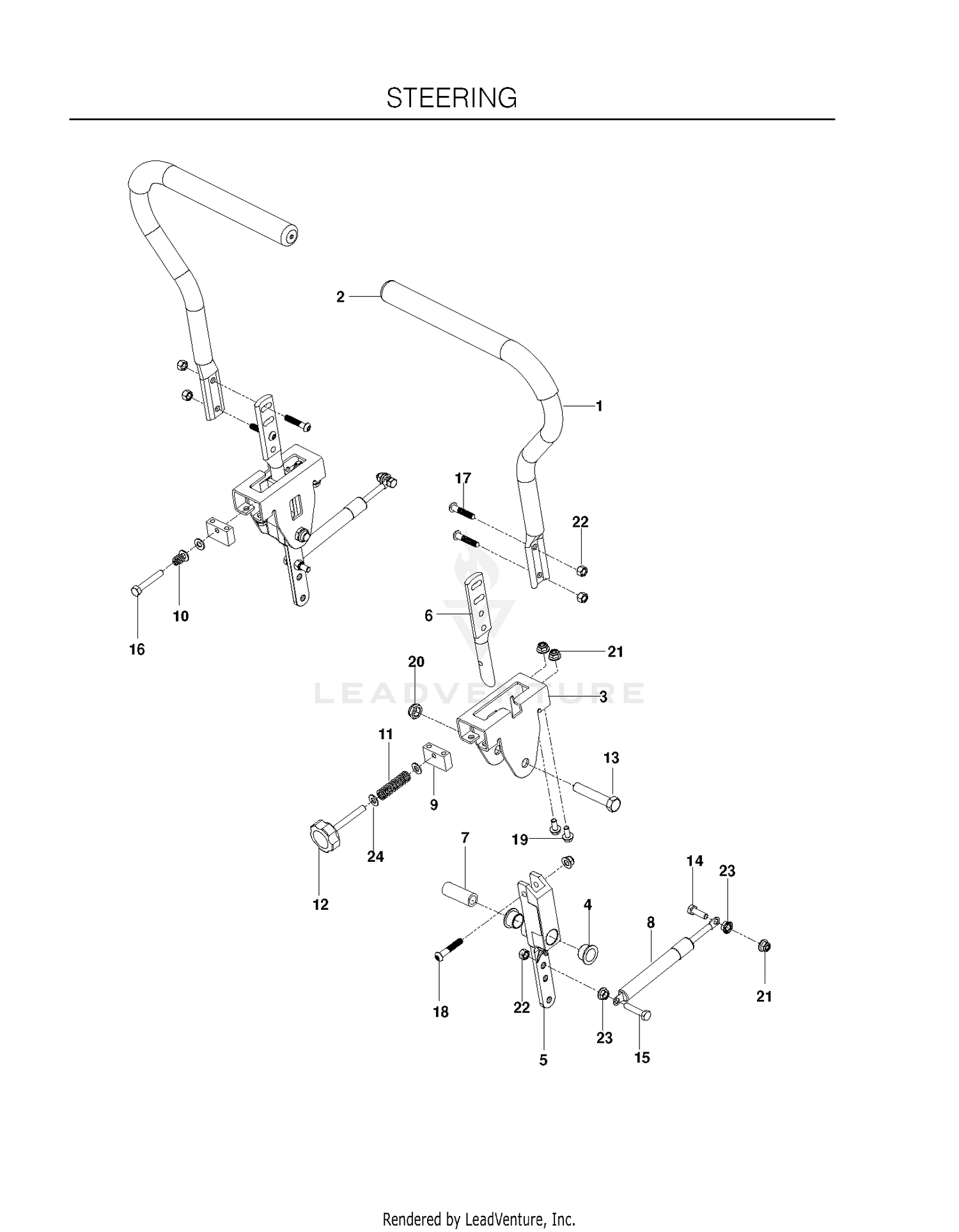

| Ref | Part Number | Description |
|---|
| 1 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 1 |
579036901 |
LEVER.STEERING.ASM.(W/GRIP) Price: $39.99 |
| 2 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 2 |
598851704 |
TUBE RZ CONTROL LEVER LEFT MS This part replaces 525392901. Price: $44.99 |
| 3 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 3 |
586737202 |
BRACKET.CONTROL.NARROWSLOT.BLK This part replaces 577251701. Price: $22.99 |
| 4 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 4 |
62-7400 |
DECAL Price: $24.54 |
| 5 |
576140301 |
LEVER CONTROL PIVOT Price: $19.99 |
| 5 |
62-5400 |
DISCONTINUED Price: Call Us |
| 6 |
577420002 |
Levers This part replaces 577420001. Price: $9.99 |
| 6 |
75-9310 |
DISCONTINUED Price: Call Us |
| 7 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 7 |
584927201 |
SPACER.PIVOT.CONTROL This part replaces 577252401. Price: $4.99 |
| 8 |
539102720 |
DAMPENER Price: $39.99 |
| 9 |
577251801 |
BLOCK.TRACKING Price: $9.99 |
| 9 |
62-7320 |
TRACTION PEDAL STOP WA Price: $65.13 |
| 10 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 10 |
539102845 |
SPRING Price: $2.99 |
| 11 |
576850301 |
SPRING COMPRESSION 2.0 Price: $3.99 |
| 11 |
62-7350 |
DISCONTINUED Price: Call Us |
| 12 |
596400701 |
Knobs This part replaces 539131799. Price: $8.99 |
| 12 |
76-2200-03 |
FOOTREST-PEDAL, TRACTION This part replaces 76-2200. Price: $42.73 |
| 13 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 13 |
76-2260 |
PAD-FOOTREST Price: $8.40 |
| 14 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 14 |
80-4240-03 |
RH FOOTREST ASM This part replaces 80-4240. Price: $99.31 |
| 15 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 15 |
596582201 |
Bolts This part replaces 539976935. Price: $2.99 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
539101469 |
RING RETAINING INT 2-1/2 Price: $1.22 |
| 17 |
32128-25 |
NUT-HF Price: $3.19 |
| 17 |
578296401 |
SCREW 5/16-18 X 1 BTN-HD Price: $2.99 |
| 18 |
32144-22 |
SCREW Price: $0.75 |
| 18 |
576850402 |
SCREW 5/16-18 X 1 3/4 BTN-HD Price: $3.99 |
| 19 |
28-0120 |
L.H. HINGE BRACKET Price: $48.24 |
| 19 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 20 |
321-5 |
SCREW-HH Price: $0.22 |
| 20 |
539108010 |
NUT 1/2-13 HEX JM NYL Price: $2.99 |
| 21 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 21 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 22 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 22 |
76-0130 |
CHAIN ASSY Price: $10.35 |
| 23 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 23 |
72-9540 |
HEAT SHIELD BRACKET Price: $13.76 |
| 24 |
72-4150-03 |
DISCONTINUED This part replaces 72-4150. Price: Call Us |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
321-2 |
SCREW-HH Price: $2.79 |
| 27 |
66-6120 |
FOOTREST PAD Price: $30.72 |
| 28 |
84-1650 |
DECAL - BRAKE Price: $7.02 |
| 28 |
93-7267 |
DECAL-BRAKE Price: $6.37 |
| 29 |
72-4360-03 |
LH FOOTREST ASM This part replaces 72-4360. Price: $136.22 |
| 30 |
62-7190 |
SPACER-STEEL Price: $3.87 |
| 32 |
57-3210 |
SCREW Price: $2.28 |
| 33 |
83-9800-01 |
GRASS SHIELD-FRONT, LH This part replaces 83-9800. Price: $28.36 |
| 34 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 35 |
83-8860-01 |
R/H FRT SHIELD This part replaces 83-8860. Price: $20.35 |
| 36 |
3250-50 |
DISCONTINUED Price: Call Us |
| 38 |
66-5340-03 |
FRONT GRILLE This part replaces 66-5340. Price: $116.48 |
| 39 |
3217-7 |
NUT-HEX Price: $0.28 |
| 40 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 41 |
92-1841 |
DISCONTINUED Price: Call Us |
| 42 |
28-0130 |
RH HINGE BRKT Price: $48.24 |
| 43 |
3229-11 |
SCREW-CARR This part replaces 3229-22. Price: $0.99 |
| 44 |
10-4850 |
COMP SPRING *O Price: $9.19 |
| 45 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
