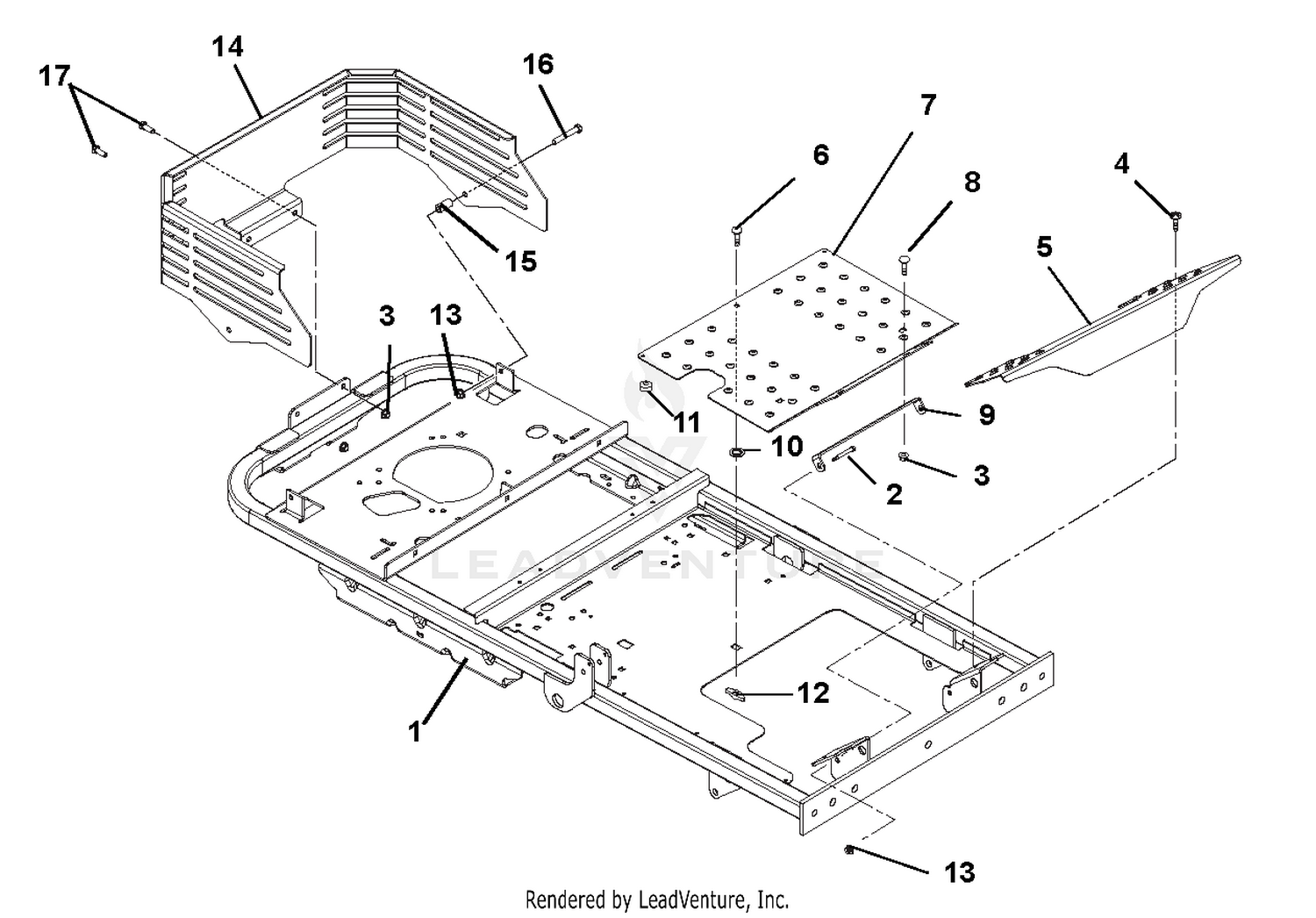

| Ref | Part Number | Description |
|---|
| 1 |
00458151 |
WMT, PIVOTING AXLE FRAME Price: $517.10 |
| 2 |
07056700 |
BOLT-SHLDR .375-16X.150 Price: $3.95 |
| 3 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 4 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07411500. Price: $1.45 |
| 5 |
00457863 |
FOOTREST Price: Call Us |
| 6 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 7 |
03760101 |
PAINTED FOOTREST ASSEMBLY Price: Call Us |
| 8 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 9 |
00458051 |
BRACKET, DECK ACCESS Price: $5.45 |
| 10 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 11 |
07503100 |
BUMPER GROMMET Price: $3.45 |
| 12 |
07534800 |
KNOB-CLAMPING, .312-18 NYLOC This part replaces 07531700. Price: $3.45 |
| 13 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 14 |
00493301 |
ENGINE GAURD, PAINTED W/DECALS Price: Call Us |
| 15 |
00363800 |
BSHG, SPCR .390X.625X1.25 PM Price: $14.45 |
| 16 |
05901812 |
BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45 |
