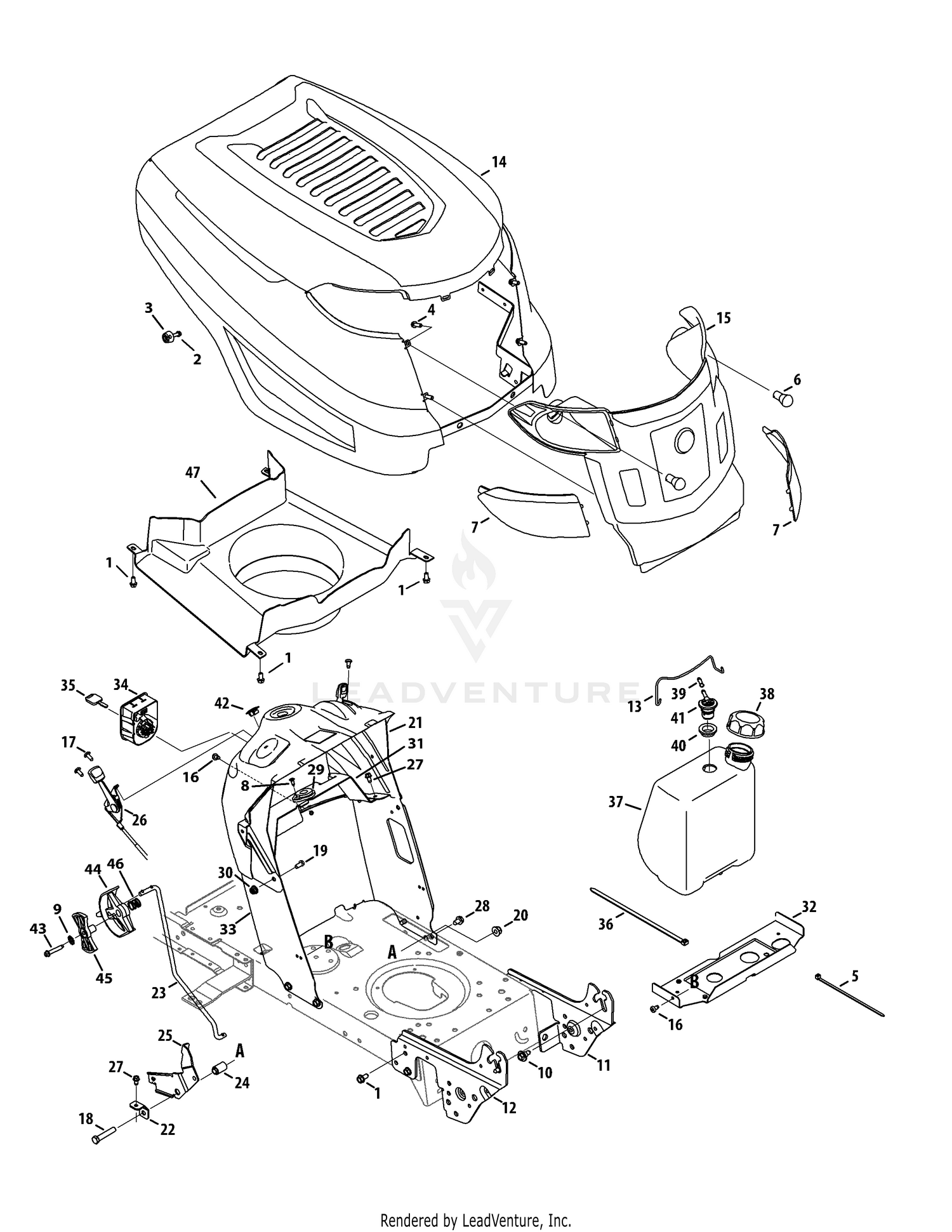

| Ref | Part Number | Description |
|---|
| 1 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 2 |
710-05281 |
Screw, #12-16 x 1.25 Price: $3.36 |
| 3 |
731-06404 |
K-Style Bumper Price: $7.99 |
| 4 |
710-05108 |
Screw, 1/4 x .750 Price: $3.19 |
| 5 |
725-0157 |
Cable Tie Price: $3.46 |
| 6 |
925-0963 |
Miniature lamp 12V socket Price: $6.73 |
| 7 |
731-06095 |
Grill Lens - LH Price: $10.81 |
| 7 |
731-06096 |
Grill Lens - RH Price: $10.74 |
| 8 |
910-0224 |
Screw, #10-16 x .500 Price: $3.19 |
| 9 |
736-3006 |
Lock Washer, 1/4 Price: $5.32 |
| 10 |
738-04091A |
Shoulder Screw .43 x .29 Price: $3.50 |
| 11 |
783-05327B-0637 |
Suppport Bracket LH Price: $35.56 |
| 12 |
783-05328B-0637 |
SUPPORT BRACKET (RH) This part replaces 783-05328A-0637. Price: $37.34 |
| 13 |
747-04744A |
BATTERY ROD ASSEMBLY This part replaces 683-04448-0637. Price: $9.09 |
| 14 |
683-04441A-0638 |
Hood Price: $313.46 |
| 15 |
631-04272 |
Grill Price: $61.79 |
| 16 |
710-05070A |
Screw, 1/4-20 x .500 Price: $6.01 |
| 17 |
710-04483 |
SCREW 1/4-20 x .500 Price: $5.97 |
| 18 |
710-3144 |
Hex Screw 3/8-16 x 2.00 Price: $4.02 |
| 19 |
710-3025 |
Hex Screw, 5/16-18 x .625 Price: $3.64 |
| 20 |
712-04065 |
Flange Lock Nut 3/8-16 Price: $3.68 |
| 21 |
931-08054A |
Dash, Upper Price: $45.43 |
| 22 |
783-06823 |
Speed Latch Tab Price: $15.33 |
| 23 |
747-05398 |
Speed Control Rod Price: $9.67 |
| 24 |
750-04465C |
Flange Spacer .39 x .671 x 1.095 Price: $3.64 |
| 25 |
783-06991A-0637 |
LATCH SPEED BRACKET (POWDER BLACK) This part replaces 783-06991-0637. Price: $8.29 |
| 26 |
946-04367A |
THROTTLE CABLE 28" x 1.1 This part replaces 746-04367. Price: $35.49 |
| 27 |
710-1652 |
Tap Screw, 1/4-20, 0.625 Price: $3.86 |
| 28 |
710-0604A |
Screw 5/16-18 x .625 Price: $3.96 |
| 29 |
741-0587 |
Bearing, .628 ID x 1.36 Price: $3.90 |
| 30 |
712-04063 |
Flange lock Nut 5/16-18 Price: $3.56 |
| 31 |
783-06785C-0637 |
Bracket, Steering Support Price: $8.34 |
| 32 |
783-07083A-0637 |
FUEL TANK BRACKET This part replaces 783-07083-0637. Price: $24.93 |
| 33 |
783-06811F-0638 |
LOWER DASH (MTD RED) This part replaces 783-06811D-0638. Price: $43.47 |
| 34 |
925-04659 |
Key Switch Module Price: $38.76 |
| 35 |
925-1745A |
IGNITION KEYS This part replaces 625-05002. Price: $15.91 |
| 36 |
726-0230 |
Cable Tie Price: $23.95 |
| 37 |
651P08849 |
FUEL TANK (1.36 GAL) This part replaces 951-04304. Price: $85.45 |
| 38 |
951-12179C |
FUEL CAP W/12"TETHER VENTED This part replaces 951-12179B. Price: $33.78 |
| 39 |
751-12089-28 |
Hose Vent, 3/16 Price: $7.79 |
| 40 |
735-04081 |
Rubber Grommet Price: $3.96 |
| 41 |
751-12118 |
Rollover Valve Price: $31.61 |
| 42 |
731-05265 |
Choke Plug Price: $5.01 |
| 43 |
710-0778 |
Hex Washer Screw, 1/4-20 x 1.50 Price: $3.90 |
| 44 |
731-07885B |
Shift Lever Price: $10.24 |
| 45 |
731-07895A |
Index Control Price: $5.59 |
| 46 |
732-04877 |
Compr. Spring, .72 OD x .78 Price: $3.74 |
| 47 |
931-09328A |
K STYLE PLENUM This part replaces 931-09328. Price: $38.74 |
