| Ref | Part Number | Description |
|---|
| 2 |
60-2000 |
PIN Price: $1.13 |
| 3 |
60-1750-03 |
LEVER-LATCHING, RH This part replaces 60-1750. Price: $94.34 |
| 4 |
60-1990 |
BUSHING Price: $14.57 |
| 5 |
47-7010 |
BUSHING-RUBBER Price: $122.81 |
| 6 |
60-1820 |
SHAFT-PIVOT, LATCH Price: $134.64 |
| 7 |
74-2920-03 |
CARRIER-FRONT This part replaces 60-0070. Price: $2,618.36 |
| 8 |
60-1780-03 |
LEVER-LATCHING, LH This part replaces 60-1780. Price: $94.34 |
| 9 |
82-9370 |
PAD-STEP, FRONT Price: $19.69 |
| 10 |
60-1270 |
PIN Price: $8.73 |
| 11 |
60-0670 |
SPRING Price: $19.50 |
| 12 |
51-2060 |
WASHER Price: $0.68 |
| 13 |
82-9360 |
ROD-LATCH Price: $31.36 |
| 14 |
58-2720 |
PIN Price: $49.81 |
| 15 |
63-4380 |
TOW WARNING DECAL Price: $12.79 |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 18 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 19 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 20 |
60-0190 |
STRIP Price: $36.98 |
| 501452702 |
501452702 |
NUT Price: $3.99 |
| 501454101 |
501454101 |
PAWL Price: $5.99 |
| 501546301 |
501546301 |
SCREW Price: $4.99 |
| 501762202 |
501762202 |

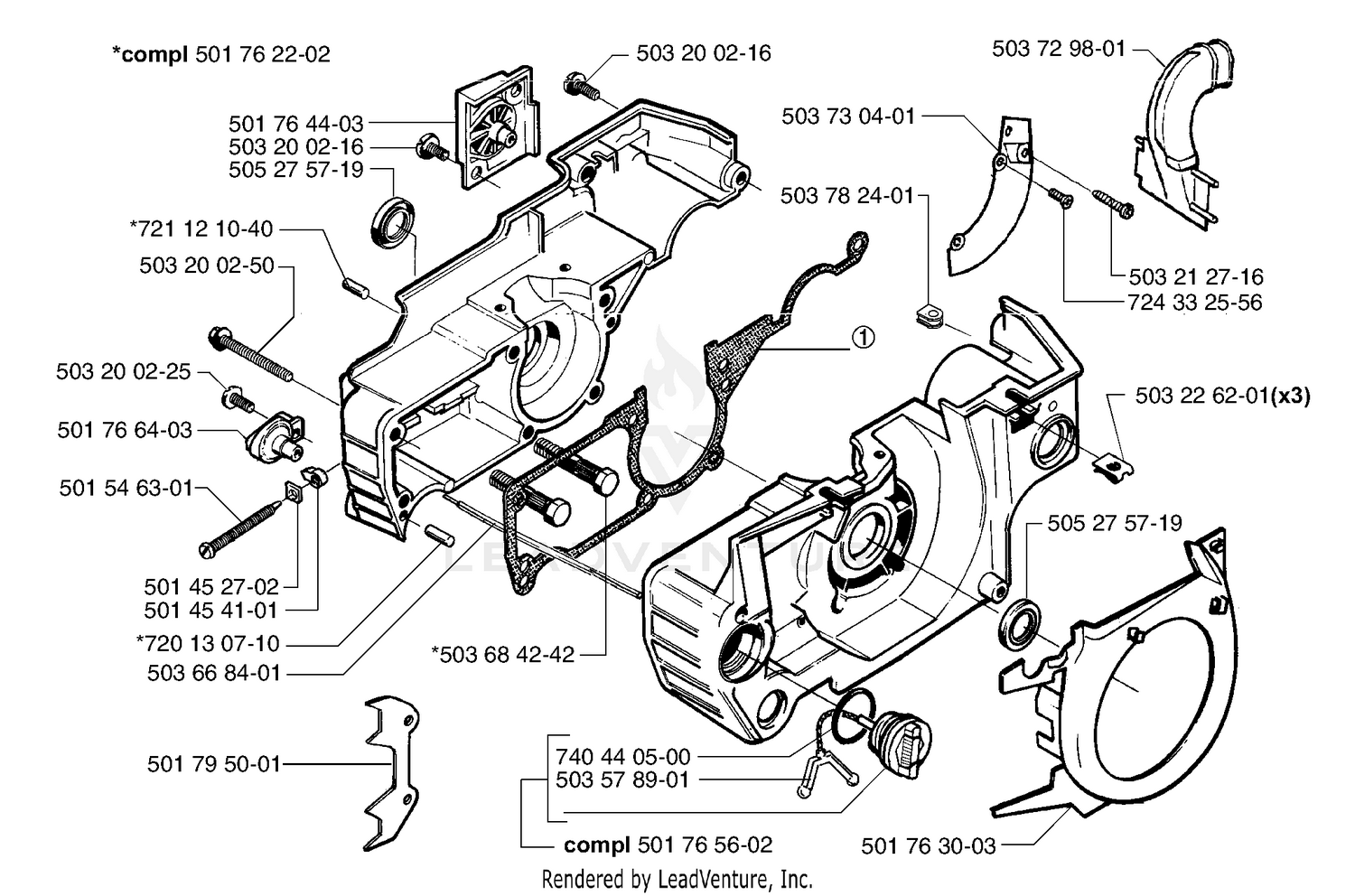

CRANKCASE Price: $219.99 |
| 501763003 |
501763003 |
AIR CONDUCTOR Price: $14.99 |
| 501764403 |
501764403 |
CAP Price: $11.99 |
| 501765602 |
501765602 |
OIL CAP Price: $8.99 |
| 501766403 |
501766403 |
CHAIN CATCHER Price: $5.99 |
| 501795001 |
501795001 |
FELLING DOG Price: $14.99 |
| 503200216 |
503200216 |
SCREW Price: $3.99 |
| 503200225 |
503200225 |
SCREW Price: $2.99 |
| 503200250 |
503207450 |
SCREW This part replaces 503200250. Price: $5.99 |
| 503212716 |
586505201 |
NEEDS DESCRIPTION This part replaces 503212716. Price: $1.99 |
| 503226201 |
503226201 |
PLATE NUT Price: $3.99 |
| 503578901 |
503578901 |
TANK LOCK Price: $4.99 |
| 503668401 |
503668401 |
OIL TANK VENT Price: $6.99 |
| 503684242 |
503684242 |
BAR BOLT Price: $7.99 |
| 503729801 |
503729801 |
AIR NOZZLE Price: $14.99 |
| 503730401 |
503730401 |
AIR BAFFLE Price: $7.99 |
| 503782401 |
503782401 |
BELLOWS Price: $5.99 |
| 505275719 |
505275719 |
SEAL RING Price: $11.99 |
| 720130710 |
720130752 |
Pins This part replaces 720130710. Price: $4.99 |
| 721121040 |
721121040 |
GROOVED PIN 3X20 Price: $3.99 |
| 724332556 |
724332556 |
SCREW *** Price: $2.99 |
