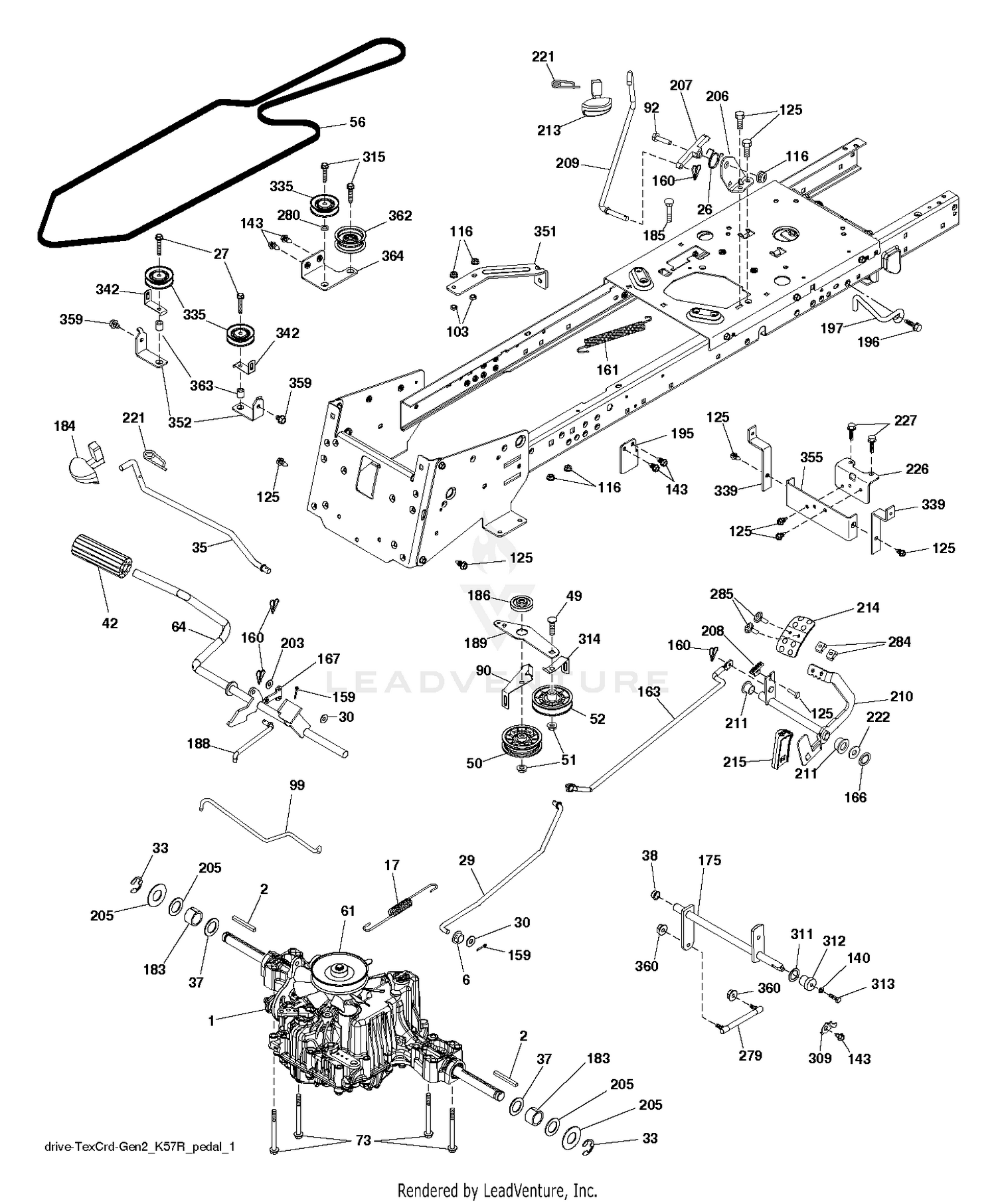

| Ref | Part Number | Description |
|---|
| 1 |
63-8090-03 |
LOWER HOUSING ASM This part replaces 63-8090. Price: $1,548.75 |
| 2 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 4 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 5 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 6 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 6 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 7 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 8 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 9 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 10 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 11 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 13 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 14 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 15 |
12-5450 |
SCREW Price: $7.99 |
| 16 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 17 |
583508701 |
SPRING.BRAKE.K46.TEX.CRD This part replaces 532436227. Price: $6.99 |
| 17 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 18 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 19 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 20 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 21 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 22 |
86-7930 |
UPPER HOUSING ASM Price: $1,416.11 |
| 23 |
3210-7 |
SCREW-HH Price: $0.61 |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 26 |
43-6550 |
RING-SNAP Price: $0.94 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 27 |
596241001 |
Screws This part replaces 817490528. Price: $4.99 |
| 28 |
46-2210 |
SHIM-BEARING, FRONT Price: $6.91 |
| 28 |
46-2225 |
SHIM-FRONT BEARING, .055 Price: $6.62 |
| 28 |
46-2424 |
DISCONTINUED Price: Call Us |
| 29 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 29 |
583566601 |
ROD.BRAKE.K46.TCRD.GEN2 This part replaces 532442795. Price: $22.99 |
| 30 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 30 |
92-5088 |
FITTING-ELBOW, 45 DEG Price: $124.81 |
| 31 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 32 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 33 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 35 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 35 |
583864502 |
Rods This part replaces 532435486. Price: $6.99 |
| 36 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 38 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 38 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 40 |
72-9420 |
VENT Price: $6.85 |
| 41 |
92-5083 |
HOSE-HYD Price: $25.27 |
| 42 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 43 |
354-71 |
DISCONTINUED Price: Call Us |
| 44 |
77-0550 |
DISCONTINUED Price: Call Us |
| 45 |
289-6 |
NIPPLE-PIPE Price: $6.96 |
| 46 |
2810-1 |
COUPLING-PIPE Price: $4.55 |
| 47 |
2412-119 |
CLAMP-HOSE, WORM DRIVE Price: $1.83 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
583566401 |
RP_BELT.DRIVE.GROUND.114.25 This part replaces 532442781. Price: $84.99 |
| 61 |
583577801 |
PULLEY.INPUT.FLANGED.TRANSAXLE This part replaces 532445151. Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 90 |
583570001 |
KEEPER.BELT.CLUTCHING.TEX.CRD This part replaces 532443605. Price: $4.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
583571801 |
ROD.BYPASS.CRD.TEX.GEN2 This part replaces 532443947. Price: $7.99 |
| 103 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 140 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
594084102 |
Rods This part replaces 532442793. Price: $29.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 175 |
583560401 |
SHAFT.ASM.CROSS.SHIFT.REAR.FCH This part replaces 532441823. Price: $19.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532441455. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
583492701 |
BELLCRANK.GROUND.DRIVE.CRD.TEX This part replaces 532433611. Price: $5.99 |
| 195 |
580456901 |
BRACKET.ROD.BRAKE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop This part replaces 585658601. Price: $4.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 279 |
593898401 |
Links This part replaces 532444283. Price: $8.99 |
| 280 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 285 |
874180412 |
SCREW.MACHINE.CR.1/4-20 Price: $3.99 |
| 309 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 311 |
532169845 |
WASHER NYL Price: $2.99 |
| 312 |
532165614 |
HUB.TAPERED.ROUND.CRD Price: $4.99 |
| 313 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 314 |
583575801 |
KEEPER.BELT This part replaces 532444713. Price: $3.99 |
| 315 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 335 |
532199534 |
PULLEY.V-IDLER. Price: $32.99 |
| 339 |
583512601 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532436867. Price: $2.99 |
| 342 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532182682. Price: $5.99 |
| 351 |
583515101 |
BRACKET.97.CRD.DECK.SWAY This part replaces 532436998. Price: $7.99 |
| 352 |
583506401 |
BRACKET.IDLER.CRD.TEX This part replaces 532435645. Price: $4.99 |
| 355 |
583506501 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532435669. Price: $5.99 |
| 359 |
596564002 |
Screws This part replaces 817490610. Price: $2.99 |
| 360 |
583575901 |
NUT.HEX.CENTERLOCK.5/16-24 UNF This part replaces 532444714. Price: $2.99 |
| 362 |
583512101 |
IDLER.FLAT.2.25.INCH This part replaces 532436812. Price: $27.99 |
| 363 |
583566301 |
SPACER.343X63X.62 This part replaces 532442780. Price: $3.99 |
| 364 |
583567401 |
BRACKET.IDLER.CRD.TEX This part replaces 532443032. Price: $7.99 |
