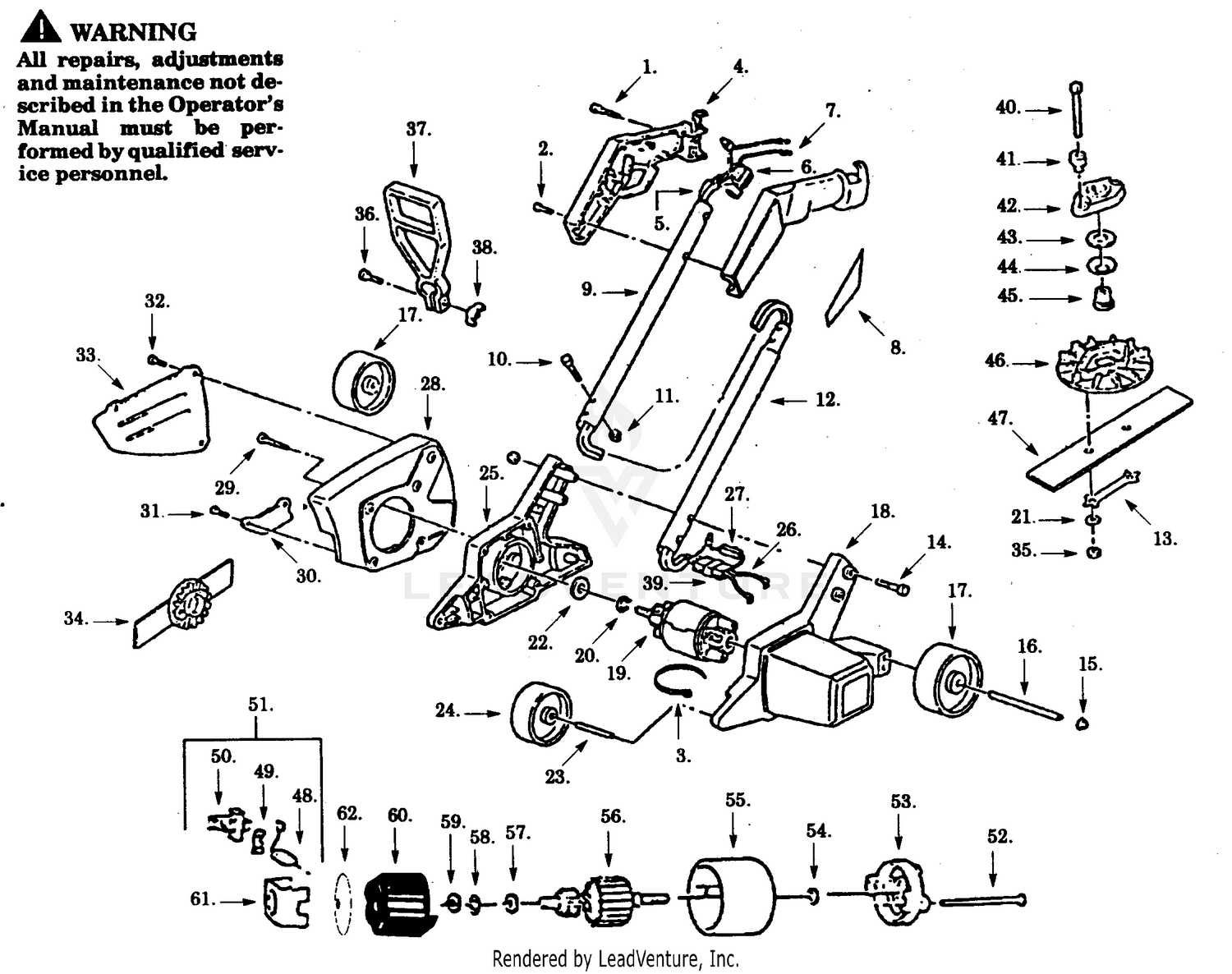

EDGER/BRUSHCUTTER ASSEMBLY
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 534826802 | Screw Price: $0.99 |
| 2 | 534826801 | Screw Price: $1.99 |
| 3 | 534134700 | Tie Strap Price: $0.99 |
| 4 | 534826531 | Handle Set Price: $5.99 |
| 5 | 243035 | Grommet Price: Call Us |
| 5 | 534844603 | Harness Ass'y. Price: $27.99 |
| 6 | 277058 | Baffle, Bl. Hsg. Support Price: Call Us |
| 6 | 534193004 | Trigger Switch Price: $3.33 |
| 7 | 4802704 | Housing-Blower Price: Call Us |
| 7 | 534936001 | Power Plug Price: $3.33 |
| 8 | 4806308 | Baffle-Side Cylinder #1 Price: Call Us |
| 8 | 534101520 | Warning Label Price: $3.33 |
| 9 | 4806309 | Baffle-Side Cylinder #2 Price: Call Us |
| 9 | 534840201 | Upper Tube Price: $8.99 |
| 10 | 4806310 | Baffle-Bottom Cylinder #1 Price: Call Us |
| 10 | 534829600 | Screw Price: $3.33 |
| 11 | 4806312 | Baffle-Top Cylinder #1 Price: Call Us |
| 11 | 534828300 | Locknut Price: $3.33 |
| 12 | 4806302 | Baffle-Top Cylinder #2 Price: Call Us |
| 12 | 534840501 | Lower Tube Price: $8.99 |
| 13 | 534135700 | Lock Strap Price: $1.99 |
| 14 | 534174501 | Screw Price: $0.99 |
| 15 | 534121000 | Pushnut Price: $1.99 |
| 16 | 534781011 | Rear Axle Price: $1.99 |
| 17 | 534240003 | Rear Wheel Price: $3.99 |
| 18 | 534323331 | Motor Cover Price: $9.99 |
| 19 | 534103630 | Motor Ass'y. Price: $3.33 |
| 20 | 534246700 | Retaining Ring Price: $0.99 |
| 21 | 534136600 | Lockwasher Price: $1.99 |
| 22 | 534758000 | Washer Price: $1.99 |
| 23 | 534740002 | Front Axle Price: $3.33 |
| 24 | 534730001 | Front Wheel Price: $3.99 |
| 25 | 534323231 | Frame Price: $4.99 |
| 26 | 534710001 | P.C. Board Ass'y. Price: $11.99 |
| 27 | 534134500 | Resister Price: $2.99 |
| 28 | 534346729 | Housing Guard Price: $3.33 |
| 29 | 534136401 | Screw Price: $1.99 |
| 30 | 534323500 | Blade Guide Price: $2.99 |
| 31 | 534222403 | Screw Price: $1.99 |
| 32 | 534826800 | Screw Price: $1.99 |
| 33 | 534323429 | Blade Guard Price: $3.33 |
| 34 | 534135215 | Blade Ass'y. Price: $17.99 |
| 35 | 534136200 | Nut Price: $1.99 |
| 36 | 534828400 | Bolt Price: $1.99 |
| 37 | 534156405 | Assist Handle Price: $3.33 |
| 38 | 534828500 | Wing Nut Price: $3.33 |
| 39 | 534954300 | Shield Price: $1.99 |
| 40 | 534135901 | Bolt Price: $1.99 |
| 41 | 534135605 | Insulating Sleeve Price: $3.33 |
| 42 | 534135400 | Clutch Plate Price: $3.33 |
| 43 | 534136300 | Washer Price: $1.99 |
| 44 | 534238900 | Spring Washer Price: $1.99 |
| 45 | 534135500 | Clutch Sleeve Price: $5.99 |
| 46 | 534135305 | Fan Price: $3.33 |
| 47 | 534205301 | Blade Price: $9.99 |
| 48 | 534227800 | Carbon Brush Price: $3.16 |
| 49 | 534228000 | Spring Brush Price: $1.99 |
| 50 | 534227700 | Brush Holder Price: $3.33 |
| 51 | 534450400 | Brush Kit (Inc. 48,49,50) Price: $12.32 |
| 52 | 534228700 | Screw Price: $1.99 |
| 53 | 534207101 | Endbell Ass'y. (Drive) Price: $3.33 |
| 54 | 534228800 | Washer Price: $1.99 |
| 55 | 534227001 | Field Ass'y. Price: $24.99 |
| 56 | 534225122 | Armature Ass'y. Price: $3.33 |
| 57 | 534228802 | Washer Price: $0.99 |
| 58 | 534238903 | Washer Price: $1.99 |
| 59 | 534747002 | Retaining Ring Price: $1.99 |
| 60 | 534227501 | Endbell Ass'y. (Brush) Price: $3.33 |
| 61 | 534226000 | Insulator Price: $3.33 |
| 62 | 534103640 | Brush Insulator Price: $3.33 |
