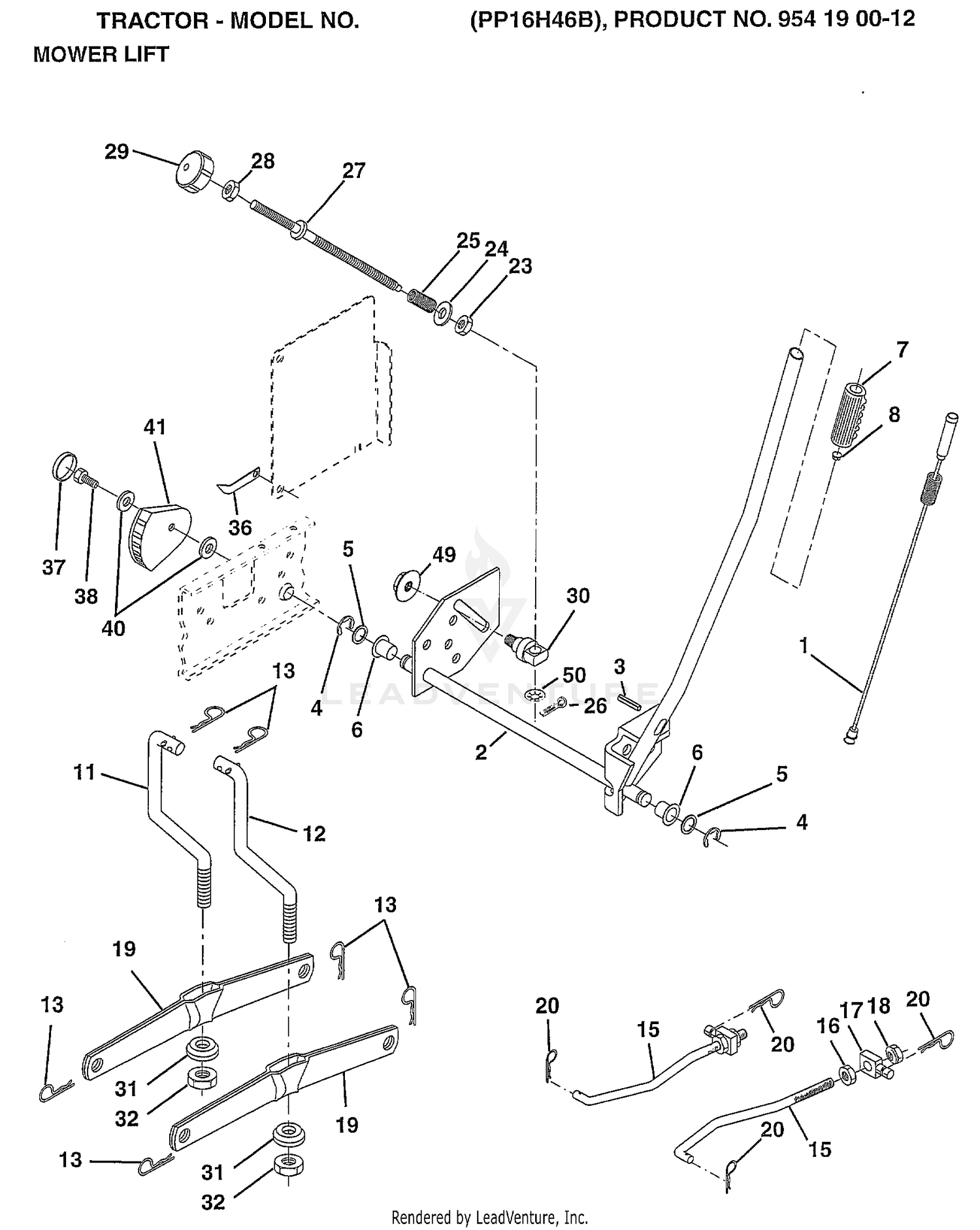

MOWER LIFT

MOWER LIFT

Parts (47)

RefPart NumberDescription
1 159460 WIRE ASM W.SPRING Price: Call Us
3 105767X PIN-GROOVE LT Price: Call Us
3 107-2554 DECAL-PANEL, CONTROL Price: $41.00
4 12000002 SUB= 2225J Price: Call Us
5 120-2244 HOURMETER This part replaces 66-2950. Price: $48.06
5 19211621 WASHER Price: Call Us
6 120183X NYLON BEARING Price: Call Us
6 98-2160 VOLTMETER Price: $100.25
7 109413X GRIP Price: Call Us
7 321-4 SCREW-HH Price: $0.99
8 124526X SUB= 125925X Price: Call Us
8 3290-378 TIE-CABLE Price: $0.79
10 122512X SUB= 532122512 Price: Call Us
10 3296-16 NUT-LOCK, NI Price: $1.39
11 139865 SUB= 918139865 Price: Call Us
11 70-1480 RELAY Price: $105.19
12 139866 SUB= 151140 Price: Call Us
12 3255-7 WASHER-LOCK/EXT Price: $1.39
13 4939M SUB= 85902 Price: Call Us
15 127218 LINK.FRONT Price: Call Us
16 73350800 NUT Price: Call Us
16 83-0040 CONTROL-CHOKE Price: $36.29
17 130171 TRUNION Price: Call Us
17 3296-12 NUT-LOCK, NI Price: $1.29
18 73800800 NUT.LK.W/WSH.1/2. Price: Call Us
18 83-0030 CONTROL-THROTTLE Price: $39.07
19 104-2541 SWITCH ASM This part replaces 88-9830. Price: $36.70
19 139868 ARM SUSP REAR Price: Call Us
20 3146R RETAINER.SPRING Price: Call Us
20 63-8360 KEY-IGNITION Price: $5.29
21 3290-134 SCREW Price: $0.27
23 110807X NUT T Price: Call Us
23 32104-95 SCREW-HWH Price: $0.41
24 19131016 WASHER Price: Call Us
25 2876H SPRING T Price: Call Us
26 76020308 SUB= 3145 Price: Call Us
27 126971X SUB= 532126971 Price: Call Us
28 73350600 NUT Price: Call Us
29 138057 KNOB INF 3/8-16 Price: Call Us
30 150233 TRUNNION Price: Call Us
31 140302 BEARING PVT LH Price: Call Us
32 73540600 NUT.CROWNLOCK.3/8 Price: Call Us
36 155097 POINTER-INDICAT Price: Call Us
38 17490512 SCREW Price: Call Us
40 19112410 WASHER Price: Call Us
41 155098 INDICATOR HEIGHT Price: Call Us
49 145212 NUT.HXFLG.LOCK. Price: Call Us
