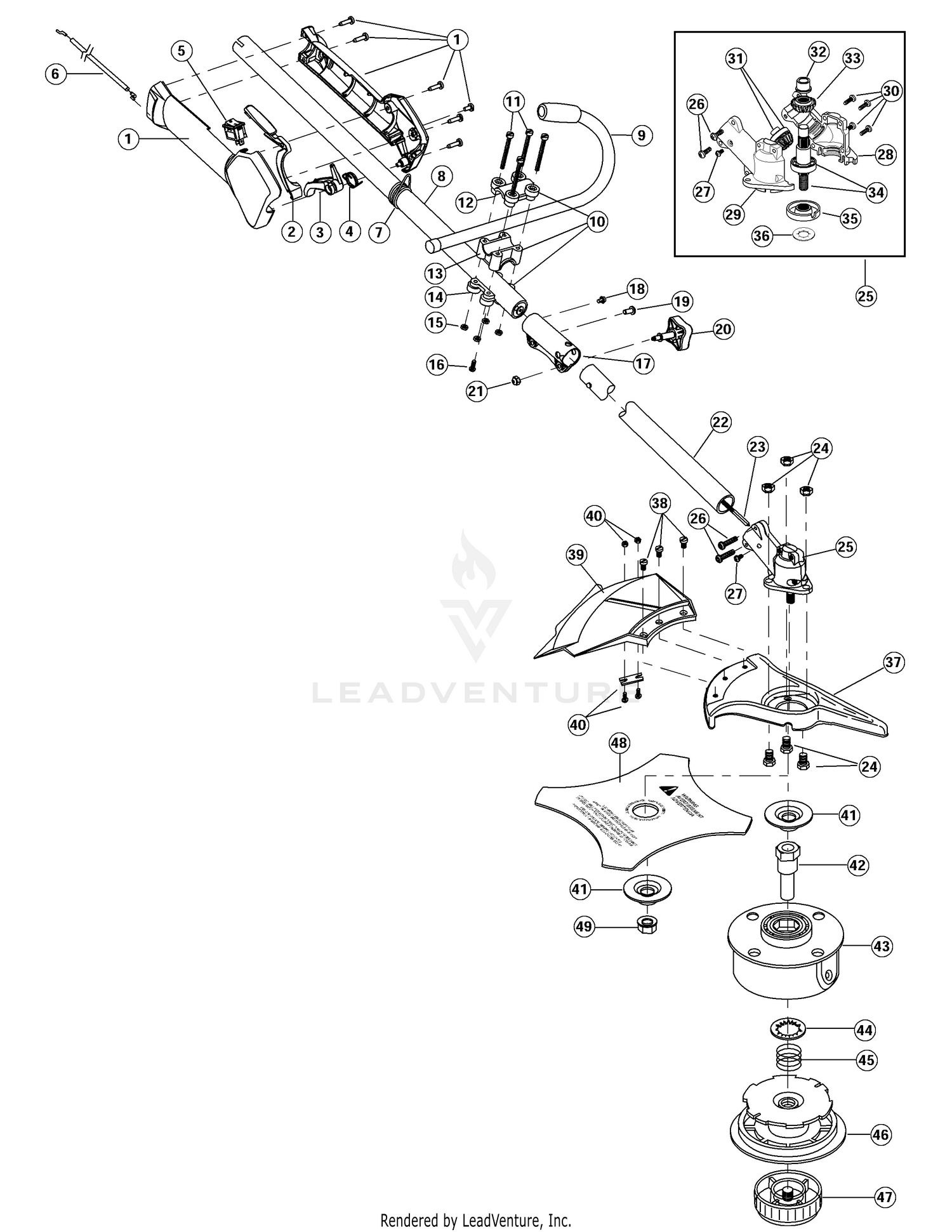

| Ref | Part Number | Description |
|---|
| 1 |
791-00040 |
THROTTLE HOUSING ASSEMBLY Not Available Price: |
| 2 |
791-00041 |
THROTTLE LOCK OUT LEVER RED Not Available Price: |
| 3 |
753-06754 |
THROTTLE TRIGGERBC:MTD This part replaces 791-00042. Price: $6.30 |
| 4 |
791-182690 |
Throttle Trigger Spring Price: $7.01 |
| 5 |
791-182405 |
Switch Assembly Price: $9.29 |
| 6 |
753-04405 |
Throttle Cable Assembly Not Available Price: |
| 7 |
4301A |
SHOULDER STRAP CLAMP Price: $3.06 |
| 7 |
791-610327 |
Harness Clip Price: $28.62 |
| 8 |
753-04236 |
Upper Drive Shaft Housing Assembly Price: $87.52 |
| 9 |
791-180286 |
ASSEMBLYMY, J-HANDLE W/ Not Available Price: |
| 10 |
791-683295 |
Handle Bracket Assembly (includes 11-16) Price: $40.17 |
| 11 |
791-181811 |
Screw Price: $4.05 |
| 12 |
791-181812 |
Upper Handle Clamp Price: $7.65 |
| 13 |
791-181813 |
Middle Handle Clamp Price: $10.65 |
| 14 |
791-181814 |
Lower Handle Clamp Price: $7.77 |
| 15 |
791-181815 |
Nut Price: $3.76 |
| 16 |
791-145569 |
Anti-Rotation Screw Price: $9.02 |
| 17 |
791-181980 |
SPLIT BOOM COUPLING ASSEMBLY RED Not Available Price: |
| 18 |
791-182057 |
Screw Price: $3.93 |
| 19 |
791-181617 |
Bolt Price: $4.59 |
| 20 |
697-00661-9 |
CLICK LINK CLAMP Not Available This part replaces 791-181981. Price: |
| 21 |
791-181886 |
NUT, ELASTIC LOCK Not Available Price: |
| 22 |
791-180804 |
LOWER DRIVE SHAFT HOUSING ASSEMBLY Not Available Price: |
| 23 |
791-613300 |
Lower Flexible Drive Shaft Price: $77.81 |
| 24 |
791-182200 |
Shield Mount Screw Assembly Price: $6.07 |
| 26 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 27 |
791-145569 |
Anti-Rotation Screw Price: $9.02 |
| 28 |
791-182191 |
LEFT HOUSING Not Available Price: |
| 29 |
791-182192 |
RIGHT HOUSING Not Available Price: |
| 30 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 31 |
791-182194 |
Pinion Gear Assembly Price: $27.89 |
| 32 |
791-182199 |
BUSHING-OUTPUT SHA Not Available Price: |
| 33 |
791-182198 |
GEAR-OUTPUT SHAFT Not Available Price: |
| 34 |
791-182197 |
SHAFT-ASSEMBLY-OUTPUT Not Available Price: |
| 35 |
791-182196 |
Blade Driver Price: $19.73 |
| 36 |
N/A |
Palnut |
| 37 |
791-147492 |
Blade Shield/Shield Mount Price: $111.50 |
| 38 |
791-683304 |
Shield Mounting Screw Price: $10.12 |
| 39 |
791-683299 |
GUARD AND BLADE ASSEMBLY Not Available Price: |
| 40 |
791-682061 |
Blade Assembly Price: $12.51 |
| 41 |
791-147490 |
Retaining Washer Price: $10.07 |
| 42 |
791-612483 |
Spool Shaft Price: $49.05 |
| 43 |
791-683301 |
SPOOL ASM-OUTER 3000 NLAUD Not Available Price: |
| 44 |
1772 |
RETAINER This part replaces 791-612026. Price: $5.94 |
| 45 |
791-610636B |
SPRING-SPOOL This part replaces 791-610636. Price: $9.35 |
| 46 |
791-147495 |
Inner Reel Price: $24.36 |
| 47 |
791-180814B |
KNOB ASSEMBLY-BUMP 3000 STRG TRM Not Available This part replaces 791-180814. Price: |
| 49 |
712-04105 |
BLADE LOCK NUT This part replaces 791-181699. Price: $9.97 |
