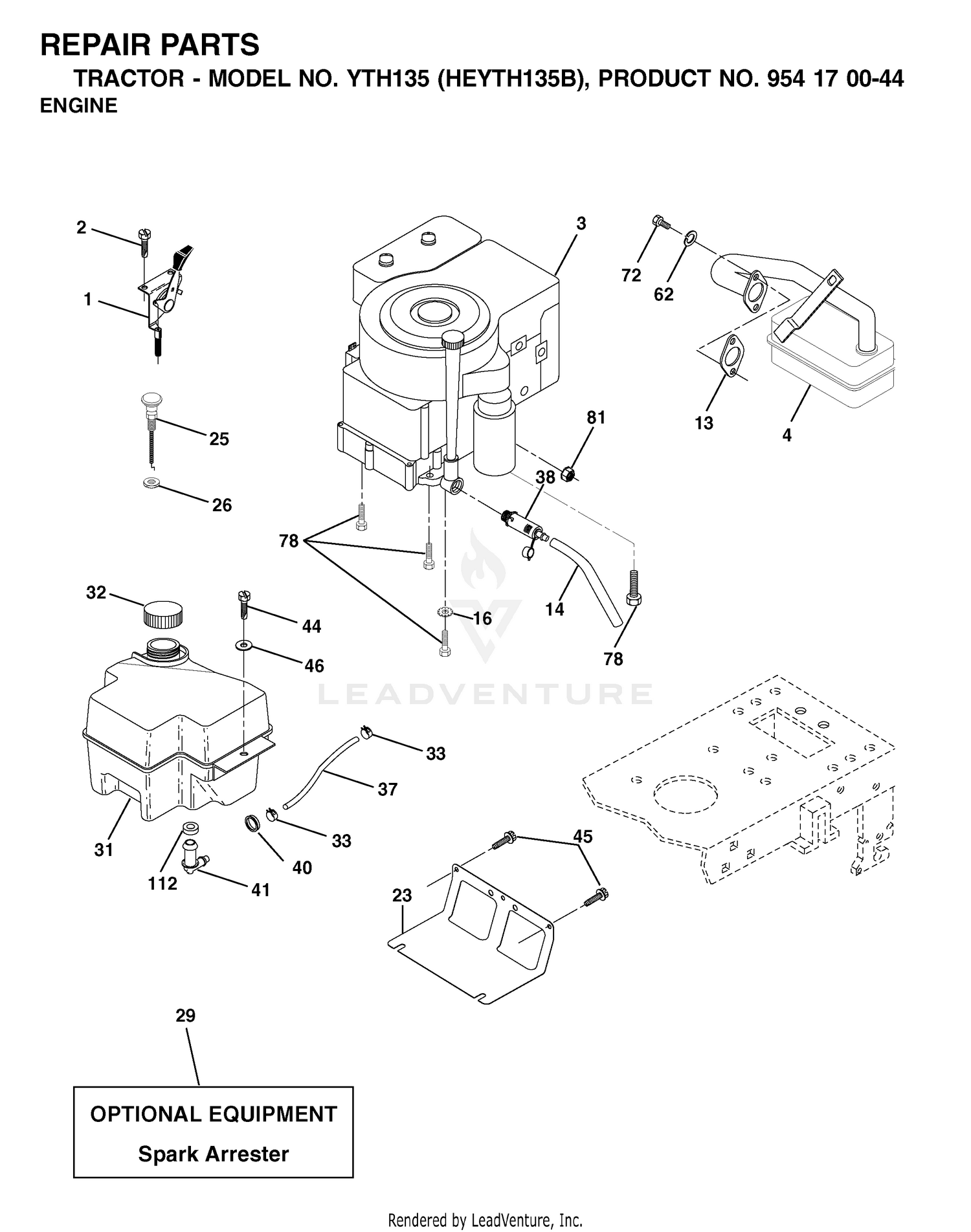

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM Price: $196.85 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) Price: $60.46 |
| 25 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) Price: $66.64 |
| 25 |
115-4121 |
METAL-CRANKSHAFT (STD) Price: $86.06 |
| 25 |
532180945 |
NEEDS DESCRIPTION Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
131-6554 |
GASKET-CASE, BEARING Price: $7.12 |
| 31 |
532180645 |
GAS TANK 2GAL Price: $59.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
112-7046 |
COVER-CASE, BEARING Price: $66.00 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
112-0180 |
SEAL-OIL Price: $58.48 |
| 60 |
112-7037 |
GASKET-COVER, CASE Price: $14.14 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 70 |
127-0441 |
BOLT Price: $0.61 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 80 |
127-0442 |
BOLT Price: $0.61 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
115-4106 |
MAIN BEARING CASE ASM Price: $189.84 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 105 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) Price: $60.46 |
| 105 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 105 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 120 |
115-4107 |
MAIN BEARING CASE ASM Price: $152.88 |
| 130 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 140 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) Price: $60.46 |
| 140 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
