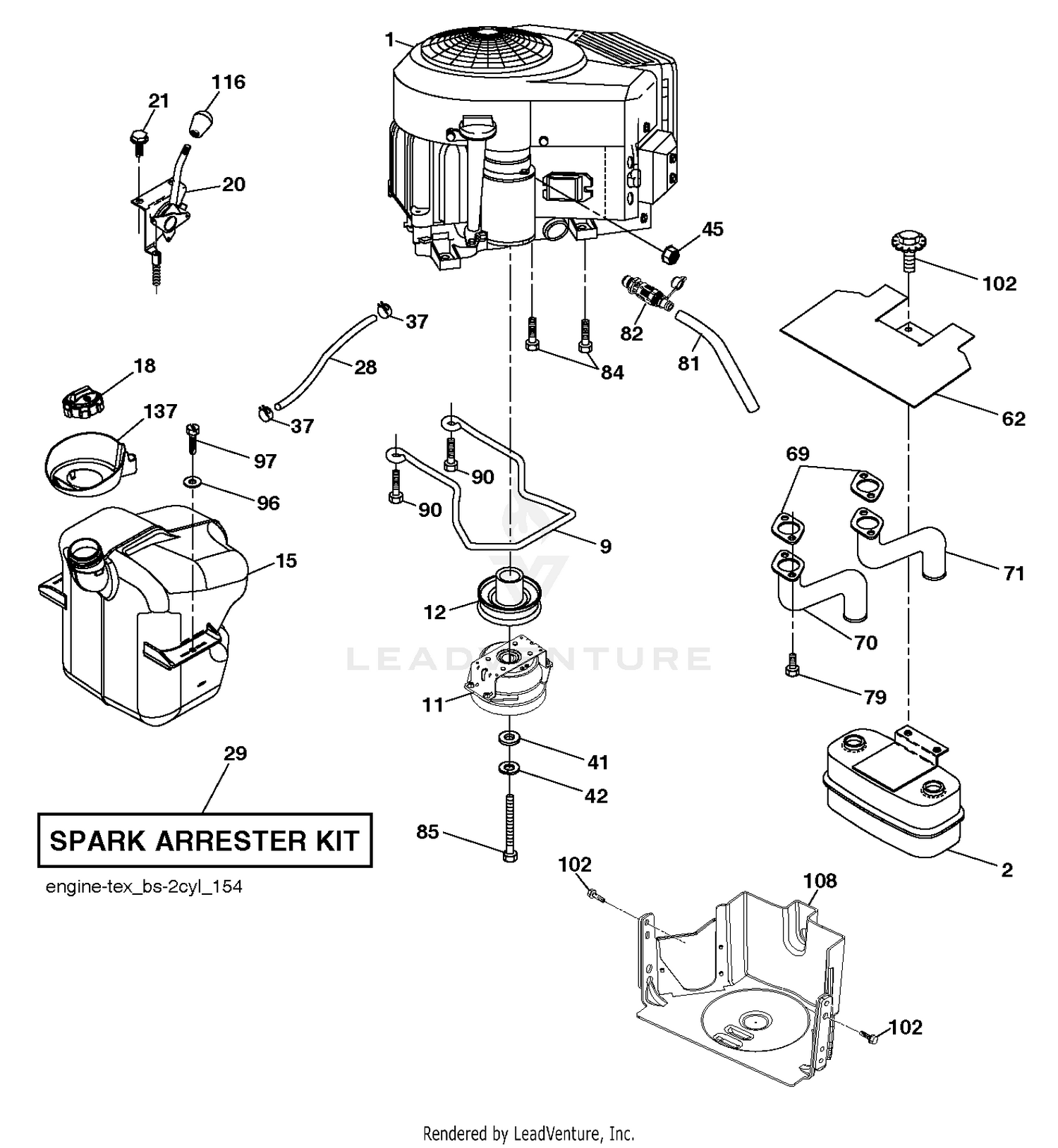

| Ref | Part Number | Description |
|---|
| 1 |
76-5070 |
OIL PUMP ASM Price: $729.22 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 2 |
94-3176 |
VALVE-RELIEF Price: $5.60 |
| 3 |
76-5090 |
SPRING-PISTON Price: $4.54 |
| 4 |
94-3179 |
WASHER-SPRING Price: $1.50 |
| 5 |
76-5100 |
BOLT-SHOULDER Price: $5.63 |
| 7 |
76-5010 |
WASHER-SPRING Price: $0.33 |
| 8 |
94-3124 |
SCREW-HH Price: $1.30 |
| 9 |
596501502 |
Keepers This part replaces 501832601. Price: $9.99 |
| 9 |
94-3178 |
STRAINER Price: $99.33 |
| 10 |
77-3470 |
SCREW Price: $3.37 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 11 |
77-3490 |
SCREW Price: $4.42 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
94-3177 |
PLUG Price: $7.38 |
| 15 |
583507201 |
TANK.ASSY.XTERNAL.FILL.GT2.TEX This part replaces 532435816. Price: $129.99 |
| 18 |
532441462 |
CAP.ASM.FUEL.2.25"TOP.TURN Price: $11.99 |
| 20 |
587242701 |
THROTTLE.PRO.RSTART. 38 Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 108 |
587179510 |
COVER ENGINE PULLEY COVER WITH This part replaces 587179502. Price: $69.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 137 |
532441461 |
SPILL.CUP Price: $7.99 |
