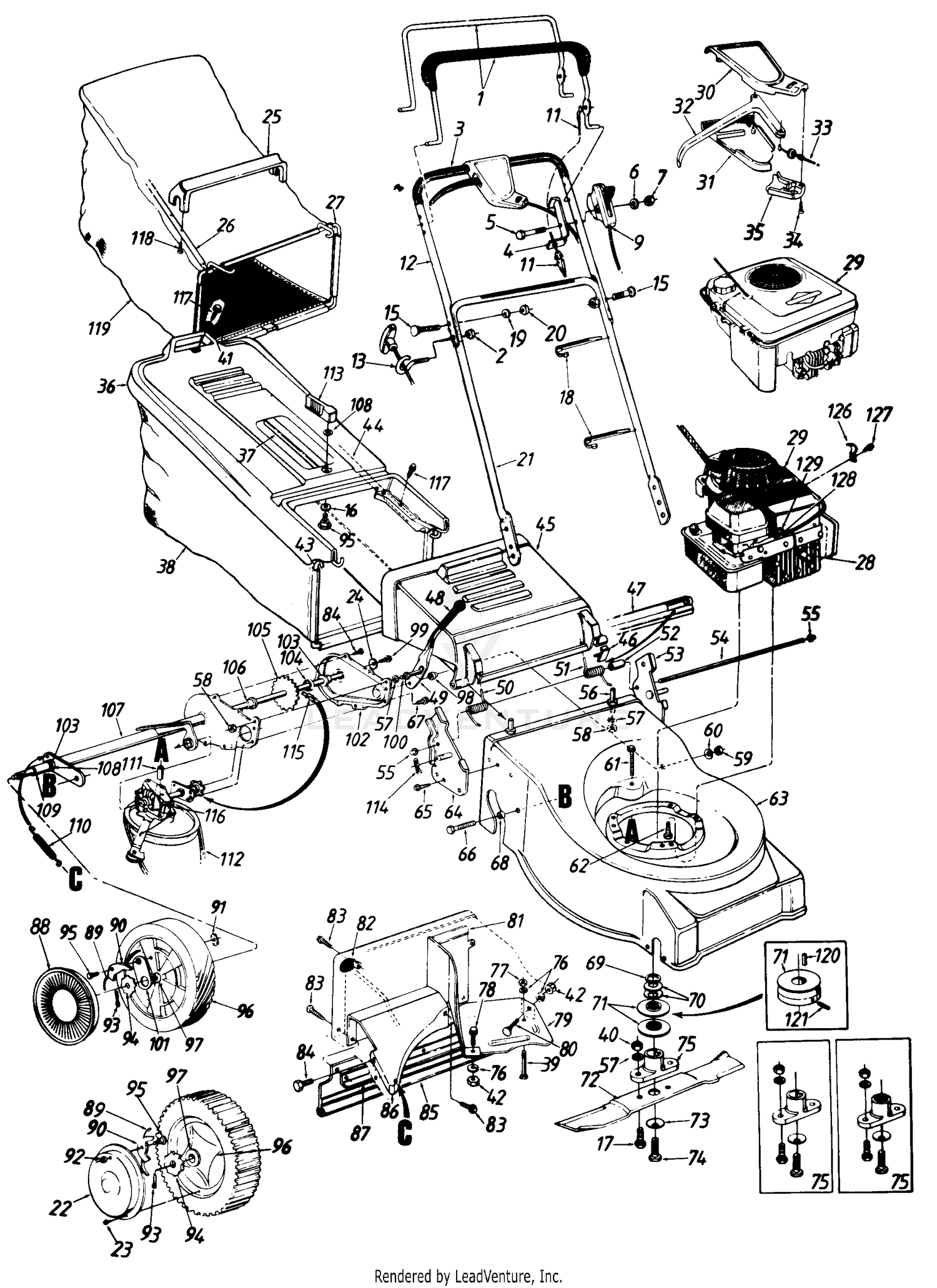

| Ref | Part Number | Description |
|---|
| 2 |
712-0324 |
Hex Lock Nut 1/4-20 Thd. Price: $3.38 |
| 4 |
17174 |
BRACKET-CA Not Available Price: |
| 5 |
710-1216 |
HEX SCREW 1/4-20 x 1.875 Not Available Price: |
| 6 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 7 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 12 |
749-0439E-0637 |
Upper Handle This part replaces 749-0439B. Price: $41.45 |
| 13 |
710-1205 |
Rope Guide Price: $3.53 |
| 15 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 16 |
936-0286 |
Bowed Washer This part replaces 736-0286. Price: $6.01 |
| 17 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 18 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 19 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 20 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 21 |
749-0907B |
Lower Handle This part replaces 749-0504C. Price: $43.95 |
| 22 |
10647 |
HUB CAP Not Available Price: |
| 24 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 29 |
N/A |
Engine |
| 30 |
753-0833 |
Control Cover Half-Lower This part replaces 731-1057. Price: $47.34 |
| 31 |
753-0833 |
Control Cover Half-Lower This part replaces 731-0618A. Price: $47.34 |
| 32 |
731-0620A |
Drive Control This part replaces 731-0620. Price: $13.59 |
| 33 |
946-0711B |
Drive Cable This part replaces 746-0711A. Price: $29.84 |
| 34 |
710-0841 |
Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg. Price: $3.95 |
| 35 |
753-0833 |
Control Cover Half-Lower This part replaces 731-1059. Price: $47.34 |
| 39 |
710-0166A |
Truss Mach. Scr. 1/4-20 x 1.0" Lg. This part replaces 710-0166. Price: $6.24 |
| 40 |
712-0241 |
Hex Nut 3/8-24 Thd.* Price: $3.86 |
| 42 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 45 |
931-0859A |
CHUTE DEFLECTOR Not Available This part replaces 731-0859. Price: |
| 46 |
731-0970B |
DEFLECTOR PLUG Not Available Price: |
| 47 |
731-0858 |
EXTRUSION SEAL Not Available Price: |
| 48 |
720-0223 |
Grip Price: $12.89 |
| 49 |
732-0580 |
SPRING LEVER Not Available Price: |
| 50 |
732-0578A |
TORSION SPRING (RH) Not Available Price: |
| 51 |
732-0577A |
TORSION SPRING Not Available Price: |
| 52 |
750-0566A |
Spacer, .260 x .372 x 1.030 This part replaces 750-0566. Price: $9.17 |
| 53 |
12297A |
BRACKET ASSEMBLY Not Available Price: |
| 54 |
747-0698B |
HINGE PIN Not Available Price: |
| 55 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 56 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 57 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 58 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 59 |
912-0296 |
HEX LOCK NUT 3/8-2 Not Available This part replaces 712-0296. Price: |
| 60 |
736-0105 |
Bell-Wash. .38" I.D. x .88" Price: $3.96 |
| 61 |
710-0778 |
Hex Wash. Hd. Tap Scr. 1/4-20 x 1.5" Lg. Price: $3.90 |
| 62 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16x 1" Lg. Price: $3.75 |
| 64 |
12296B-0637 |
BRACKET ASSEMBLY Not Available This part replaces 12296A. Price: |
| 65 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 66 |
910-1006 |
HEX SCREW 3/8 x 7/8 Not Available This part replaces 710-1006. Price: |
| 67 |
710-0599 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 68 |
950-0736 |
SPACER Not Available This part replaces 750-0736. Price: |
| 70 |
736-0450 |
BELL-WASH 1.01" I.D. Not Available Price: |
| 75 |
753-0484 |
Blade Adapter Kit (Keyed) Price: $21.69 |
| 76 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 77 |
912-0298 |
Hex Jam Nut 1/4-20 Thd. This part replaces 712-0298. Price: $5.38 |
| 78 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. This part replaces 710-0252. Price: $3.65 |
| 79 |
17013 |
BAFFLE-BELT Not Available Price: |
| 80 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 81 |
17006 |
BAFFLE-RR-PANEL Not Available Price: |
| 82 |
731-0931 |
PLUG-CORNER Not Available Price: |
| 83 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 84 |
710-0352 |
Hex B-Tap Scr. 1/4 x .38" Lg. Price: $4.05 |
| 85 |
731-0669 |
Rear Flap Price: $44.10 |
| 86 |
17008-0637 |
BAFFLE-RR-CHUTE Not Available This part replaces 17008. Price: |
| 87 |
14847 |
RETAINING STRIP Not Available Price: |
| 88 |
731-0981C |
Hub Cap This part replaces 731-0981A. Price: $9.24 |
| 89 |
10622B |
Plastic Spring Not Available Price: |
| 90 |
948-0188B |
PAWL - (LH) Not Available This part replaces 748-0188B. Price: |
| 93 |
714-0115 |
Cotter Pin 1/8" Dia. Price: $3.48 |
| 94 |
948-0318 |
Wheel Ratchet This part replaces 748-0318. Price: $8.90 |
| 95 |
738-0137 |
BOLT, SHOULDER, 1/4-20 x 2.65 LG Not Available Price: |
| 96 |
N/A |
Wheel Ass'y. Comp.-Rear |
| 97 |
N/A |
Bearing 1/2" I.D. |
| 98 |
750-0624 |
SHOULDER SPACER Not Available Price: |
| 99 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 100 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 101 |
16855 |
Pawl Plate Price: $5.72 |
| 102 |
17053A |
COVER-CHAIN Not Available Price: |
| 103 |
741-0324A |
Flge Bearing .506 ID x .590 Lg This part replaces 741-0324. Price: $7.07 |
| 104 |
736-0160 |
Fl-Wash. .531" I.D. x .93" Price: $3.90 |
| 105 |
738-0719A |
REAR SHAFT ASSEMBLY Not Available Price: |
| 106 |
741-0522 |
Hex Flange Bearing Price: $7.70 |
| 107 |
17009 |
CHAIN AXLE ASS'. Not Available Price: |
| 108 |
736-0498 |
Internal L-wash. 1/4" I.D. Price: $3.70 |
| 109 |
748-0190 |
Spacer. 513" I.D. Price: $5.48 |
| 110 |
732-0481 |
EXTENSION SPRING Not Available Price: |
| 111 |
950-0589 |
Spacer.325" I.D. This part replaces 750-0589. Price: $5.59 |
| 112 |
954-0346 |
V - Belt This part replaces 754-0346. Price: $26.67 |
| 113 |
920-0224 |
LOCKING KNOB Not Available This part replaces 720-0224. Price: |
| 114 |
714-0104 |
Internal Cotter Pin 5/16" Dia. Price: $3.90 |
| 120 |
714-0122 |
Sq-Key 3/16" x 3/4" Lg. Price: $3.07 |
| 121 |
710-0497 |
Set Scr. #10-32 x .25" Lg. Used w/Keyed Crankshaf Price: Call Us |
