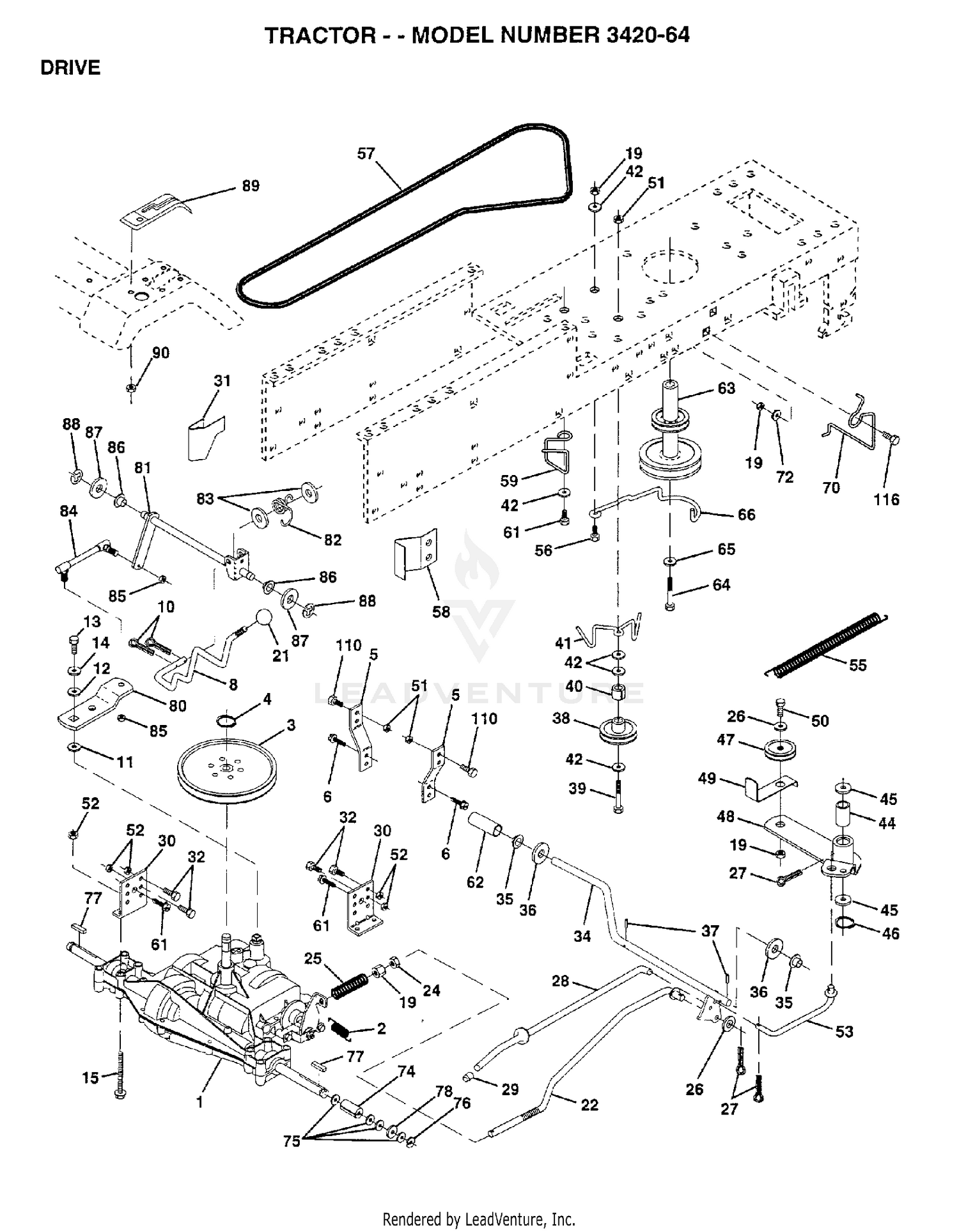

| Ref | Part Number | Description |
|---|
| 1 |
532145605 |
Transaxle 6sp Dana LT Model # 4360-96 (AYP part number) Price: $499.99 |
| 2 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 3 |
532123666 |
PULLEY TRANS Price: $22.99 |
| 4 |
812000028 |
RETAINING RING LT Price: $4.99 |
| 5 |
532121520 |
STRAP TORQUE Price: $3.99 |
| 6 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 8 |
532141003 |
Rod Shift Fender YT (AYP part number) Price: $10.40 |
| 10 |
876020416 |
PIN COTTER Price: $3.99 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 12 |
819151216 |
WASHER Price: Call Us |
| 13 |
871040412 |
BOLT LT Price: $3.99 |
| 14 |
810040400 |
LOCKWASHER Price: $3.99 |
| 15 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 18 |
874780616 |
BOLT Price: $3.99 |
| 19 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 21 |
532106933 |
KNOB T (1/2-HOLE) Price: $3.99 |
| 22 |
532130804 |
ROD BRAKE Price: $17.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
819131316 |
WASHER Price: $2.99 |
| 27 |
876020412 |
COTTER PIN Price: $3.99 |
| 28 |
532145204 |
Rod Brake Parking LT/YT (AYP part number) Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $3.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 31 |
532127275 |
KEEPER BELT LH Price: $3.99 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 34 |
532151128 |
SHAFT Price: $44.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 36 |
819211616 |
WASHER LT Price: $3.99 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) Price: $3.99 |
| 38 |
532123674 |
Idler, Flat (AYP part number) This part replaces 532004859. Price: $17.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T This part replaces 532004470. Price: $3.99 |
| 41 |
532153399 |
BELT GUIDE Price: $7.99 |
| 42 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 44 |
532105706 |
BEARING LT (2 2) Price: $3.99 |
| 45 |
532110812 |
WASHER LT Price: $3.10 |
| 46 |
812000039 |
KLIP RING Price: $3.99 |
| 47 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 48 |
532123789 |
Bellcrank Assembly (Inc. Key No. 54) (AYP part number) Price: $13.07 |
| 49 |
532123205 |
RETAIN BELT Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 51 |
873680600 |
LOCKNUT Price: $1.99 |
| 52 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 56 |
874760620 |
BOLT Price: $3.99 |
| 57 |
532138255 |
BELT, V GROUND DRIVE 95 25 This part replaces 532130801. Price: $27.99 |
| 58 |
532127274 |
KEEPER Price: $2.99 |
| 59 |
532136715 |
Keeper Belt Chassis Span Ctr (AYP part number) This part replaces 532104777. Price: $6.79 |
| 61 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 62 |
532008883 |
PEDAL COVER Price: $3.99 |
| 63 |
532140186 |
PULLEY ENGINE Price: $59.99 |
| 64 |
501606501 |
Speed Clip This part replaces 871170764. Price: $1.99 |
| 65 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 66 |
532129921 |
Keeper Belt Engine LH LT (AYP part number) This part replaces 532153400. Price: $3.99 |
| 70 |
532134683 |
KEEPER BELT ENG Price: $5.99 |
| 72 |
819132012 |
WASHER This part replaces 532061537. Price: $2.99 |
| 74 |
532109502 |
SPACER LT Price: $3.99 |
| 75 |
532121749 |
WASHER Price: $1.99 |
| 76 |
812000001 |
E-RING LT Price: $2.99 |
| 77 |
532123583 |
SQUARE KEY Price: $2.99 |
| 77 |
X-778-1 |
Screw Price: Call Us |
| 78 |
270154 |
Clip Price: Call Us |
| 78 |
532121748 |
WASHER Price: $1.99 |
| 80 |
532131487 |
SHIFT ARM Price: $2.99 |
| 81 |
532161077 |
This part replaces 532136933. Price: $17.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $2.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532132183 |
TIE ROD Price: $37.99 |
| 85 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 532150360. Price: $2.99 |
| 86 |
532071208 |
BUSHING.STEERING.ROD Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $3.99 |
| 88 |
812000008 |
KLIP RING Price: $3.99 |
| 89 |
532139964 |
Console Shift 6 st LT (AYP part number) Price: $13.39 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $3.99 |
| 110 |
874760612 |
BOLT Price: $1.99 |
