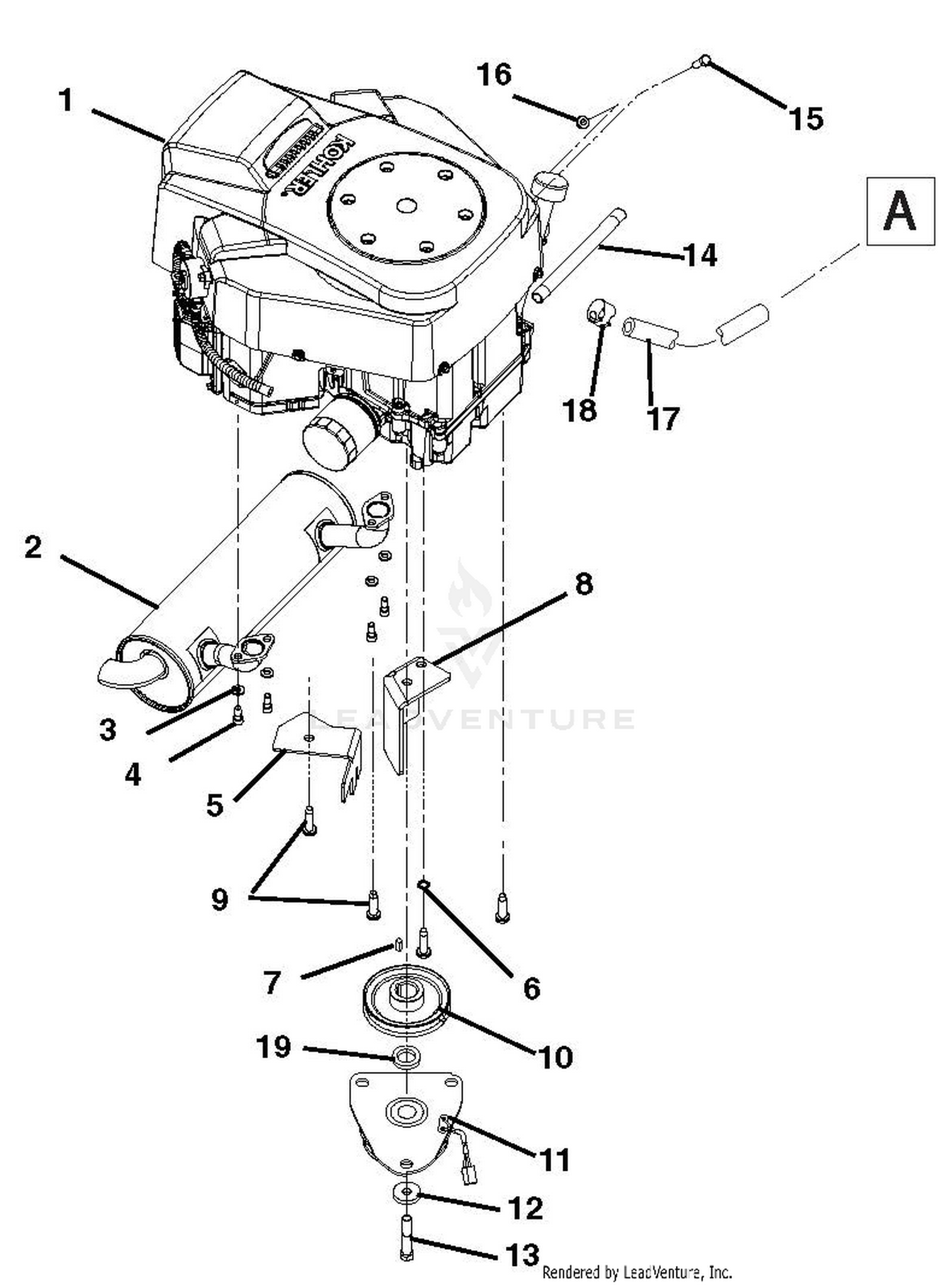

| Ref | Part Number | Description |
|---|
| 2 |
00470400 |
MUFFLER, KOHLER TWIN Price: $191.45 |
| 3 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 4 |
05901827 |
BLT, SHCS .312-18X.75 ZCC This part replaces 05933100. Price: $2.45 |
| 5 |
03772951 |
GUARD, HD CLUTCH WIRE Price: $28.95 |
| 7 |
06602700 |
KEY-SQ .25X.625X.25 SAE 8630 Price: $3.45 |
| 8 |
03766851 |
ANCHOR - OGURA CLUTCH - HD Price: $33.95 |
| 9 |
07000104 |
BLT, TAP .38-16X1.5 PH TRX YZ Price: $3.45 |
| 10 |
07331767 |
PULLEY, 4.50 OD X 1.002 ENGINE This part replaces 07300436. Price: $103.95 |
| 11 |
00200665 |
CLUTCH ASSY, OGURA# GT1A-HU02 Price: $296.95 |
| 12 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 13 |
05900036 |
BLT-HEX .44-20X2.50 G5 YZ EP80 Price: $12.95 |
| 14 |
00588700 |
HOSE, HYD .38-11-0K M6N0-F6J0 Price: $44.95 |
| 15 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 16 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 18 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
