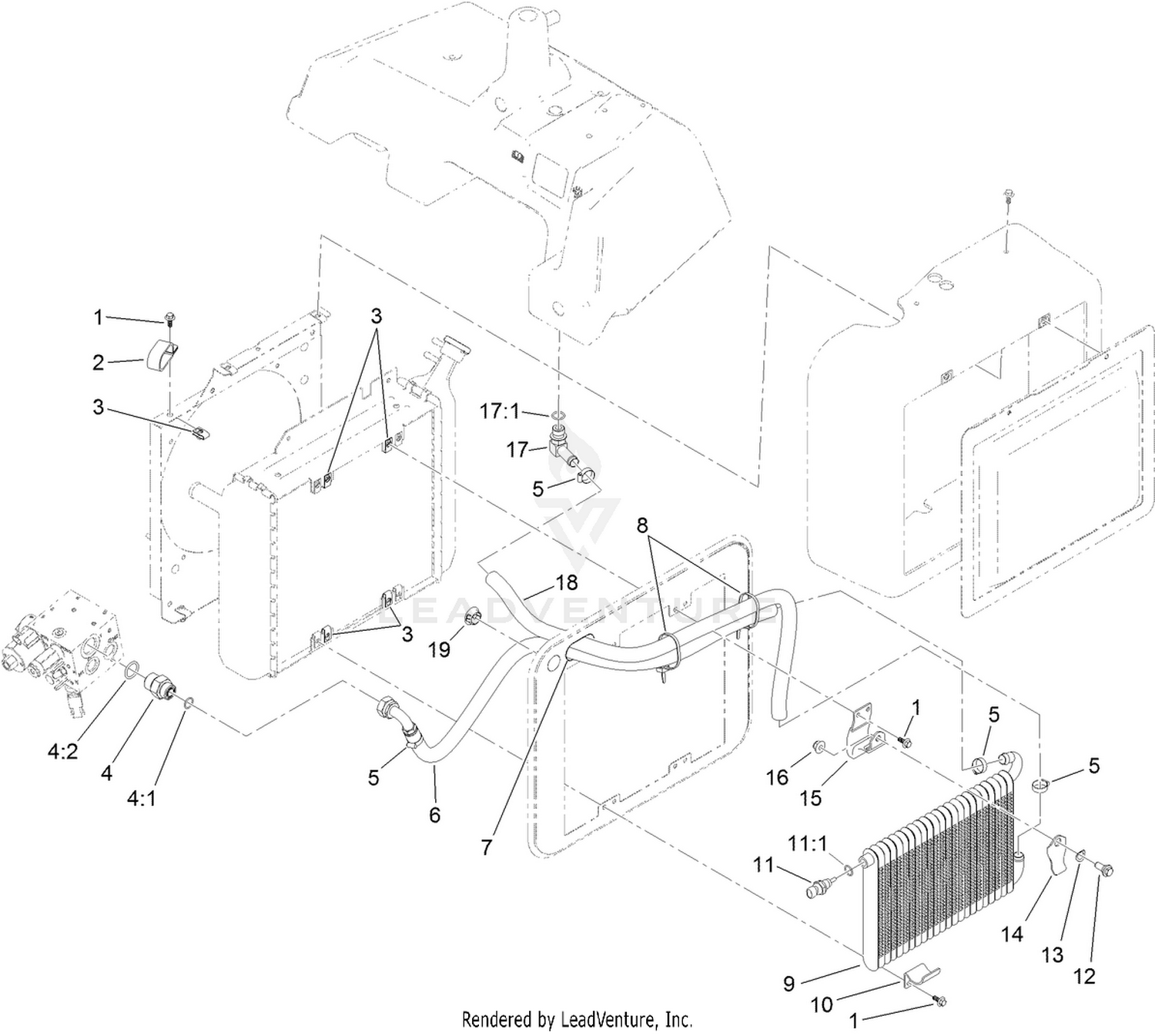

| Ref | Part Number | Description |
|---|
| 1 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 2 |
2412-137 |
CLAMP-R, DOUBLE Price: $5.08 |
| 3 |
107069 |
CLIP Price: $1.79 |
| 4 |
340-8 |
FITTING-STRAIGHT Price: $9.70 |
| 5 |
2412-141 |
CLAMP-DRIVE, WORM Price: $2.40 |
| 6 |
120-1984 |
HYD HOSE ASM Price: $184.42 |
| 7 |
132-3814 |
GROMMET-FIREWALL This part replaces 92-6963. Price: $31.06 |
| 8 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 9 |
117-9305 |
COOLER-OIL Price: $550.87 |
| 10 |
117-9303 |
BRACKET-COOLER, LOWER Price: $42.15 |
| 11 |
110-8829 |
SENDER-TEMPERATURE Price: $80.84 |
| 12 |
94-7582 |
BOLT-SHOULDER Price: $3.09 |
| 13 |
3290-221 |
WASHER-SPRING Price: $3.12 |
| 14 |
117-9343 |
TAB-COOLER Price: $47.82 |
| 15 |
117-9304 |
BRACKET-COOLER, UPPER Price: $47.69 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
92-5086 |
FITTING-ELBOW, 90 DEG Price: $53.77 |
| 18 |
120-1985 |
HOSE-HYD Price: $48.28 |
