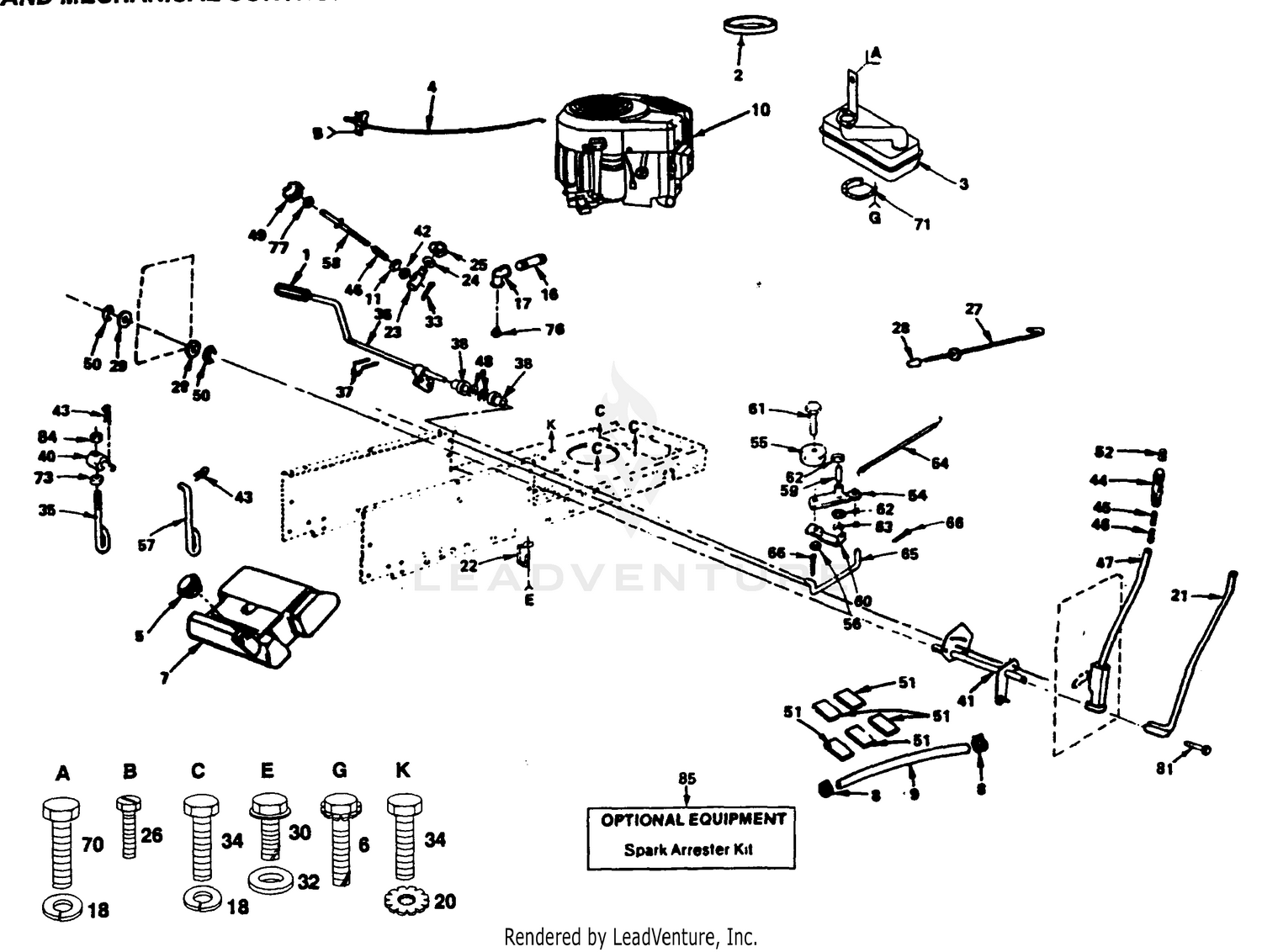

| Ref | Part Number | Description |
|---|
| 1 |
114-5422 |
ROLLER-SHOULDER, PLASTIC Price: $525.86 |
| 1 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 2 |
114-5403 |
SHAFT-ROLLER, FRONT Price: $82.00 |
| 2 |
532127073 |
Strip, Foam (AYP part number) Price: $3.33 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
532124196 |
Muffler (AYP part number) Price: $3.33 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
532121275 |
Control, Throttle (AYP part number) Price: $3.33 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
532123549 |
Cap, Fuel (AYP part number) Price: $11.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532106020 |
Tank, Fuel (AYP part number) Price: $55.00 |
| 8 |
532123487 |
Clamp, Hose (AYP part number) Price: $3.99 |
| 9 |
532007833 |
LINE FUEL 7.5" This part replaces 532124923. Price: $2.99 |
| 10 |
532127522 |
Engine, 14 HP Kohler, Model No. CV145-1436 Price: Call Us |
| 11 |
819131016 |
Washer 13/32 x 5/8 x 16 Gauge (AYP part number) Price: $3.99 |
| 16 |
813280336 |
Pipe Nipple, Standard (AYP part number) Price: Call Us |
| 17 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 18 |
810040500 |
Washer, Lock Heavy Helical Spring (AYP part number) Price: $2.99 |
| 20 |
810040500 |
LOCKWASHER This part replaces 811050500. Price: $2.99 |
| 21 |
532121006 |
Rod Assembly, Lever (AYP part number) Price: $19.99 |
| 22 |
532136715 |
Keeper Belt Chassis Span Ctr (AYP part number) This part replaces 532104777. Price: $6.79 |
| 23 |
532110810 |
Trunnion, Stop, Depth Price: $14.99 |
| 24 |
819151216 |
Washer 15/32 x 3/4 x 16 Gauge (AYP part number) Price: Call Us |
| 25 |
812000037 |
Ring, Klip (AYP part number) Price: $3.99 |
| 26 |
817720410 |
Screw, Hex Thread Cut 1/4-20 x 5/8 (AYP part number) Price: $5.99 |
| 27 |
532133261 |
Rod Brake Parking (AYP part number) This part replaces 532125637. Price: $3.99 |
| 28 |
532071673 |
Cap, Plunger (AYP part number) Price: $3.99 |
| 29 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $3.99 |
| 30 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 32 |
819131316 |
Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number) Price: $2.99 |
| 33 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) Price: $1.99 |
| 34 |
M010208025 |
Screw M8 x 1.25 x 25 mm (AYP part number) Price: Call Us |
| 35 |
532110448 |
Lift, Link, Adjustable (AYP part number) Price: $7.99 |
| 36 |
532122424 |
Shaft, Pedal, Foot (AYP part number) Price: $21.56 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532124963. Price: $3.99 |
| 38 |
532120183 |
Bearing, Nylon (AYP part number) Price: $2.99 |
| 40 |
532110447 |
Trunnion, Lift (AYP part number) Price: $9.99 |
| 41 |
532121000 |
Shaft Assembly, Lift (AYP part number) Price: $119.99 |
| 42 |
532110807 |
Nut, Hex, Special (AYP part number) Price: $3.99 |
| 43 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 44 |
532109413 |
Grip, Handle (AYP part number) Price: $2.99 |
| 45 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 46 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 47 |
532121002 |
Lever Assembly, Hand Kit (AYP part number) Price: $74.99 |
| 48 |
819211616 |
Washer 21/32 x 1 x 16 Gauge (AYP part number) Price: $3.99 |
| 49 |
532121891 |
Handle, Adjust, Lift (AYP part number) Price: $3.99 |
| 50 |
812000022 |
E-Ring (AYP part number) Price: $3.99 |
| 51 |
532106082 |
Pad, Spacer (AYP part number) Price: $2.99 |
| 52 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 54 |
532123789 |
Arm Assembly, Idler (AYP part number) Price: $13.07 |
| 55 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532123766. Price: $22.99 |
| 56 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 57 |
532110029 |
Link, Lift (AYP part number) Price: $3.45 |
| 58 |
532110729 |
Rod, Adjust, Lift (AYP part number) Price: $18.99 |
| 59 |
532105706 |
Bearing (AYP part number) Price: $3.99 |
| 60 |
532123205 |
Retainer, Belt (AYP part number) Price: $3.99 |
| 61 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 62 |
532110812 |
Washer, Hardened (AYP part number) Price: $3.10 |
| 63 |
812000039 |
Ring, Clip (AYP part number) Price: $3.99 |
| 64 |
532105709 |
Spring, Return, Clutch (AYP part number) Price: $7.99 |
| 65 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 66 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 70 |
874760508 |
Bolt, Hex Head 5/16-18 UNC x 1/2 (AYP part number) Price: $3.99 |
| 71 |
532101326 |
Deflector, Muffler (AYP part number) Price: $4.01 |
| 73 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $3.99 |
| 77 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 81 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874780624. Price: $3.99 |
| 84 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873710700. Price: $3.99 |
