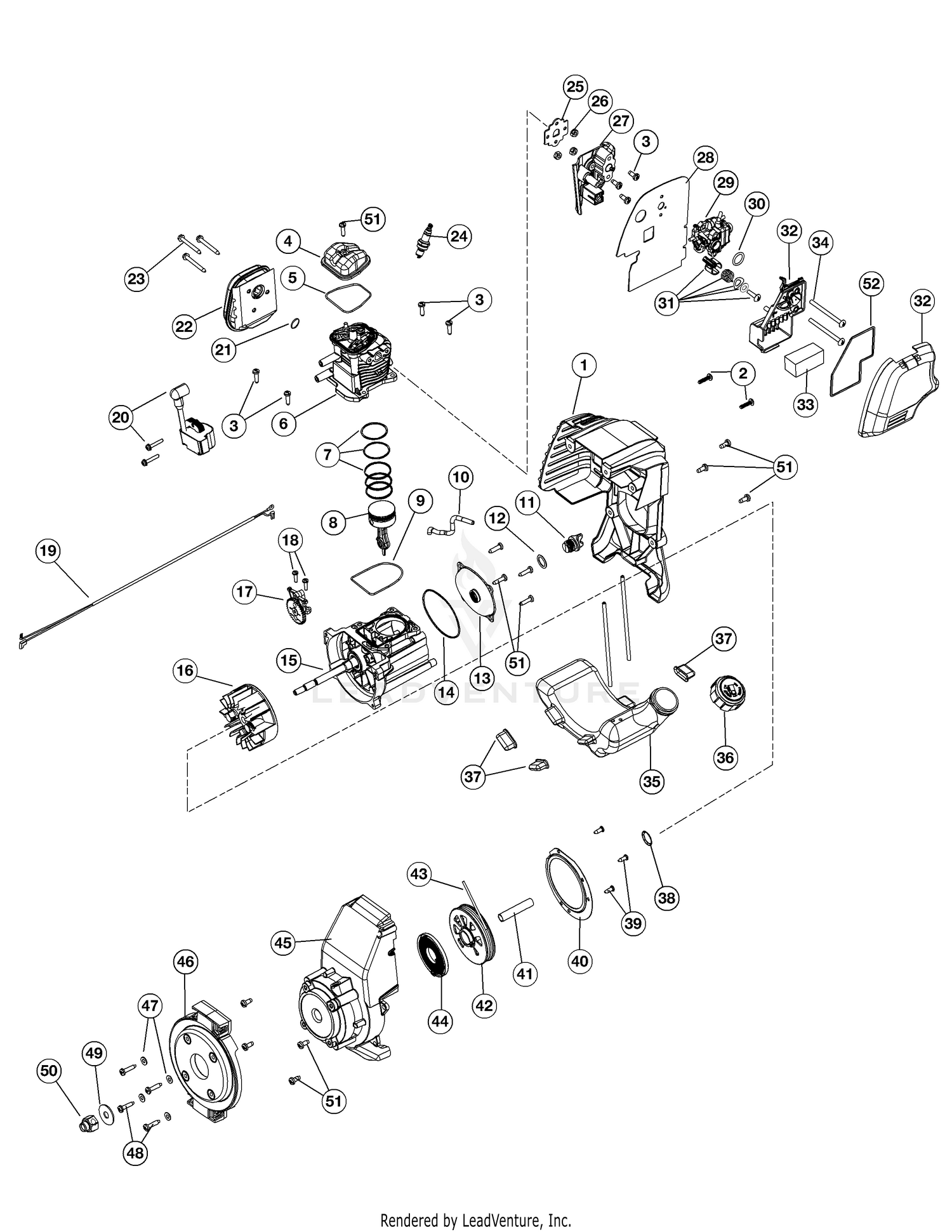

| Ref | Part Number | Description |
|---|
| 1 |
753-05363 |
ENGINE COVER ASSEMBLY Not Available Price: |
| 2 |
710-04194 |
Cover Screw This part replaces 753-04595. Price: $3.66 |
| 3 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 4 |
753-05209 |
ROCKER COVER Not Available Price: |
| 5 |
721-04132 |
O-RING Not Available This part replaces 753-05210. Price: |
| 6 |
753-05228 |
CYLINDER ASSEMBLY Not Available Price: |
| 7 |
753-05229 |
PISTON RING ASSEMBLY Not Available Price: |
| 8 |
753-05230 |
PISTON ASSEMBLY Not Available Price: |
| 9 |
753-05232 |
Cylinder O-Ring Not Available Price: |
| 10 |
791-182379 |
Breather Hose Price: $4.10 |
| 11 |
753-05408 |
Oil Plug (Incl. 5) This part replaces 753-05236. Price: $25.95 |
| 12 |
791-182290 |
Oil Plug O-Ring Price: $4.29 |
| 13 |
753-05237 |
CRANKCASE COVER Not Available Price: |
| 14 |
753-05238 |
Crankcase Cover O-ring Price: $9.20 |
| 15 |
753-05503 |
CRANK CASE ASSEMBLY AC3 Not Available This part replaces 753-05364. Price: |
| 16 |
753-05240 |
Flywheel Assembly Price: $67.61 |
| 17 |
753-05241 |
CAM BRACKET ASSEMBLY Not Available Price: |
| 18 |
710-04584 |
Cam Bracket Screw This part replaces 753-05242. Price: $3.29 |
| 19 |
753-05365 |
LEAD WIRES Not Available Price: |
| 20 |
753-05301 |
Module Assembly This part replaces 753-05243. Price: $99.77 |
| 21 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 22 |
753-05245 |
Muffler Assembly (includes 21 & 23) Price: $81.50 |
| 23 |
710-04809 |
SCREW M5 x 44MM This part replaces 753-05246. Price: $2.83 |
| 24 |
794-00082 |
Spark Plug This part replaces 753-05255. Price: $6.35 |
| 25 |
753-05247 |
GASKET/INSULATOR Not Available Price: |
| 26 |
712-04099 |
Nut This part replaces 753-05248. Price: $5.94 |
| 27 |
753-05249 |
Insulator (includes 28) Not Available Price: |
| 28 |
753-05366 |
Carburetor Gasket Price: $17.21 |
| 29 |
753-05367 |
CARBURETOR W/PRIME Not Available Price: |
| 30 |
791-181751 |
O-Ring Price: $3.92 |
| 31 |
753-05368 |
THROTTLE LEVER Not Available Price: |
| 32 |
753-05302 |
AIR CLEANER COVER ASSEMBLY Not Available Price: |
| 33 |
753-05254 |
Air Filter Price: $4.88 |
| 34 |
710-04517 |
Screw This part replaces 753-05253. Price: $4.71 |
| 35 |
753-05256 |
Fuel Tank Assembly w/Fuel Lines (includes 36) Price: $47.70 |
| 36 |
753-1229 |
Fuel Cap Price: $19.90 |
| 37 |
753-05259 |
Fuel Tank Pads Price: $5.72 |
| 38 |
712-04096 |
PUSH NUT Not Available This part replaces 753-05260. Price: |
| 39 |
1755 |
Screw This part replaces 753-1202. Price: $3.37 |
| 40 |
753-05074 |
PLATE:PRESS:4 CY:AST Not Available Price: |
| 41 |
750-04704 |
SPACER Not Available This part replaces 753-05369. Price: |
| 42 |
753-05386 |
STARTER ASSEMBLY Not Available Price: |
| 43 |
791-182661 |
ROPE, STARTER .112 Not Available Price: |
| 44 |
753-04286 |
Recoil Spring Price: $24.35 |
| 45 |
753-05370 |
STARTER HOUSING ASSEMBLY Not Available This part replaces 753-05387. Price: |
| 46 |
753-04809 |
PLATE ASSEMBLY: Not Available Price: |
| 47 |
791-182409 |
Washer Price: $4.04 |
| 48 |
710-04215A |
Screw This part replaces 753-04755. Price: $4.09 |
| 49 |
9162-1 |
Washer This part replaces 791-182396. Price: $3.91 |
| 50 |
791-181524 |
NUT, DRIVE IMPELLE Not Available Price: |
| 51 |
710-04604A |
SCREW M5X0.8 This part replaces 753-05377. Price: $3.63 |
| 52 |
753-05512 |
AIR CLEANER GASKET Not Available Price: |
