| Ref | Part Number | Description |
|---|
| 1 |
322-10 |
SCREW-HH Price: $0.70 |
| 1 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
532123436 |
ROD,PARK BRAKE Price: $4.99 |
| 3 |
13-2970 |
BUSHING Price: $182.26 |
| 3 |
532123437 |
BRKT,PARK BRAKE Price: $4.46 |
| 4 |
13-2800 |
SHEAVE Price: $961.42 |
| 4 |
532008156 |
FOOT PEDAL COVER Price: $2.64 |
| 5 |
13-2240 |
KEY-SQUARE Price: $14.31 |
| 5 |
532122504 |
BRKT,CLU PEDAL LH Price: $3.08 |
| 6 |
13-3790 |
FAN SHAFT Price: $671.39 |
| 6 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
3217-7 |
NUT-HEX Price: $0.28 |
| 8 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 9 |
13-2810 |
SQUARE KEY Price: $31.13 |
| 9 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 10 |
13-3350-01 |
MOUNTING BRKT This part replaces 13-3350. Price: $59.51 |
| 10 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 |
532123543 |
ROD,FRT BRAKE Price: $8.38 |
| 11 |
67-5360 |
DECAL-DANGER This part replaces 13-6470. Price: $14.99 |
| 12 |
13-3850-01 |
BOOT-BLOWER This part replaces 13-3850. Price: $344.08 |
| 12 |
532139933 |
CLUTCH/BRAKE PEDAL ASSY Price: $21.38 |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 13 |
532123394 |
ROD,CLUTCH Price: $7.99 |
| 14 |
321-2 |
SCREW-HH Price: $2.79 |
| 14 |
532121978 |
BRKT,LIFT SHAFT Price: $2.38 |
| 15 |
323-7 |
SCREW-HH Price: $0.65 |
| 15 |
532133332 |
ARM, BRAKE ASMBLY Price: $6.71 |
| 16 |
3244-14 |
SCREW-SET, SQH Price: $7.19 |
| 16 |
819251816 |
WASHER T Price: $4.99 |
| 17 |
3218-5 |
NUT-JAM Price: $0.27 |
| 17 |
812000034 |
Ring, Klip Truarc #5304-75 Price: $2.99 |
| 18 |
532151332 |
SPRING, BRAKE ROD Price: $4.99 |
| 19 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 20 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 21 |
532131461 |
CLUTCH KIT This part replaces 532131460. Price: $13.99 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
532144585 |
TRUNNION, LEFT Price: $8.99 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
325-6 |
SCREW-HH Price: $1.42 |
| 24 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 25 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 25 |
56-6220 |
BEARING This part replaces 251-243. Price: $122.98 |
| 26 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 26 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 27 |
3217-9 |
NUT-HH Price: $0.37 |
| 27 |
532127369 |
LINK.MOWER.REAR Price: $9.99 |
| 28 |
3247-2 |
SCREW-SET, HSH Price: $0.68 |
| 28 |
532140776 |

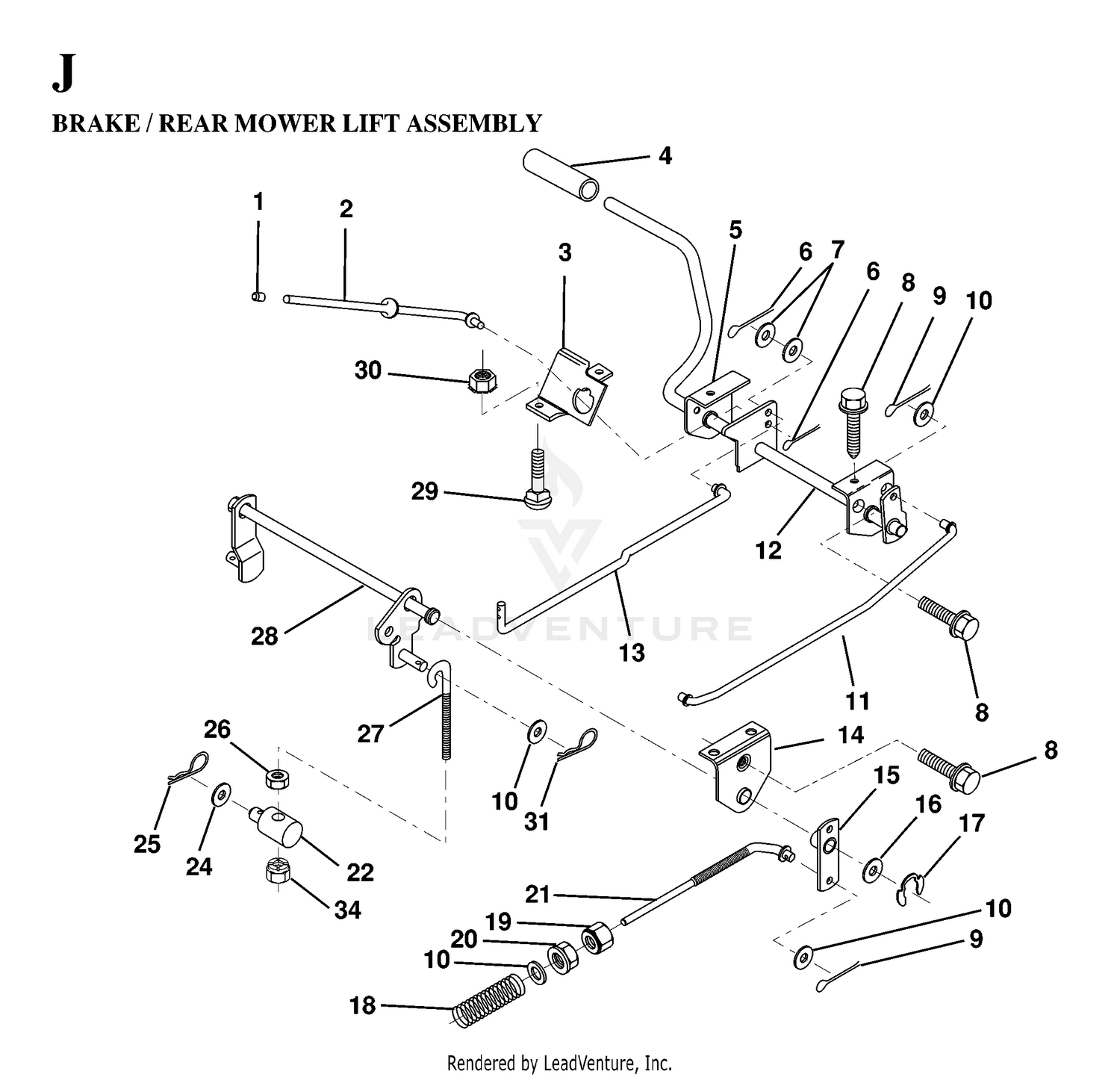

REAR MOWER LIFT ASSY Price: $40.26 |
| 29 |
251-233 |
DISCONTINUED Price: Call Us |
| 29 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 30 |
13-1420-01 |
COVER-INSPECTION This part replaces 13-1420. Price: $31.70 |
| 30 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 31 |
32103-12 |
NUT-WING Price: $1.15 |
| 31 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 32 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 33 |
119-6263 |
BLOWER AND THROAT ASM This part replaces 13-6280. Price: $7,479.09 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 35 |
13-6390-01 |
HANDLE-FLAP This part replaces 13-6390. Price: $134.01 |
| 36 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 38 |
13-6360 |
ROD-LIFT, FLAP Price: $118.60 |
| 39 |
3218-6 |
NUT-JAM Price: $0.61 |
| 40 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 41 |
323-9 |
SCREW-HH Price: $1.29 |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 43 |
321-3 |
SCREW-HH Price: $0.28 |
| 44 |
13-4760 |
DISCONTINUED Price: Call Us |
| 45 |
13-3130 |
END-FLAP Price: $26.55 |
| 46 |
321-5 |
SCREW-HH Price: $0.22 |
| 47 |
13-4700 |
LOWER FLAP ASM Price: $1,182.39 |
| 48 |
13-4560-03 |
WEIGHT-FLAP This part replaces 13-4560. Price: $25.30 |
| 49 |
321-8 |
SCREW-HH Price: $0.34 |
| 50 |
13-1390-01 |
RETAINER-FLAP This part replaces 13-1390. Price: $96.90 |
| 51 |
3217-5 |
NUT-HEX Price: $0.25 |
| 52 |
322-1 |
SCREW-HH Price: $0.22 |
| 53 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 54 |
13-4800-01 |
BELT GUARD WA This part replaces 13-4800. Price: $1,224.67 |
| 55 |
321-4 |
SCREW-HH Price: $0.99 |
| 56 |
121-2839 |
DECAL-CAUTION This part replaces 13-6410. Price: $25.19 |
| 57 |
13-2640 |
V-BELT, ENGINE FAN Price: $355.29 |
