| Ref | Part Number | Description |
|---|
| 1 |
516007502 |

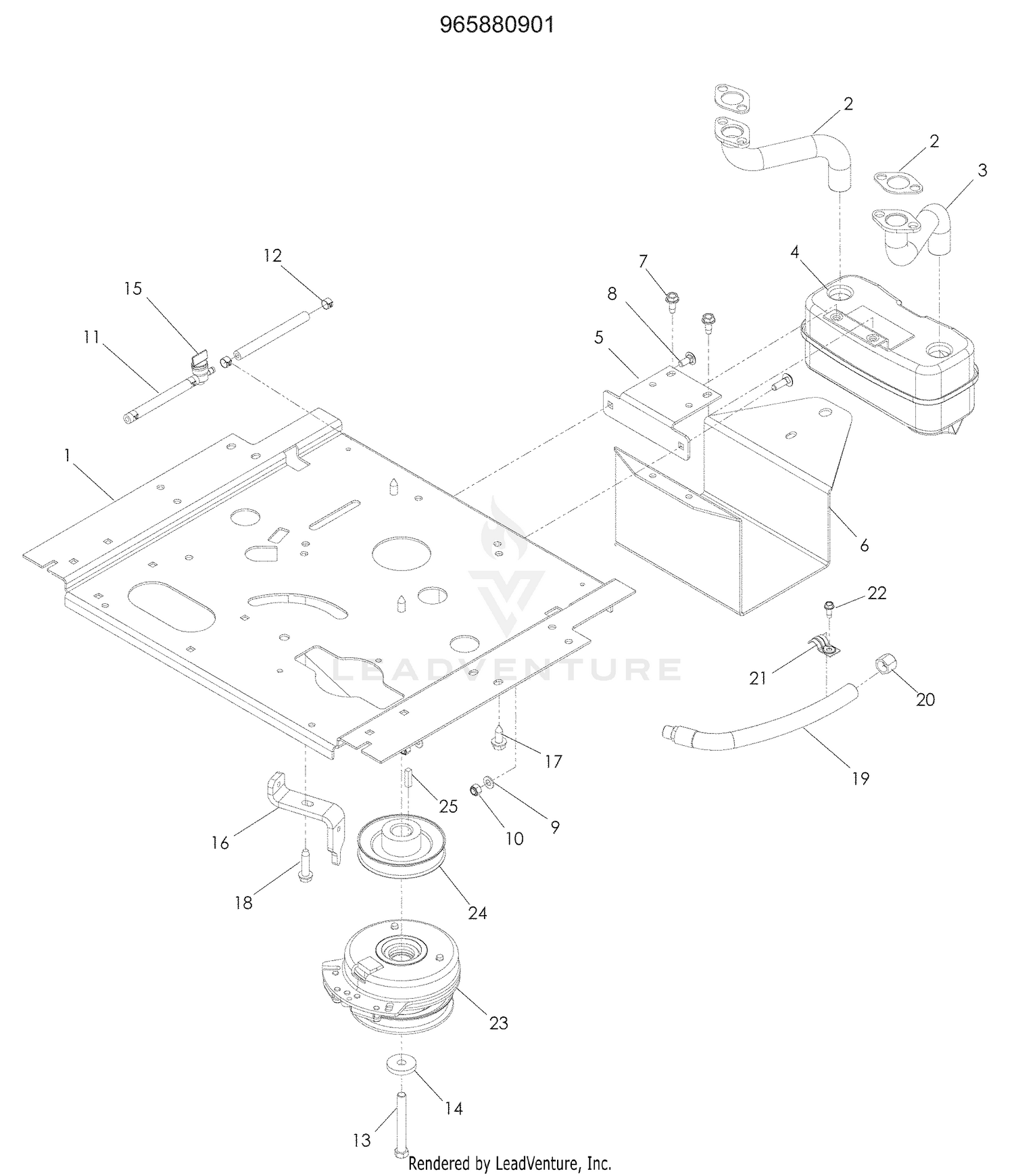

PLATE, ENGINE, BLACK Price: $166.99 |
| 1 |
67-3160 |
ROCKER ARM Price: $85.24 |
| 2 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 2 |
67-3230 |
DISCONTINUED Price: Call Us |
| 3 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 3 |
67-3240 |
SNAP RING Price: $0.87 |
| 4 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 4 |
67-3210 |
ADJUSTING SCREW Price: $10.58 |
| 5 |
581886702 |
BRACKET MUFFLER MS431BLK This part replaces 510260402. Price: $19.99 |
| 5 |
67-3150 |
PUSH ROD Price: $16.61 |
| 6 |
510260502 |
GUARD, MUFFLER, BLACK Price: $54.99 |
| 6 |
67-3120 |
TAPPET Price: $39.70 |
| 7 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 7 |
67-2910 |
GEAR Price: $205.68 |
| 8 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 8 |
75-5010 |
BRG SET STD - CONN ROD Price: $93.75 |
| 9 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 9 |
67-2850 |
CONNECTING ROD ASSEMBLY Price: $282.63 |
| 10 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 10 |
75-5080 |
PISTON & PIN SET - STD Price: $332.33 |
| 11 |
587044805 |
HOSE.1/4".LOW.PERM.FUEL.LN.5" This part replaces 539110425. Price: $2.99 |
| 11 |
75-5050 |
RING SET - PISTON STD Price: $160.77 |
| 12 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 12 |
67-2860 |
BOLT Price: $10.69 |
| 13 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR This part replaces 539976944. Price: $6.99 |
| 13 |
67-2970 |
FLYWHEEL ASSY Price: $1,494.72 |
| 14 |
532126197 |
WASHER This part replaces 539110064. Price: $6.99 |
| 14 |
67-2990 |
DISCONTINUED Price: Call Us |
| 15 |
539916325 |
FUEL VALVE Price: $9.99 |
| 15 |
67-2980 |
RING GEAR Price: $393.68 |
| 16 |
522459702 |
STOP, CLUTCH BLK Price: $27.99 |
| 16 |
92-0845 |
CRANKSHAFT This part replaces 67-2920. Price: $3,048.45 |
| 17 |
42-9590 |
CONN ROD NUT Price: $10.19 |
| 17 |
817120616 |
SCREW 3/8-16X1 This part replaces 532120616. Price: $4.99 |
| 18 |
539110025 |
BOLT 3/8-16 X 1 1/2 ZINC CLEAR Price: $3.99 |
| 18 |
56-0480 |
WOODRUFF KEY Price: $3.88 |
| 19 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 19 |
67-2930 |
CRANKSHAFT PULLEY Price: $752.90 |
| 20 |
539101364 |
DRAIN CAP Price: $5.99 |
| 20 |
67-2950 |
DISCONTINUED Price: Call Us |
| 21 |
539101363 |
CLAMP Price: $2.99 |
| 21 |
67-2960 |
LOCKWASHER Price: $1.16 |
| 22 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 22 |
67-2940 |
DISCONTINUED Price: Call Us |
| 23 |
505287301 |
CLUTCH, 105 FT-LBS Price: $249.99 |
| 23 |
67-4160 |
GASKET This part replaces 67-4310. Price: $4.78 |
| 24 |
539109639 |
PULLEY Price: $36.99 |
| 24 |
75-5110 |
DISCONTINUED Price: Call Us |
| 25 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 25 |
539105308 |
KEY 1/4 SQ X 1.0 Price: $3.99 |
| 26 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 27 |
539108199 |
EXHAUST GASKET - KAW Price: $6.99 |
| 28 |
67-3130 |
INTAKE VALVE Price: $61.71 |
| 29 |
67-3140 |
EXHAUST VALVE Price: $61.97 |
| 30 |
92-1961 |
VALVE SEAL This part replaces 42-7870. Price: $14.93 |
| 31 |
67-3110 |
SPRING Price: $7.88 |
| 32 |
67-3100 |
RETAINER Price: $7.92 |
| 33 |
42-7860 |
RET LOCK MD 016483 Price: $8.42 |
| 34 |
67-3180 |
CAP Price: $9.39 |
| 35 |
67-3200 |
ROCKER STAY Price: $31.11 |
| 37 |
67-3220 |
PIN Price: $1.13 |
| 38 |
67-3190 |
DISCONTINUED Price: Call Us |
| 39 |
42-9660 |
WASHER Price: $2.50 |
| 40 |
67-3170 |
SPRING Price: $2.87 |
| 41 |
67-3260 |
WASHER Price: $1.58 |
| 42 |
33114-060 |
SCREW-HH This part replaces 42-9510. Price: $0.88 |
| 43 |
67-3250 |
ROCKER STRAY BOLT Price: $9.00 |
| 44 |
43-3160 |
ADJ SCREW MM 409167 Price: $2.18 |
| 45 |
75-5120 |
DISCONTINUED Price: Call Us |
| 46 |
43-5960 |
DISCONTINUED Price: Call Us |
