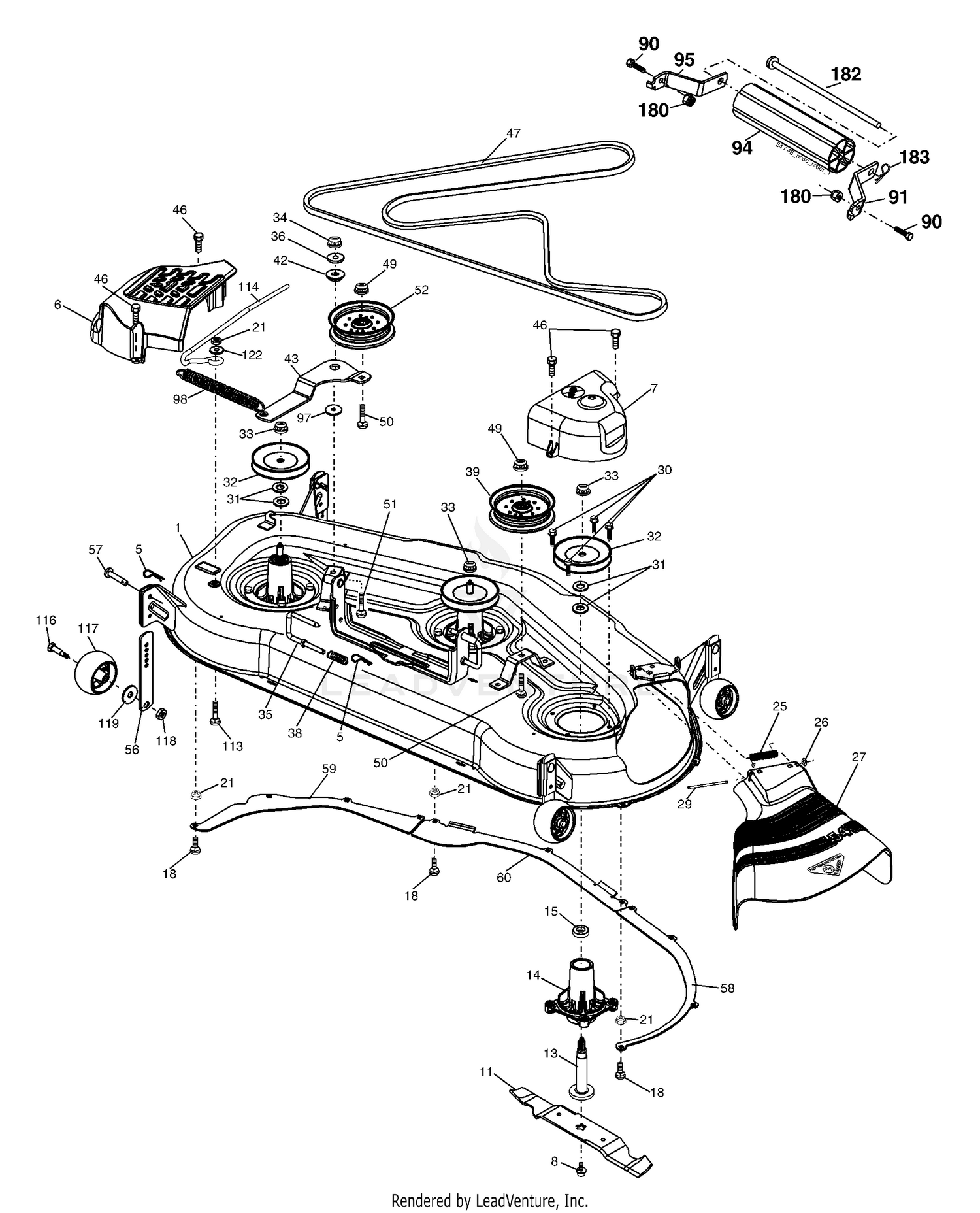

| Ref | Part Number | Description |
|---|
| 1 |
187295 |
Deck Weldment Mower Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
187297 |
Cover Mandrel LH Price: Call Us |
| 7 |
188187 |
Cover Mandrel RH Price: Call Us |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 10 |
98-9614 |
CYLINDER HEAD COVER ASM Price: $256.63 |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 17 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 20 |
98-9615 |
GASKET-COVER, HEAD Price: $20.34 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
187257X428 |
Deflector Shield Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 30 |
98-9492 |
JOINT-PIPE, BREATHER Price: $9.68 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 34 |
73680600 |
Nut Price: Call Us |
| 35 |
188635 |
Pin Suspension Rear Price: Call Us |
| 36 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 38 |
188657 |
Spring Compression Price: Call Us |
| 39 |
187284 |
Pulley, Idler, Stationary Price: Call Us |
| 40 |
98-9488 |
PLATE-ELEMENT, BREATHER Price: $1.33 |
| 42 |
122052X |
Spacer, Retainer Price: Call Us |
| 43 |
187278 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
191273 |
V-Belt, Mower Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
72110616 |
Bolt, Carr. 3/8-16 x 2 Price: Call Us |
| 50 |
98-9489 |
PLATE-ELEMENT, BREATHER Price: $7.89 |
| 51 |
72110610 |
Bolt Price: Call Us |
| 52 |
188460 |
Pulley Idler Clutching Price: Call Us |
| 56 |
155986 |
Bar Pnt Adj. Price: Call Us |
| 57 |
156941 |
Pin Head Rivet Price: Call Us |
| 58 |
187342 |
Baffle Right Price: Call Us |
| 59 |
187344 |
Baffle Left Price: Call Us |
| 60 |
187607 |
Baffle Center Price: Call Us |
| 60 |
98-9493 |
ELEMENT-BREATHER Price: $6.10 |
| 70 |
98-9490 |
SHIELD-OIL, BREATHER Price: $1.28 |
| 80 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 90 |
74760516 |
Bolt Hex HD 5/16-18 UNC x 1 Price: Call Us |
| 90 |
98-9455 |
NUT-CAP Price: $4.77 |
| 91 |
180535 |
Bracket Nose Roller RH Price: Call Us |
| 94 |
176066 |
Roller Nose Price: Call Us |
| 95 |
180534 |
Bracket Noseroller LH Price: Call Us |
| 97 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 98 |
187282 |
Spring Clutch Drive Price: Call Us |
| 100 |
98-9454 |
GASKET Price: $1.43 |
| 110 |
107-9075 |
PLUG-FILLER, OIL Price: $7.25 |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
187556 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
99-3446 |
O-RING Price: $7.11 |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 130 |
99-8349 |
EXTENSION-FILL, OIL Price: $107.00 |
| 180 |
73800500 |
Nut Lock HX w/Ins 5/16-18 UNC Price: Call Us |
| 182 |
179127 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
