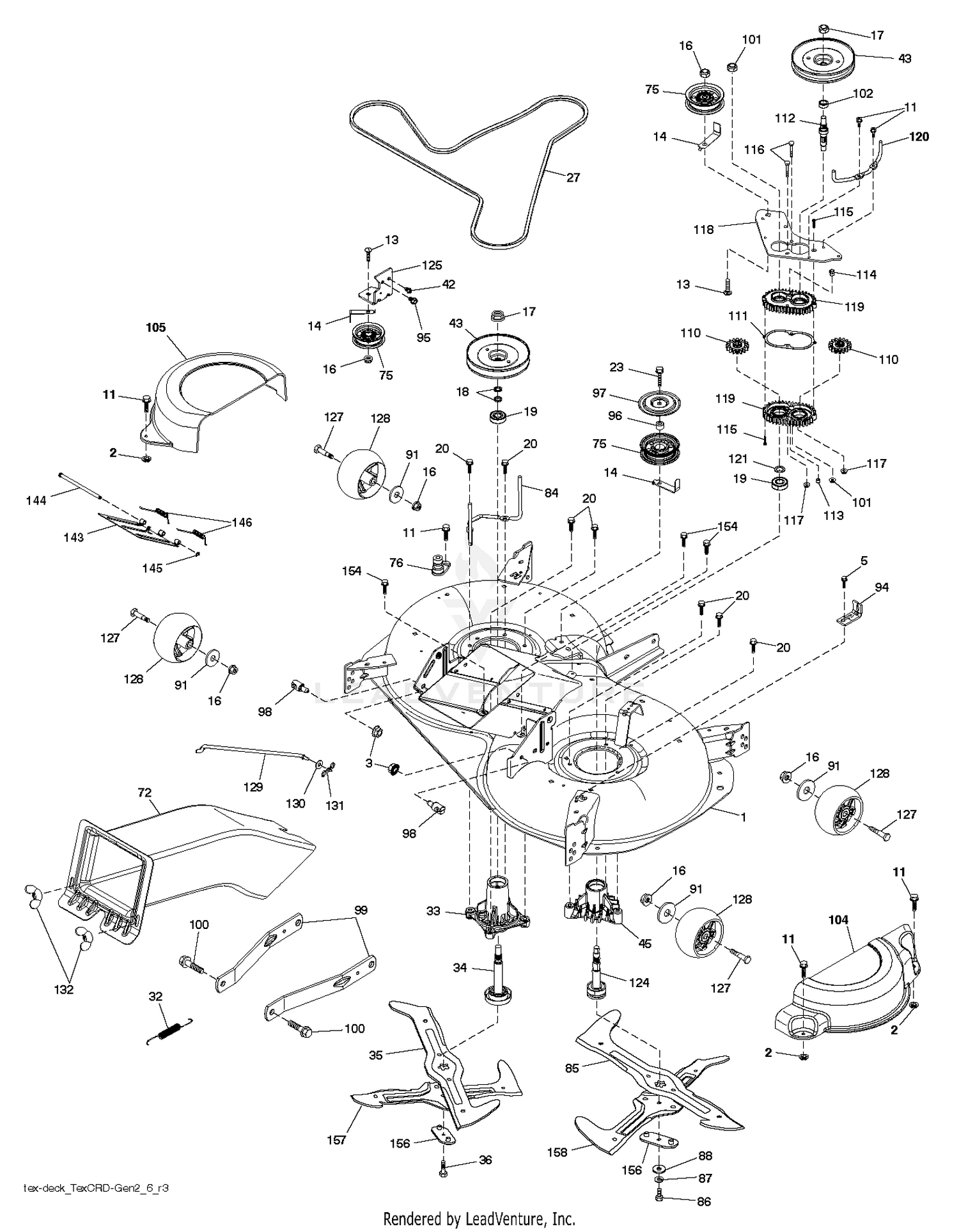

| Ref | Part Number | Description |
|---|
| 1 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 1 |
532448209 |
Price: Call Us |
| 2 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 3 |
282-4 |
SHACKLE Price: $32.98 |
| 3 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 4 |
32151-48 |
E-RING Price: $1.41 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
98-4548-03 |
BRACKET-SPRING, RH Price: $42.16 |
| 8 |
98-4536-03 |
BRACKET-SPRING, LH Price: $42.16 |
| 9 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 10 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 11 |
75-3810-01 |
BRACKET-ROLLER ASM Price: $64.51 |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 13 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 14 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 15 |
75-5390 |
ROLLER Price: $56.69 |
| 16 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 17 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 18 |
108-4432 |
CYLINDER-HYD, LIFT This part replaces 93-9311. Price: $730.09 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 19 |
532110485 |
BEARING Price: $11.99 |
| 20 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 21 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 22 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 23 |
93-0069-03 |
PIN-REAR Price: $424.34 |
| 25 |
322-6 |
SCREW-HH Price: $0.45 |
| 27 |
532445887 |
BELT.ELECT.MOWER.DRIVE 97.8 EL This part replaces 532445886. Price: $49.99 |
| 32 |
583584001 |
SPRING.DRVE.107&97CM.ELEC.DECK This part replaces 532446205. Price: $9.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 35 |
532180583 |
BLADE.3N1.LH.CRD Price: $27.99 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 42 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 43 |
583568201 |
PULLEY.MANDREL.5.438 PD This part replaces 532443239. Price: $44.99 |
| 45 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 72 |
581454103 |
CHUTE.SLOTTED.HOLES.TEX.CRD.II This part replaces 532443903. Price: $79.99 |
| 75 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 84 |
583567901 |
KEEPER.BELT.MANDREL PULLEY This part replaces 532443235. Price: $9.99 |
| 85 |
532180584 |
BLADE.3N1.RH.CRD Price: $27.99 |
| 86 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 87 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 88 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 91 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 94 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 95 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 97 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 98 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 99 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 100 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 101 |
596040601 |
Hardware This part replaces 873680900. Price: $3.99 |
| 102 |
532402511 |
SPACER BEARING Price: $3.99 |
| 104 |
581714001 |
COVER.MANDREL.107.RH.GEN.2 Price: $19.99 |
| 105 |
532444755 |
COVER.MANDREL.107.LH.GEN.2 Price: $17.99 |
| 110 |
587934801 |
CRD.SPUR.GEAR This part replaces 532415356. Price: $11.99 |
| 111 |
583514001 |
GASKET.GEARCASE.97.CRD (2 2) This part replaces 532436979. Price: $4.99 |
| 112 |
583571601 |
SHAFT.CRD.GEARCASE.ADAPTER This part replaces 532443852. Price: $14.99 |
| 114 |
588170501 |
VENT.BREATHER.1/8 NPT This part replaces 532438534. Price: $8.99 |
| 115 |
583608901 |
SCREW.TORX#10-24X1 This part replaces 818031016. Price: $2.99 |
| 116 |
594976601 |
Bolts This part replaces 872110414. Price: $1.99 |
| 117 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 118 |
583567701 |
ARM.CLUTCHING.107.TEX.CRD This part replaces 532443232. Price: $17.99 |
| 119 |
583527601 |
GEAR.CASE.SUBASM. This part replaces 532438166. Price: $59.99 |
| 120 |
583568001 |
KEEPER.RH.MANDREL.BELT This part replaces 532443236. Price: $9.99 |
| 121 |
583514101 |
WASHER.687.I.D.X.1 OD.X.062THK This part replaces 532436985. Price: $2.99 |
| 124 |
583514201 |
MANDREL SHAFT NON/GREASEABLE This part replaces 532436986. Price: $37.99 |
| 125 |
583548001 |
IDLER.BRACKET.ASM. This part replaces 532440420. Price: $29.99 |
| 127 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 128 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 129 |
583568101 |
ROD.SWAY.97&107.CRDI&II This part replaces 532443237. Price: $17.99 |
| 130 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 131 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 132 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 143 |
583527801 |
DOOR.EZ.MULCH.107.CRD This part replaces 532438197. Price: $7.99 |
| 144 |
583507401 |
PIN.HINGE This part replaces 532435861. Price: $5.99 |
| 145 |
532437988 |
E-RING.5/16" Price: $7.99 |
| 146 |
583582001 |
SPRING.EZ.MULCH.DOOR This part replaces 532445896. Price: $2.99 |
| 154 |
583254901 |
SCREW.1/4-20X.50-0T30 This part replaces 532199855. Price: $2.99 |
| 156 |
583588901 |
ADAPTOR.CROSSBLADE.107 This part replaces 532446995. Price: $5.99 |
| 157 |
532446993 |
BLADE 107CM.CROSS.BLADE Price: $27.99 |
| 158 |
532180425 |
BLADE.CROSS.RH.CRD.107 Price: $39.99 |
