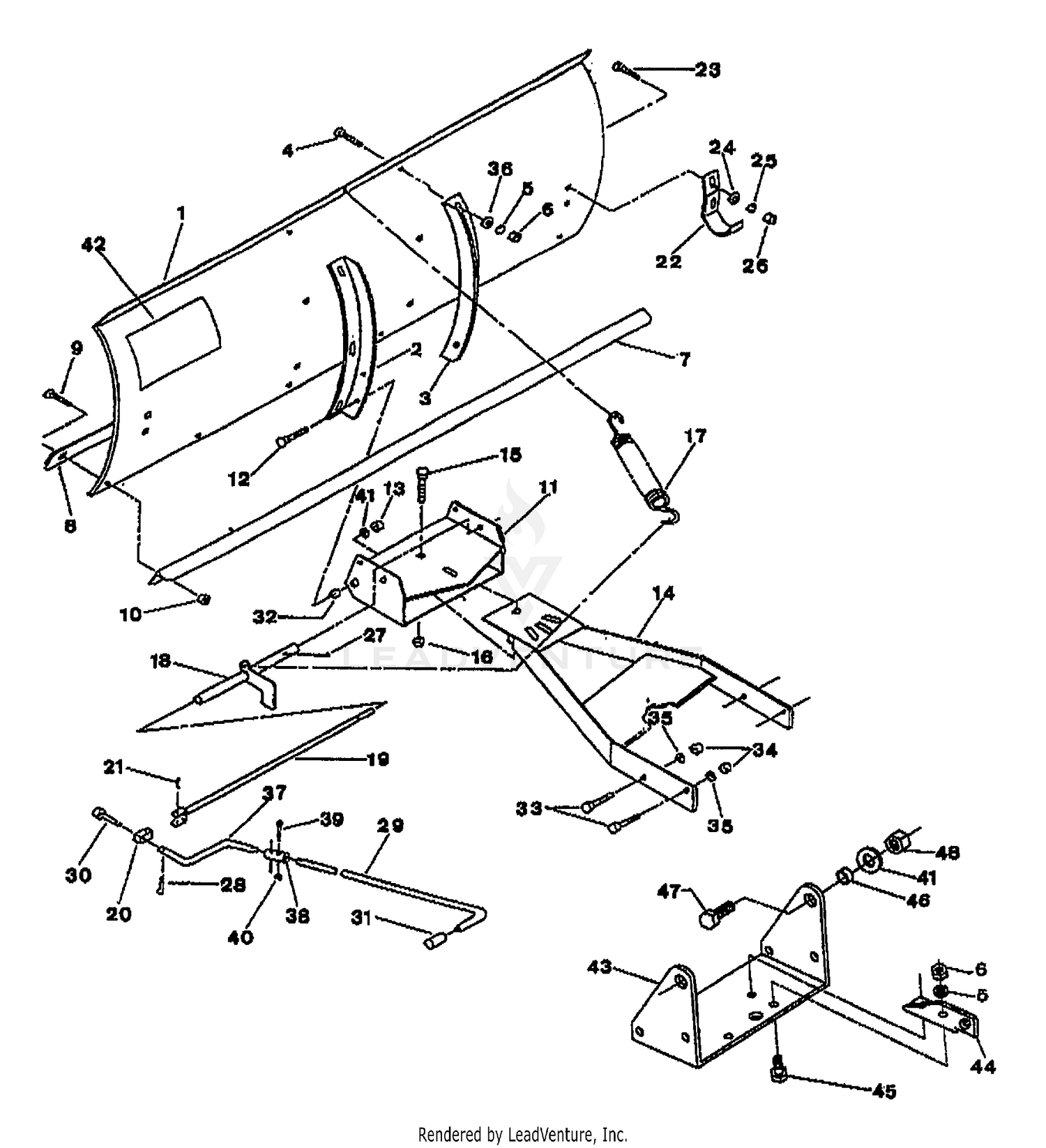

| Ref | Part Number | Description |
|---|
| 1 |
1825563 |
MOLDBOARD Not Available Price: |
| 1 |
1825564 |
MOLDBOARD Not Available Price: |
| 2 |
1825565 |
ANGLE-REINFORCEMENT LH Not Available Price: |
| 3 |
1825566 |
ANGLE-REIN Not Available Price: |
| 4 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 This part replaces 1186128. Price: $3.61 |
| 5 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 6 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90 |
| 7 |
1825567 |
MOLDBOARD Not Available Price: |
| 7 |
1825568 |
MOLDBOARD Not Available Price: |
| 8 |
1825569 |
EDGE-CUTTING (44) Price: Call Us |
| 8 |
1825570 |
EDGE-CUTTI Not Available Price: |
| 9 |
1186098 |
SCREW-CARR Not Available Price: |
| 10 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces 1110107. Price: $2.83 |
| 11 |
1825571 |
FEMALE ATTACHMENT Not Available Price: |
| 12 |
1186183 |
BOLT-CARR .500-13X1.50 Price: Call Us |
| 13 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 14 |
1825572 |
MALE ATTACHMENT Price: Call Us |
| 15 |
1825583 |
SCR-CARR 5/8X4.0 Not Available Price: |
| 16 |
712-3016 |
Nut, Hex Lock, Nylon, 5/8-11, Gr5 This part replaces 1758231. Price: $5.94 |
| 17 |
1825453 |
SPRING Not Available Price: |
| 18 |
1825573 |
LEVER-LOCKING Price: Call Us |
| 19 |
1825574 |
ROD-ANGLE LINKAGE Not Available Price: |
| 20 |
1825575 |
BLOCK Not Available Price: |
| 21 |
715-0143 |
Spring Spiral Pin, .25 x 1.25 This part replaces 1185348. Price: $4.04 |
| 22 |
1825576 |
SHOE-SKID Price: Call Us |
| 23 |
1186100 |
SCREW-CARR 5/16-18X1 Not Available Price: |
| 24 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 25 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 26 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 27 |
1120209 |
ROLL PIN . Not Available Price: |
| 28 |
1723478 |
HITCH PIN Not Available Price: |
| 29 |
1825577 |
ARM-ANGLE ADJUSTING Price: Call Us |
| 30 |
1825578 |
PIN (SPECIAL) Not Available Price: |
| 31 |
1825537 |
GRIP-HANDLE Not Available Price: |
| 32 |
1825579 |
BUSHING Not Available Price: |
| 33 |
1825552 |
BOLT Price: Call Us |
| 34 |
712-3019 |
Hex Nut, 7/16-14 This part replaces 1186232. Price: $5.94 |
| 35 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 36 |
710-0347 |
Hex Cap Screw 3/8-16 x 1.75 This part replaces 1100086. Price: $4.39 |
| 37 |
1825580 |
ARM-LOWER ADJ Price: Call Us |
| 38 |
1825581 |
TUBE-UNION Not Available Price: |
| 39 |
1825584 |
HEX. SOCKET CAPSCREW Price: Call Us |
| 40 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 41 |
1185023 |
WASHER-FLAT 19/32X1 3/16X. Price: Call Us |
| 42 |
1825582 |
DECAL-SAFETY Not Available Price: |
| 43 |
1825550 |
BRACKET-PIVOT Price: Call Us |
| 44 |
1825556 |
BRACKET-PUSH Price: Call Us |
| 45 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces 1100046. Price: $3.78 |
| 46 |
1730681 |
SPACER Not Available Price: |
| 47 |
1100015 |
HEX SCREW, 1/2-20 x 1-1/4 Not Available Price: |
