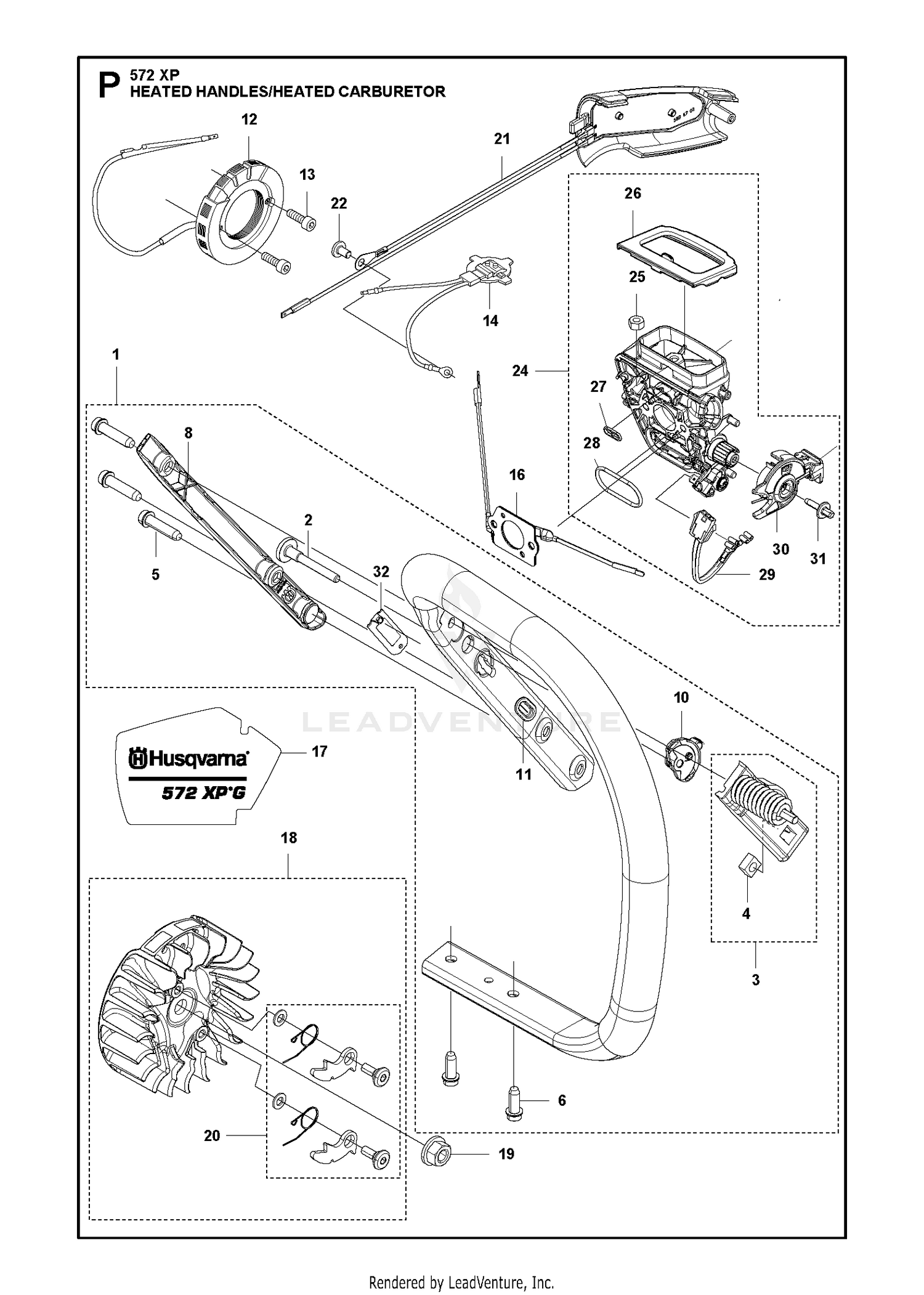

HEATED HANDLES
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-1423-03 | SUPPORT-RADIATOR Price: $103.39 |
| 1 | 579484302 | FRONT HANDLE ASSY KIT HEATED - Price: $139.99 |
| 2 | 117-3268 | SHROUD FAN ASM Price: $135.66 |
| 2 | 504064501 | SCREW ITXPANM MOVEMENT LIMITER Price: $2.99 |
| 3 | 589699101 | ANTIVIBRATION ELEMENT ASSY HEA Price: $17.99 |
| 4 | 119-1426 | SEAL-BULB Price: $12.29 |
| 4 | 503226601 | NUT Price: $3.99 |
| 5 | 119-1422 | MOUNT-ISOLATOR Price: $19.80 |
| 5 | 525798103 | SCREW Price: $2.99 |
| 6 | 119-1427 | SEAL-BULB Price: $13.94 |
| 6 | 575885703 | SCREW Price: $2.99 |
| 7 | 115-0330 | HOSE-RADIATOR, UPPER Price: $33.52 |
| 8 | 32105-15 | SCREW-HWH Price: $1.79 |
| 8 | 582654201 | COVER FRONT HANDLE HEAT Price: $4.99 |
| 9 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 10 | 3234-42 | SCREW-HHF Price: $1.10 |
| 10 | 537252501 | HANDLE Price: $5.99 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 11 | 537088301 | GROMMET Price: $4.99 |
| 12 | 108-9930-0P | BRACKET-BOTTLE This part replaces 108-9930-03. Price: $27.52 |
| 12 | 590688101 | GENERATOR STATOR ASSY Price: $199.99 |
| 13 | 321-5 | SCREW-HH Price: $0.22 |
| 14 | 590688301 | THERMOSTAT ASSY Price: $69.99 |
| 14 | 98-4799 | SPACER Price: $5.26 |
| 15 | 104-7201 | NUT-HF Price: $0.69 |
| 16 | 108-0638 | BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 16 | 588168601 | FOIL ELEMENT ASSY Price: $69.99 |
| 17 | 108-3284 | HOSE-FUEL Price: $13.53 |
| 17 | 575396402 | DECAL STARTER 572XPG Price: $3.99 |
| 18 | 107069 | CLIP Price: $1.79 |
| 18 | 576777202 | FLYWHEELS Price: $129.99 |
| 19 | 503220401 | NUT W/ WASHER Price: $3.99 |
| 21 | 589698901 | HANDLE INSERT ASSY HEAT Price: $22.99 |
| 22 | 526221801 | SCREW Price: $2.99 |
| 25 | 731231401 | NUT Price: $1.99 |
| 26 | 589378401 | SEALING FILTER HOLDER Price: $9.99 |
| 27 | 525619201 | SEALING Price: $2.99 |
| 28 | 525619001 | SEALING Price: $5.99 |
| 29 | 577536402 | WIRING ASSY STOP Price: $6.99 |
| 30 | 510017202 | CHOKE CONTROL ASSY CHOKE/STOP Price: $9.99 |
| 31 | 505156201 | SCREW Price: $2.99 |
| 32 | 590469101 | PROTECTION FRONT HANDLE, HEAT Price: $2.99 |
