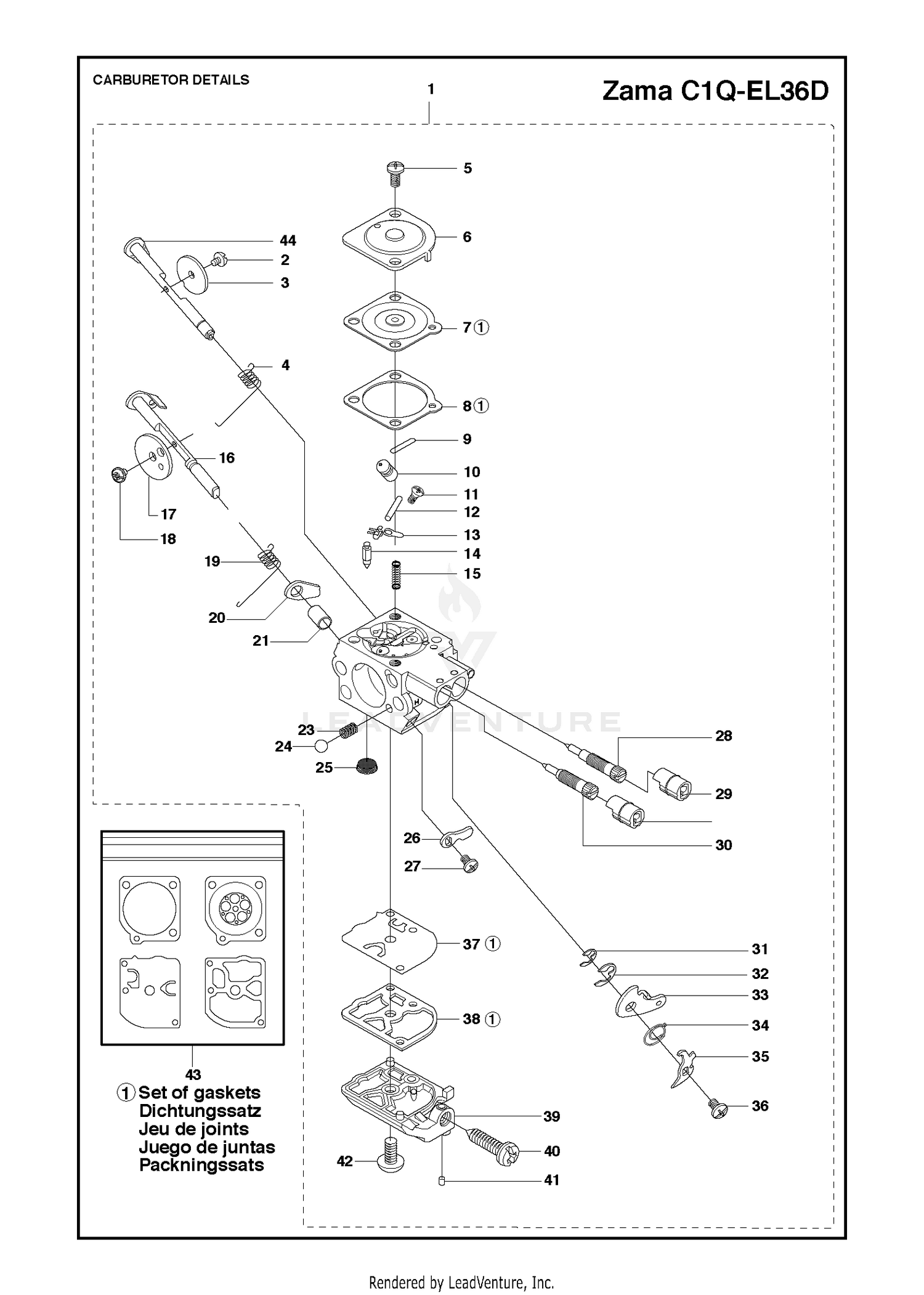

CARBURETOR 2
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 581167501 | CARBURETTOR Price: $39.99 |
| 1 | SG404070-03 | HEAD-TINE Price: Call Us |
| 2 | 323-15 | SCREW-HH Price: $1.53 |
| 2 | 503479201 | SCREW Price: $2.99 |
| 3 | 537417201 | THROTTLE Price: $6.99 |
| 3 | SG477125 | SCREW-SET, SQH Price: $10.26 |
| 4 | 544372401 | RETURN SPRING Price: $3.99 |
| 4 | SG487200 | BUMPER-HEAD Price: $25.52 |
| 5 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 5 | 503480501 | SCREW Price: $2.99 |
| 6 | 503974301 | COVER Price: $5.99 |
| 6 | SG447080 | BUSHING-FLANGED Price: $37.96 |
| 7 | 537048901 | DIAPHRAGM Price: $11.99 |
| 7 | SG437100 | SPACER This part replaces SG437100-03. Price: $45.57 |
| 8 | 537020401 | GASKET Price: $3.99 |
| 8 | SG449127-03 | POST-SPRING Price: $49.81 |
| 9 | 503535601 | PLUG Price: $3.99 |
| 9 | SG449129 | BOLT-SHOULDER Price: $25.27 |
| 10 | 581899501 | MAIN NOZZLE Price: $12.99 |
| 10 | SG487201 | SPACER-PLASTIC Price: $65.49 |
| 11 | 503480101 | SCREW Price: $2.99 |
| 12 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 12 | SG486311 | TUBE-METAL, HEAD BUMPER Price: $18.73 |
| 13 | 503665901 | LEVER Price: $3.99 |
| 13 | SG449126-03 | POST-SPRING Price: $30.77 |
| 14 | 323-12 | SCREW-HH Price: $1.14 |
| 14 | 503479701 | INLET NEEDLE Price: $8.99 |
| 15 | 325-6 | SCREW-HH Price: $1.42 |
| 15 | 503478101 | SPRING Price: $2.99 |
| 16 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 16 | 544372201 | CHOKE SHAFT Price: $19.99 |
| 18 | 503481801 | SCREW Price: $2.99 |
| 19 | 544372601 | SPRING Price: $2.99 |
| 20 | 544372501 | LEVER Price: $6.99 |
| 21 | 544427001 | SLEEVE Price: $4.99 |
| 23 | 537012601 | SPRING Price: $2.99 |
| 24 | 537012501 | BALL Price: $2.99 |
| 25 | 503481301 | FUEL INLET SCREEN Price: $2.99 |
| 26 | 544372301 | LEVER Price: $6.99 |
| 27 | 503479001 | SCREW Price: $2.99 |
| 28 | 537416901 | IDLE SCREW Price: $7.99 |
| 29 | 537417001 | LIMITER CAP KIT Price: $5.99 |
| 30 | 581899301 | SCREW MAIN MIXTURE Price: $12.99 |
| 31 | 537385201 | CLIP Price: $2.99 |
| 32 | 537385001 | CLIP Price: $4.99 |
| 33 | 537417301 | LEVER Price: $6.99 |
| 34 | 576746601 | SPRING SPRING THROTTLE RETURN Price: $2.99 |
| 35 | 537417401 | LEVER Price: $5.99 |
| 36 | 502078401 | SCREW Price: $2.99 |
| 37 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 38 | 537020101 | GASKET Price: $3.99 |
| 39 | 537416801 | COVER Price: $24.99 |
| 40 | 537020701 | SCREW Price: $6.99 |
| 41 | 503481101 | PLUG Price: $3.99 |
| 42 | 503479601 | SCREW Price: $2.99 |
| 43 | 531004552 | GASKET KIT (ZAMA GND39) Price: $9.99 |
| 44 | 544372101 | SHAFT ASSY THROTTLE Price: $14.99 |
