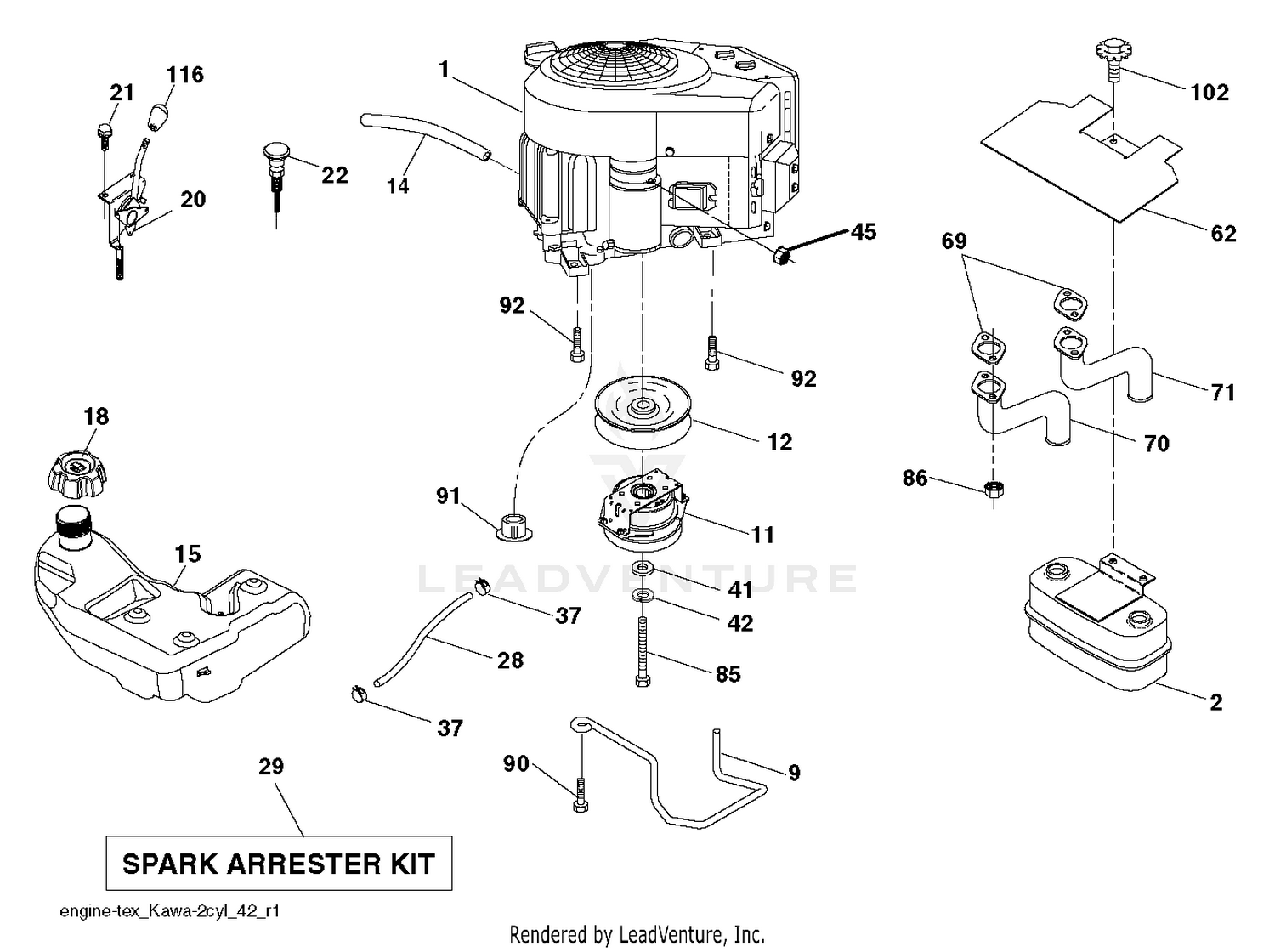

| Ref | Part Number | Description |
|---|
| 1 |
70-3880 |
PLATE Price: $15.80 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 2 |
99-2233 |
RACK - CONTROL This part replaces 70-3840. Price: $85.34 |
| 3 |
70-3860 |
WASHER Price: $4.57 |
| 4 |
70-3960 |
DISCONTINUED Price: Call Us |
| 5 |
70-3930 |
GASKET Price: $11.43 |
| 6 |
70-6850 |
BEARING Price: $67.75 |
| 7 |
70-3710 |
PLATE Price: $2.92 |
| 8 |
70-3690 |
RING Price: $2.29 |
| 9 |
596501502 |
Keepers This part replaces 584908001. Price: $9.99 |
| 9 |
70-3900 |
PACKING Price: $1.27 |
| 10 |
70-3950 |
SCREW Price: $4.71 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 11 |
70-3570 |
SCREW Price: $0.94 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
70-3560 |
PINION Price: $26.27 |
| 13 |
70-3580 |
SLEEVE Price: $24.16 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 14 |
70-3590 |
DISCONTINUED Price: Call Us |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 15 |
70-3600 |
SPRING Price: $12.73 |
| 16 |
70-3610 |
SEAT Price: $13.09 |
| 17 |
70-3970 |
PLATE Price: $3.66 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
70-3640 |
PIN Price: $5.43 |
| 19 |
70-3620 |
BODY Price: $91.31 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 20 |
70-3650 |
BUSHING Price: $13.26 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
70-3660 |
ROLLER Price: $13.46 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
70-3670 |
PLUG Price: $9.07 |
| 23 |
70-6800 |
E-RING Price: $2.69 |
| 24 |
70-6930 |
SCREW Price: $8.71 |
| 25 |
70-3910 |
WASHER Price: $3.15 |
| 26 |
70-6900 |
O-RING Price: $12.17 |
| 27 |
70-6720 |
STUD Price: $6.81 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
70-3940 |
PLATE Price: $58.51 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
70-6880 |
KEY Price: $10.91 |
| 30 |
70-3680 |
CAMSHAFT Price: $673.68 |
| 31 |
70-3830 |
GASKET Price: $3.34 |
| 32 |
70-6540 |
BOLT Price: $3.73 |
| 33 |
70-6780 |
NUT Price: $3.97 |
| 34 |
70-6680 |
WASHER Price: $1.91 |
| 35 |
70-3820 |
COVER Price: $127.40 |
| 36 |
70-6840 |
SCREW Price: $50.06 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
70-3780 |
PLATE Price: $1.79 |
| 38 |
70-3700 |
RING Price: $4.85 |
| 39 |
70-6940 |
SCREW Price: $20.10 |
| 40 |
70-3870 |
WASHER Price: $3.04 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
70-3490 |
COVER Price: $14.21 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
70-3850 |
SCREW Price: $4.14 |
| 43 |
70-4940 |
HOUSING KIT Price: $2,240.01 |
| 44 |
70-3550 |
DISCONTINUED Price: Call Us |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 |
70-3540 |
VALVE SUB ASSEMBLY Price: $75.51 |
| 46 |
70-3530 |
GASKET Price: $1.24 |
| 47 |
70-6910 |
O-RING Price: $2.00 |
| 48 |
70-3520 |
DISCONTINUED Price: Call Us |
| 49 |
70-3510 |
DISCONTINUED Price: Call Us |
| 50 |
70-3500 |
DISCONTINUED Price: Call Us |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
