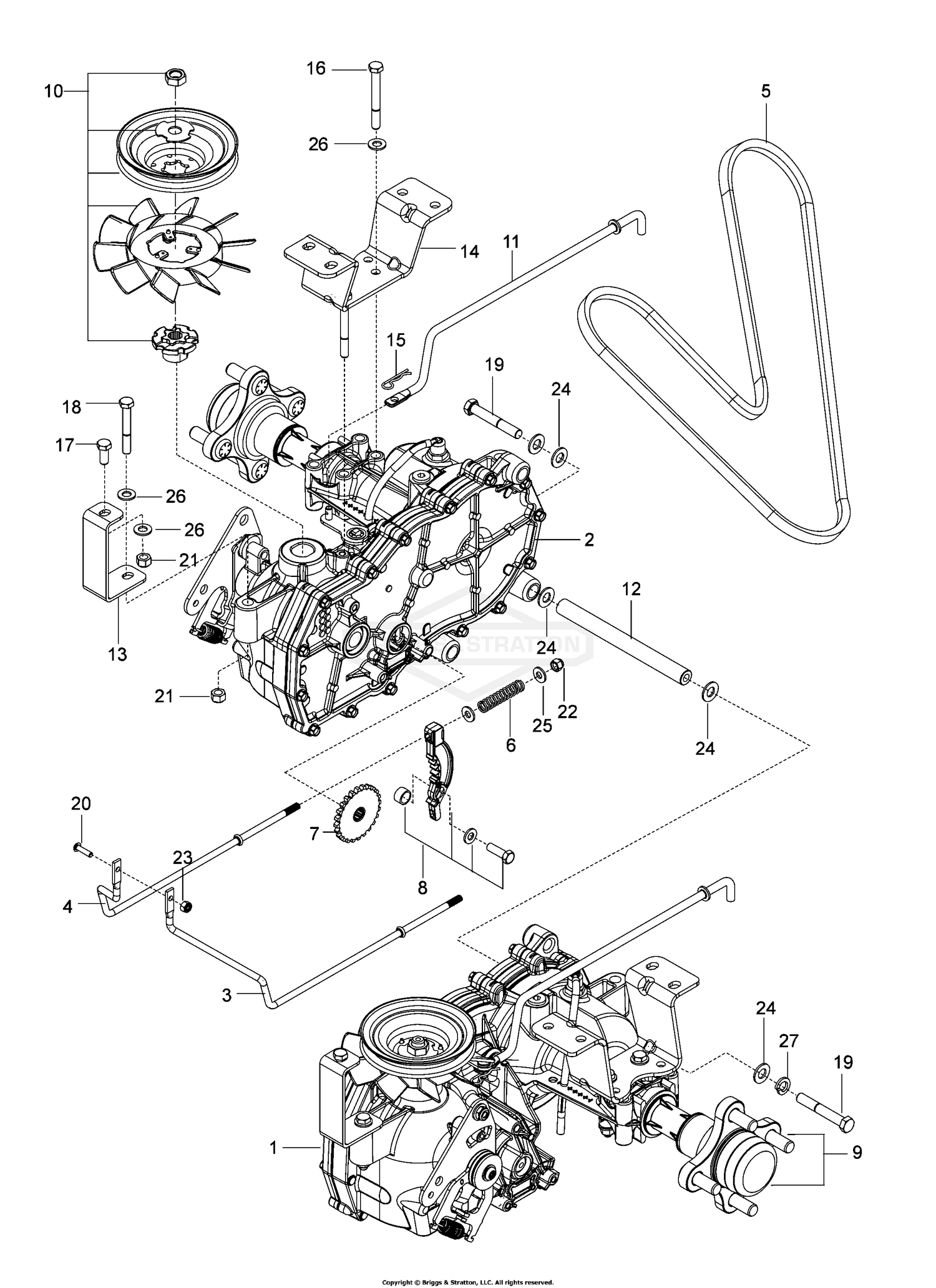

| Ref | Part Number | Description |
|---|
| 1 |
84005956 |
TRANSAXLE, Hydro Gear, LH Price: $1,849.99 |
| 2 |
84005941 |
TRANSAXLE, Hydro Gear, RH Price: $1,849.99 |
| 3 |
84005823 |
ROD, Brake, Left Price: Call Us |
| 4 |
84005824 |
ROD, Brake, Right Price: Call Us |
| 5 |
84005825 |
V-BELT Price: $86.63 |
| 6 |
84005826 |
SPRING, Brake Price: $10.48 |
| 7 |
84005827 |
GEAR, Brake Price: $55.99 |
| 8 |
84005828 |
ARM, Brake Price: $63.99 |
| 9 |
84005942 |
HUB Price: $269.99 |
| 10 |
84005829 |
KIT, Pulley, Fan Price: $204.99 |
| 11 |
84005830 |
ROD, Bypass Price: $28.99 |
| 12 |
84005831 |
SPACER Price: $20.49 |
| 13 |
84005832 |
SUPPORT, Transaxle, Front Price: $7.19 |
| 14 |
84005833 |
SUPPORT, Transaxle, Rear Price: Call Us |
| 15 |
84005834 |
PIN, Retainer Price: $6.99 |
| 16 |
84005883 |
CAPSCREW, 5/16-18 X 2-3/4 HEX HEAD Price: $12.49 |
| 17 |
84005867 |
CAPSCREW, 5/16-18 X 3/4 GR. 5 ZD Price: $6.99 |
| 18 |
84005870 |
CAPSCREW, 5/16-18 X 2-1/4 HEX HD Price: $9.89 |
| 19 |
84005921 |
CAPSCREW, 3/8-16 X 2-1/2 Price: $7.09 |
| 20 |
84005922 |
SCREW, 10-24 X 3/4 SLOTTED ROUND HD Price: $6.99 |
| 21 |
705350 |
NUT, LOCK 5/16-18 UNC Price: $4.89 |
| 22 |
84005877 |
LOCKNUT, 1/4-20 HEX NYLOC Price: $4.70 |
| 23 |
84005915 |
LOCKNUT, 10-24 HEX NYLOC Price: $4.29 |
| 24 |
705335 |
Washer 13/32 x 13/16 x 16 Ga. Price: $5.01 |
| 25 |
84005872 |
WASHER, Flat, 1/4 SAE Price: $9.69 |
| 26 |
708477 |
WASHER, 11/32 x 11/16 x 16 Ga. Price: $10.85 |
