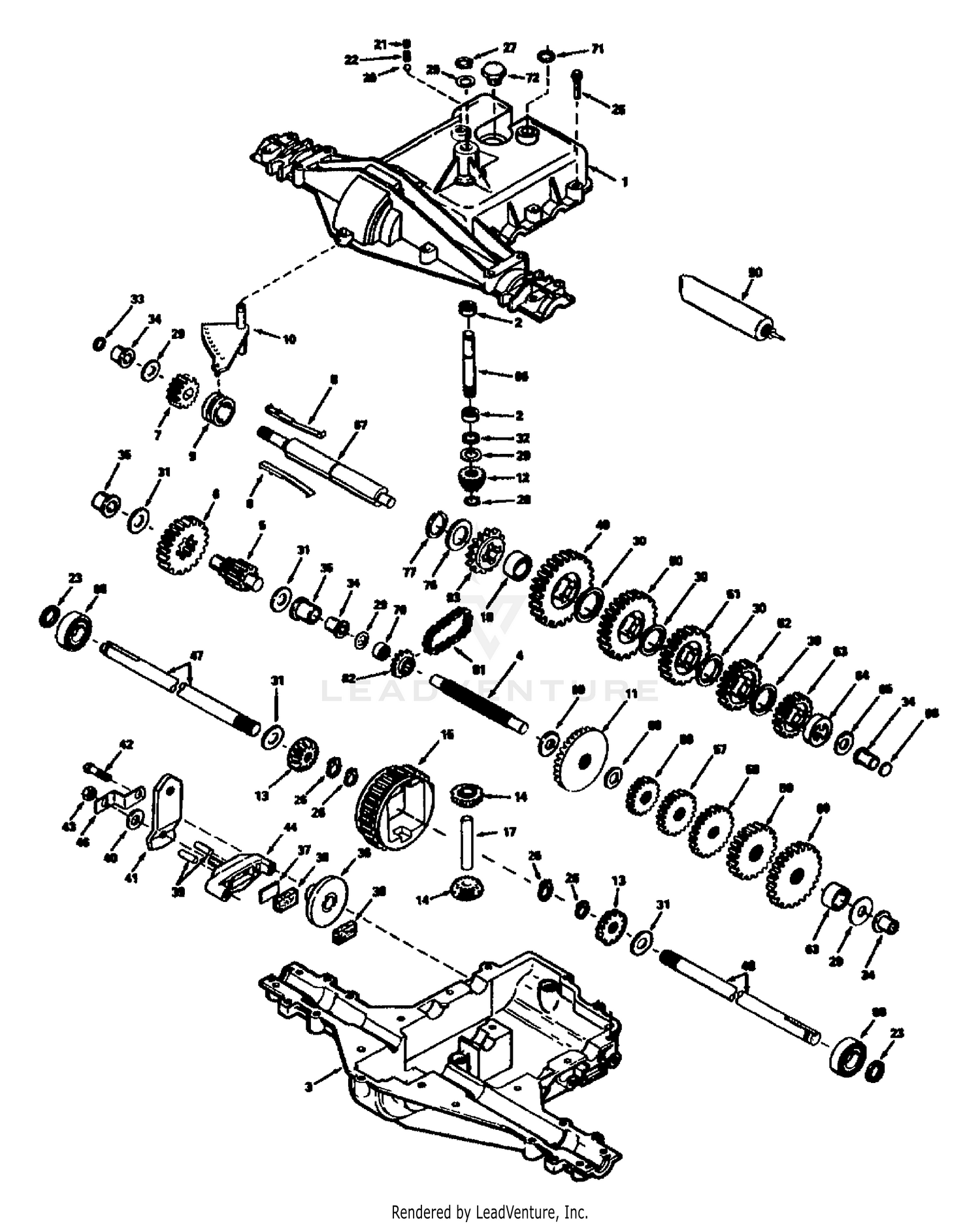

PEERLESS TRANSAXLE ASSEMBLY 930-023

PEERLESS TRANSAXLE ASSEMBLY 930-023

Parts (42)

RefPart NumberDescription
1 772108A COVER, TRANSAXLE Price: Call Us
2 780086 NEEDLE BEARING Price: Call Us
3 770102 CASE Price: Call Us
4 776260 COUNTERSHAFT Price: Call Us
6 778139 OUTPUT GEAR Price: Call Us
7 778136 SPUR GEAR Price: Call Us
9 784352 COLLAR Price: Call Us
10 784352 COLLAR Price: Call Us
11 778229 BEVEL GEAR Price: Call Us
12 TC-778113A BEVEL GEAR-INPUT Not Available This part replaces 778113A. Price:
13 778221 BEVEL GEAR Price: Call Us
14 778068 BEVEL GEAR Price: Call Us
17 786139 DRIVE PIN Price: Call Us
18 786102 SPACER Price: Call Us
21 792078 SCREW Price: Call Us
22 TC-792079 SPRING Not Available This part replaces 792079. Price:
23 TC-788061 SEAL RING Not Available This part replaces 788061. Price:
26 792125 RET RING Price: Call Us
27 TC-792035 Retaining Ring Not Available This part replaces 792035. Price:
29 TC-780072 THRUST WASHER Not Available This part replaces 780072. Price:
30 TC-780108 Washer Not Available This part replaces 780108. Price:
31 780001 WASHER Price: Call Us
32 TC-792001 RING-QUAD Not Available This part replaces 792001. Price:
33 788051 SQUARE CUT RING Price: Call Us
34 TC-780105A FLANGED BUSHING Not Available This part replaces 780105A. Price:
36 TC-790003 BRAKE-DISC Not Available This part replaces 790003. Price:
37 TC-790007 PLATE-BRAKE PAD Not Available This part replaces 790007. Price:
40 792076 WASHER Price: Call Us
41 790031 BRAKE LEVER Price: Call Us
42 792073 SCREW Price: Call Us
43 792075 NUT Price: Call Us
44 790025 HOLDER Price: Call Us
47 774697 AXLE Price: Call Us
67 776322 BRAKE SHAFT Price: Call Us
70 786118 SPACER Price: Call Us
71 788069 SEAL Price: Call Us
72 792074 PLUG Price: Call Us
74 N/A UNKNOWN
77 788075 RET RING Price: Call Us
81 786062A ROLLER CHAIN Price: Call Us
82 786061 SPROCKET Price: Call Us
90 788067B GREASE Price: Call Us
