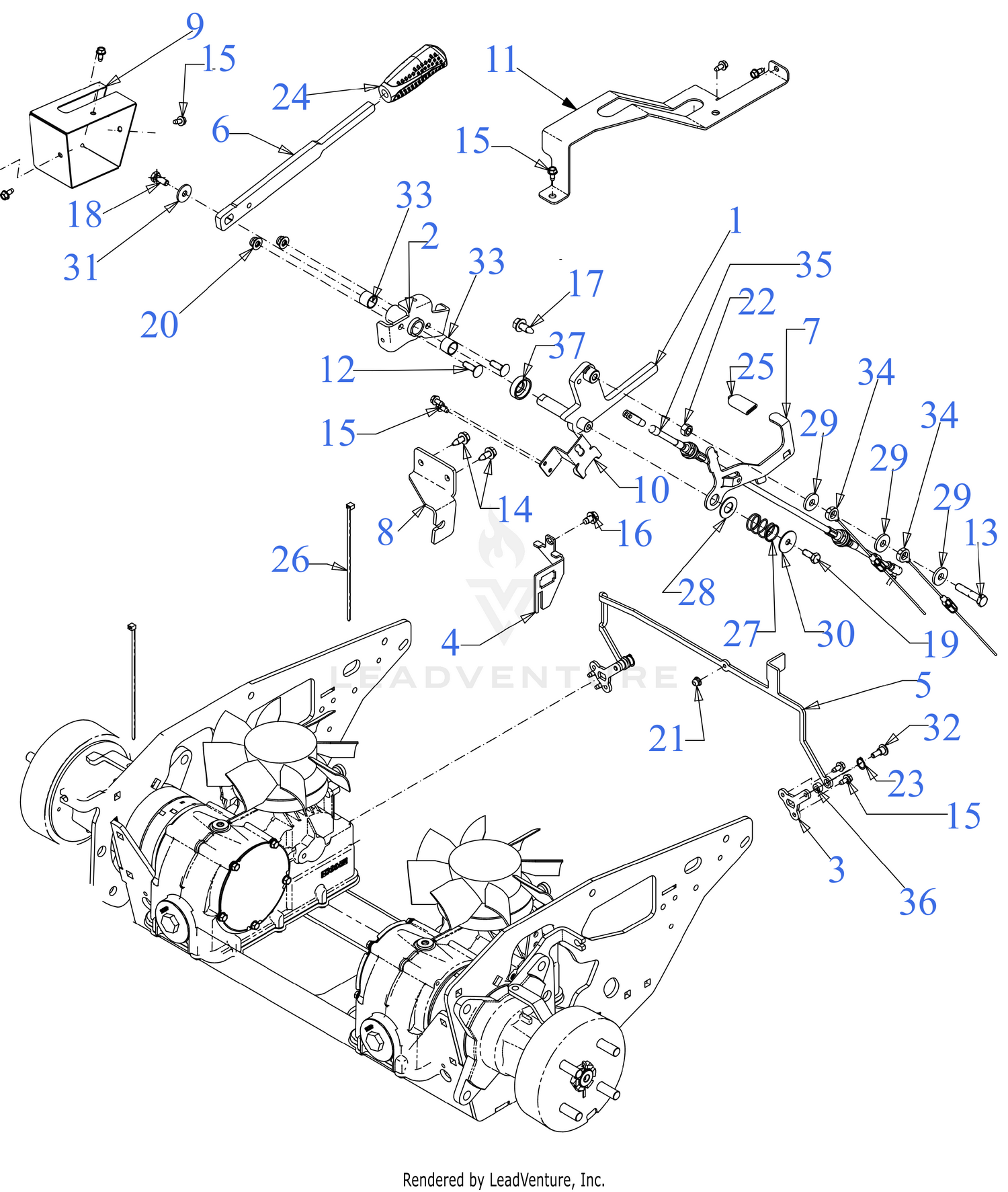

| Ref | Part Number | Description |
|---|
| 1 |
680E00435 |
BRAKE SHAFT PIVOT ASSEMBLY This part replaces 680Z00435. Price: $71.91 |
| 2 |
680E00436 |
PIVOT TUBE ASSEMBLY Price: $51.64 |
| 3 |
703E09665 |
TRANSMISSION BYPASS LEVER Price: $5.62 |
| 5 |
703E10073 |
DUMP VALVE ACCTUATOR BRACKET Price: $71.76 |
| 7 |
703E10487A |
DUMP VALVE RELEASE LEVER Price: $27.61 |
| 12 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 13 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 14 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 15 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 16 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 17 |
710-06335 |
HEX SCREW WASH TT 3/8-16 x .875 Price: $4.17 |
| 18 |
710-1880 |
SCREW 5/16-18 x .750 Price: $4.02 |
| 19 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 20 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 21 |
712-04113 |
HEX NUT Price: $4.69 |
| 22 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 23 |
916-0114 |
SNAP RING FOR .562 DIA SHAFT Price: $5.99 |
| 24 |
720-04139B |
GRIP Price: $16.45 |
| 25 |
720-0433 |
SEAT ADJUSTER GRIP Price: $9.16 |
| 27 |
732-04481 |
COMPRESSION SPRING .844X.970X1.50 Price: $4.64 |
| 28 |
736-0187 |
FLAT WASHER .640ID X1.24OD x .06 Price: $4.02 |
| 29 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 30 |
736-0362 |
FLAT WASHER .322 ID x 1.25 x .060 Price: $3.93 |
| 31 |
736-04117 |
FLAT WASHER 1.0 OD:.331 ID Price: $2.85 |
| 32 |
738-0706D |
SHOULDER SCREW .375X.280:1/4-14 Price: $3.89 |
| 33 |
741-04555 |
SLEEVE BEARING Price: $14.19 |
| 34 |
946-05103A |
BRAKE CABLE Price: $37.59 |
| 35 |
946-05283A |
NEUTRAL CONTROL CABLE Price: $110.64 |
| 36 |
750-05297 |
SPACER Price: $3.74 |
