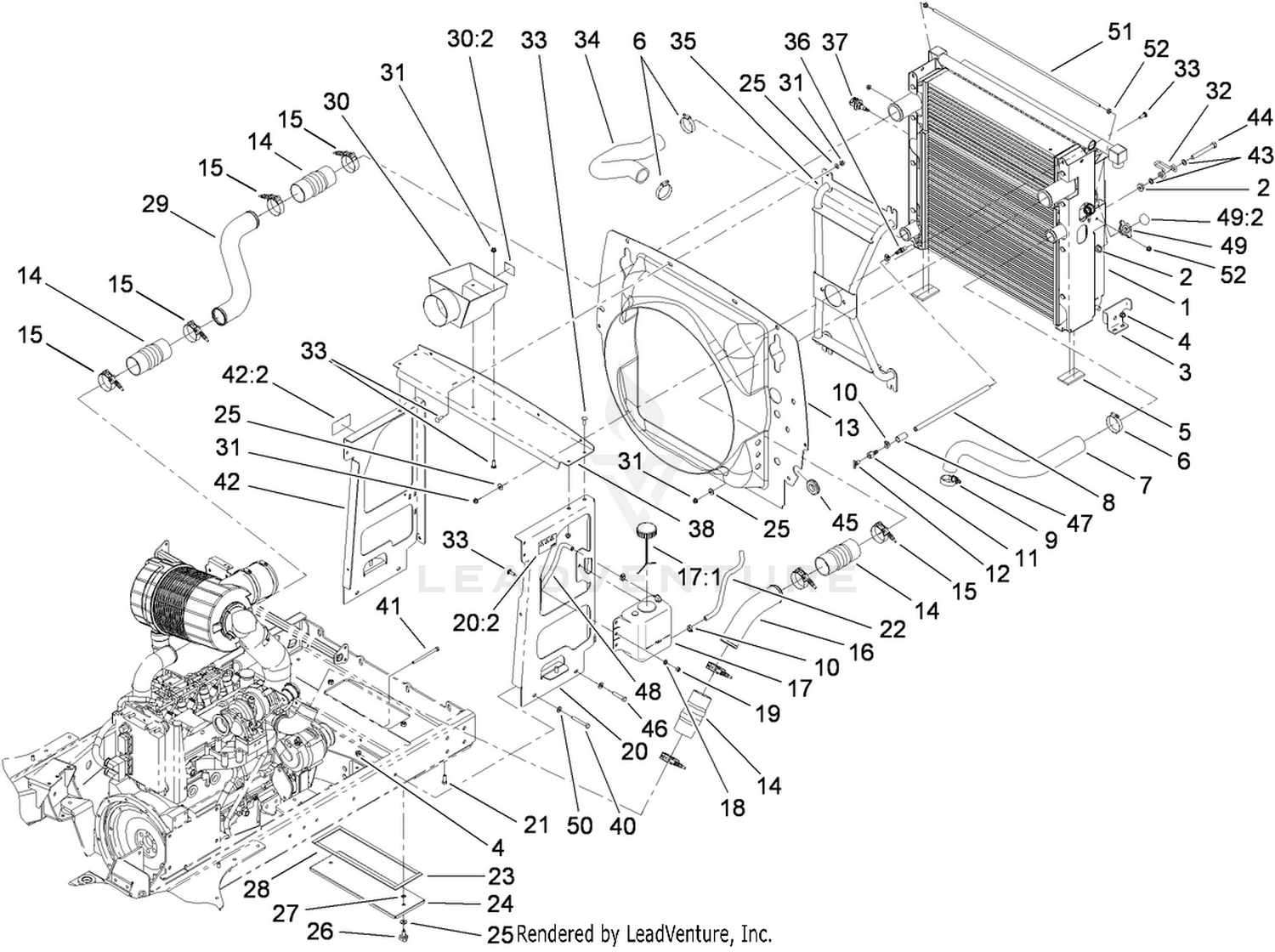

| Ref | Part Number | Description |
|---|
| 2 |
32128-49 |
NUT-HHF Price: $1.04 |
| 3 |
115-5433-01 |
PLATE-SUPPORT, COOLER Price: $33.38 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
52-5260 |
PAD-RUBBER Price: $11.63 |
| 6 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 7 |
112-7285 |
HOSE-UPPER, RADIATOR Price: $67.06 |
| 8 |
94-5625 |
HOSE Price: $13.26 |
| 9 |
2412-75 |
CLAMP Price: $12.21 |
| 10 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 11 |
354-94 |
FITTING-FEMALE, BARBED Price: $9.70 |
| 12 |
93-5528 |
FITTING-COCK, DRAIN Price: $16.97 |
| 13 |
121-3870 |
SHROUD-FAN This part replaces 112-7295. Price: $409.34 |
| 14 |
112-7283 |
TUBE-CAC, FLEXIBLE Price: $151.91 |
| 15 |
114-0031 |
CLAMP, T-BOLT Price: $18.69 |
| 16 |
112-7281 |
TUBE-CAC, HOT (RIGID) Price: $158.17 |
| 17 |
120-5571 |
COOLANT RESERVOIR ASM This part replaces 104-2276. Price: $151.27 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
115-5438 |
LH RADIATOR SUPPORT ASM Price: $263.30 |
| 21 |
323-6 |
SCREW-HH Price: $0.66 |
| 22 |
106-1126 |
HOSE-FUEL Price: $10.06 |
| 23 |
105-0778 |
STRIP-FOAM Price: $11.41 |
| 24 |
104-2287-03 |
COVER-FRAME Price: $60.02 |
| 25 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 26 |
95-9648 |
KNOB Price: $15.40 |
| 27 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 28 |
105-0777 |
STRIP-FOAM Price: $23.31 |
| 29 |
112-7282 |
TUBE-CAC, COLD (RIGID) Price: $195.20 |
| 30 |
117-5468 |
AIR BOX ASM Price: $238.89 |
| 31 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 32 |
104-5429 |
CLAMP-FORM, WIRE Price: $11.80 |
| 33 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 34 |
112-7284 |
HOSE-LOWER, RADIATOR Price: $67.06 |
| 35 |
125-5255-03 |
BRACKET-MOTOR, FAN This part replaces 112-7290-03. Price: $352.37 |
| 36 |
108-0342 |
FITTING-STRAIGHT Price: $5.86 |
| 37 |
110-8828 |
SENSOR-LEVEL, COOLANT Price: $381.92 |
| 38 |
114-0155-03 |
SUPPORT-RADIATOR, TOP Price: $137.23 |
| 40 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 41 |
322-38 |
SCREW-HH Price: $1.02 |
| 42 |
115-5437 |
RH RADIATOR SUPPORT ASM Price: $263.30 |
| 43 |
41-8440 |
WASHER Price: $1.49 |
| 44 |
325-17 |
SCREW-HH Price: $2.90 |
| 45 |
108-3723 |
GROMMET Price: $6.89 |
| 46 |
323-10 |
SCREW-HH Price: $0.89 |
| 47 |
114-5530 |
SLEEVE-HOSE Price: $12.35 |
| 48 |
109-0309 |
HOSE-FUEL Price: $18.99 |
| 49 |
115-5440 |
RADIATOR CAP ASM Price: $31.07 |
| 50 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 51 |
115-5496 |
ROD-SUPPORT Price: $26.14 |
