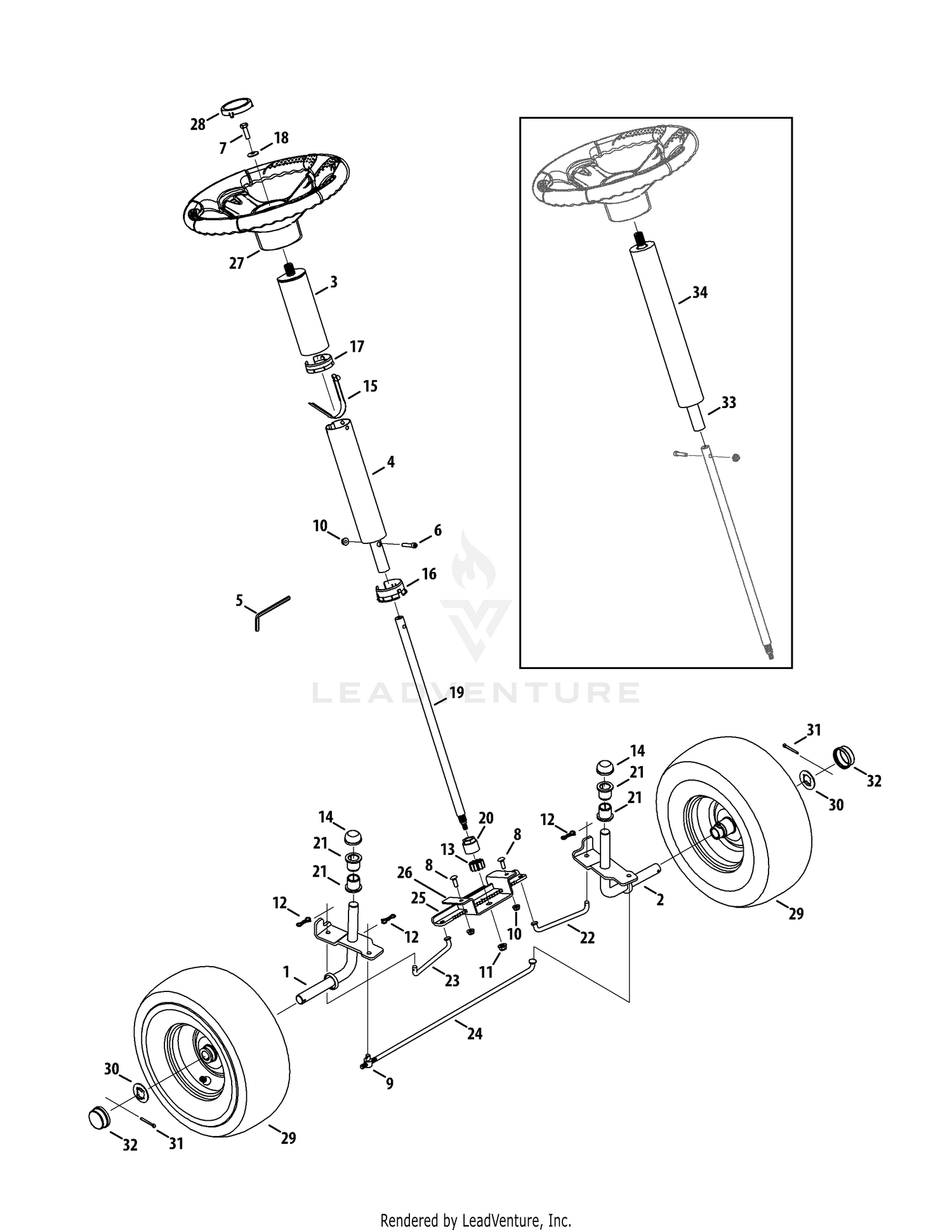

| Ref | Part Number | Description |
|---|
| 1 |
683-04726-0637 |
Front Axle Assembly, RH Price: $31.66 |
| 2 |
683-04727-0637 |
Front Axle Assembly, LH Price: $31.66 |
| 3 |
683-04761 |
Upper Tube Assembly Price: $40.97 |
| 4 |
683-04762 |
Lower Tube Assembly Price: $59.58 |
| 5 |
710-05046 |
ALLEN WRENCH TOOL 3/16 Not Available Price: |
| 6 |
710-05386 |
Screw, 1/4-20 X 1.25 Price: $3.36 |
| 7 |
710-0643 |
Hex Head Screw, 5/16-18:1.00 Price: $5.99 |
| 8 |
710-0703 |
Carriage Screw, 1/4-20, .75 Price: $3.66 |
| 9 |
711-04448 |
Ferrule, 5/16-24 X .312 Dia. Price: $9.07 |
| 10 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 11 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 12 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 13 |
717-1554 |
Steering Pinion Gear Price: $9.44 |
| 14 |
726-0341 |
Push Cap, 3/4 Price: $4.26 |
| 15 |
726-04127 |
Snap Butt Price: $9.67 |
| 16 |
731-08690 |
Lower Steering Collar Price: $3.49 |
| 17 |
731-08691 |
Upper Steering Collar Price: $3.49 |
| 18 |
736-0242 |
Bevel Washer, .340X.872X.060 Price: $3.75 |
| 19 |
738-04537B |
STEERING SHAFT This part replaces 738-04537. Price: $30.51 |
| 20 |
741-04542A |
FLANGE BEARING This part replaces 741-04542. Price: $4.19 |
| 21 |
741-0660A |
Flange Bearing, .760 X .941 X 1.0 Price: $2.92 |
| 22 |
747-05514 |
Steering Rod, LH Price: $13.05 |
| 23 |
747-05585 |
Steering Rod, RH Price: $13.05 |
| 24 |
747-05686 |
FRONT TIE ROD Not Available Price: |
| 25 |
753-11064D |
SERVICE KIT (CR12 STREERING) This part replaces 783-06988. Price: $63.70 |
| 26 |
753-11064D |
SERVICE KIT (CR12 STREERING) This part replaces 783-07239. Price: $63.70 |
| 27 |
631-04028 |
Steering Wheel, Standard Grip Price: $64.50 |
| 28 |
731-04681 |
Cap, Troy-Bilt Price: $12.40 |
| 29 |
634-04726 |
Complete Wheel Assembly Price: $105.53 |
| 30 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 31 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 32 |
931-0484A |
Hub Cap Price: $5.98 |
