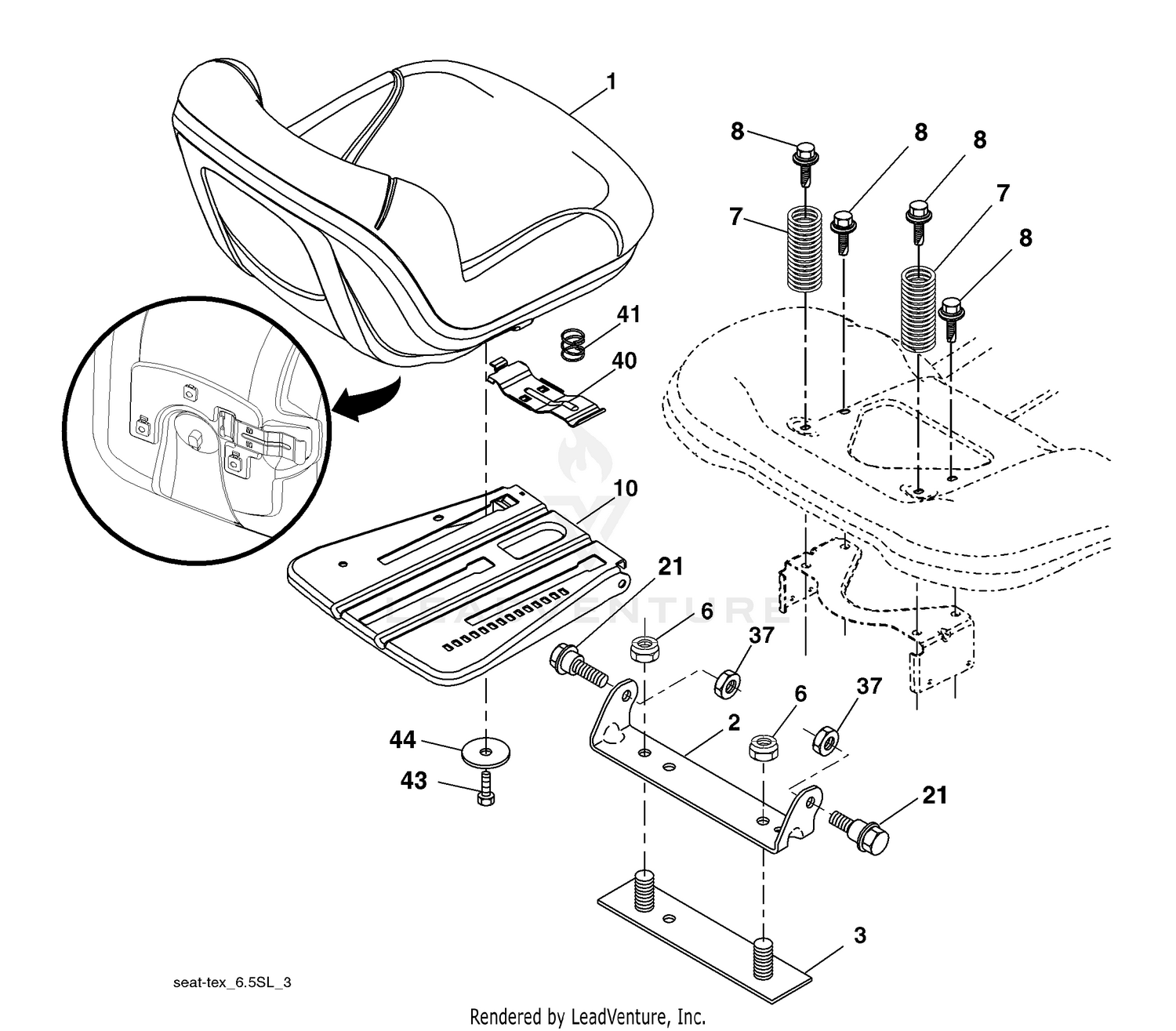

| Ref | Part Number | Description |
|---|
| 1 |
302-14 |
VENT Price: $8.03 |
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX This part replaces 532406621. Price: $159.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
54-2240-01 |
COVER-CENTER, RH This part replaces 54-2240. Price: $94.88 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 3 |
54-2320 |
GEARBOX-DRIVE, DECK Price: Call Us |
| 4 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 5 |
54-2360 |
Pulley-Input (Incl. Ref. #6) Price: Call Us |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
54-1360 |
V-BELT-DRIVE, DECK Price: $32.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
55-7040-01 |
COVER-CENTER, LEFT ASM This part replaces 55-7040. Price: $153.68 |
| 9 |
54-2220-01 |
COVER-DECK, LH This part replaces 54-2220. Price: $93.88 |
| 10 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 11 |
54-2350 |
Pulley-Output (Incl. Ref. #6) Price: Call Us |
| 12 |
322-4 |
SCREW-HH Price: $0.35 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
105-4605-01 |
BRACKET-GEARBOX This part replaces 55-7030. Price: $223.02 |
| 15 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 16 |
54-2760 |
DECAL-44 INCH Price: $40.64 |
| 17 |
54-2250-01 |
COVER-DECK, RH This part replaces 54-2250. Price: $33.23 |
| 18 |
249-35 |
RING-SNAP Price: Call Us |
| 19 |
249-36 |
STUD-HEAD, WING Price: $22.81 |
| 20 |
323-6 |
SCREW-HH Price: $0.66 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
