| Ref | Part Number | Description |
|---|
| 1 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 1 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 2 |
532401042 |

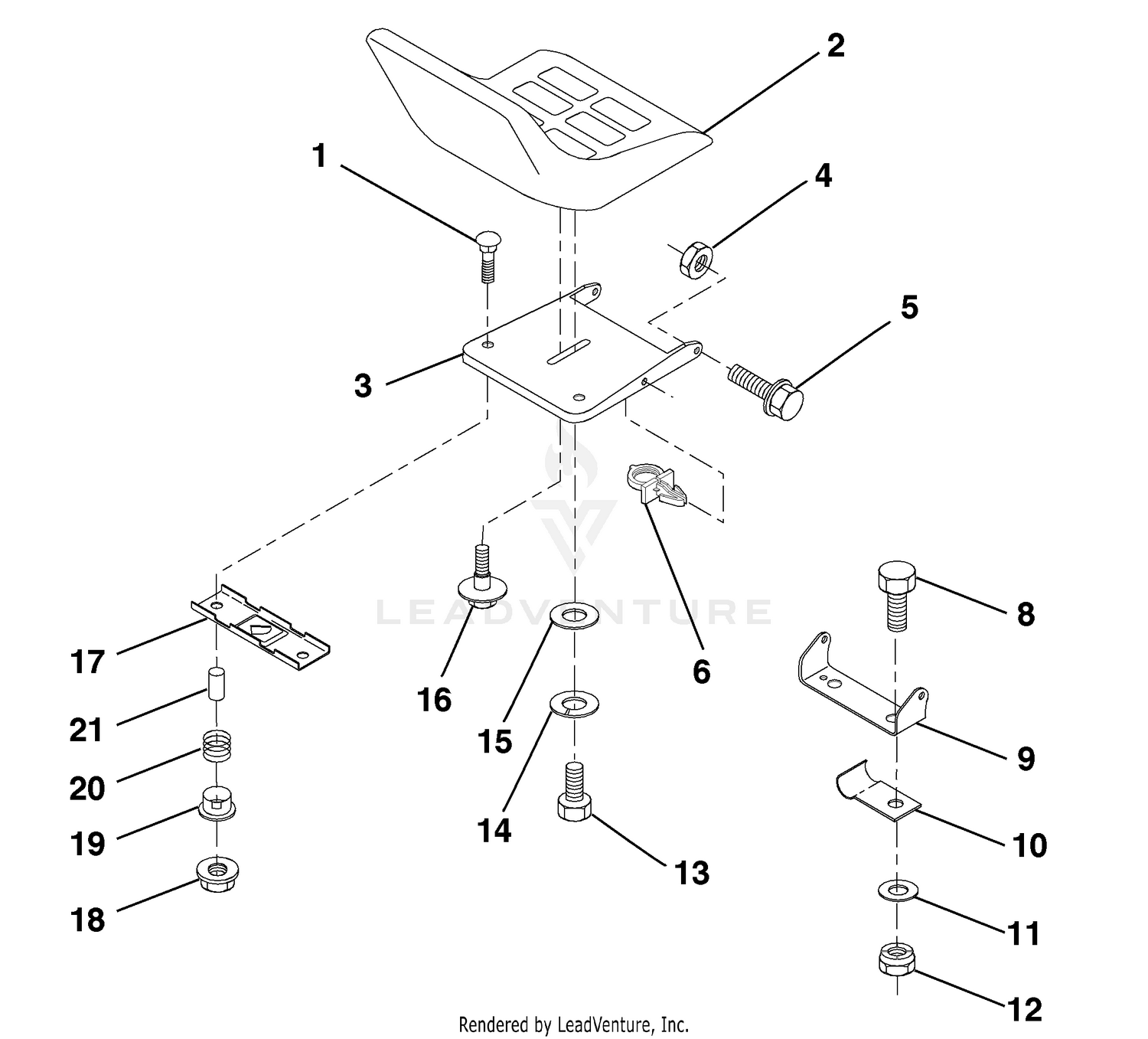

SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 2 |
93-5158 |
DISCONTINUED Price: Call Us |
| 3 |
105-7835 |
SEAL This part replaces 71-4760. Price: $2.76 |
| 3 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $17.99 |
| 4 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 4 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 71-4740. Price: $163.79 |
| 5 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 5 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
532145006 |
PUSH CLIP Price: $2.99 |
| 7 |
323-9 |
SCREW-HH Price: $1.29 |
| 8 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 8 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 9 |
33106-035 |
SCREW-HHF Price: $8.35 |
| 9 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 10 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 10 |
93-5142 |
PIN-PIVOT, AXLE Price: $238.83 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 12 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 13 |
17-6019 |
AXLE PIVOT ASM This part replaces 93-5140. Price: $354.34 |
| 13 |
871110814 |
BOLT.HEX.BLACK This part replaces 874780814. Price: $8.99 |
| 14 |
810040800 |
LOCKWASHER Price: $5.99 |
| 14 |
93-4510 |
BUSHING-CASTER Price: $6.97 |
| 15 |
104-0193 |
TIE ROD ASM This part replaces 93-5168. Price: $539.80 |
| 15 |
819171912 |
WASHER Price: $3.99 |
| 16 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 16 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 18 |
33108-040 |
DISCONTINUED Price: Call Us |
| 18 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 19 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 19 |
532121248 |
BUSHING Price: $4.99 |
| 20 |
32136-13 |
NUT-SHH Price: $2.85 |
| 20 |
532121250 |
SPRING Price: $3.99 |
| 21 |
253-129 |
SEAL Price: $21.73 |
| 22 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 23 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 24 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 25 |
3220-7 |
NUT-JAM Price: $4.09 |
| 26 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 27 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 28 |
74-5560 |
TIRE (20X8-10) 6-PLY Price: $118.04 |
| 30 |
217-122 |
DISCONTINUED Price: Call Us |
| 31 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 32 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 33 |
21-2820 |
HUB Price: $269.34 |
| 34 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 35 |
98-7095 |
LH SPINDLE KIT This part replaces 93-5496. Price: $939.33 |
| 36 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 37 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 38 |
93-5503 |
PIN-PIVOT, SPINDLE Price: $108.53 |
| 39 |
104-0191 |
STEERING CYLINDER ASM This part replaces 93-5502. Price: $814.09 |
| 40 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 41 |
108-1340-03 |
ROD END-BALL JOINT This part replaces 92-5072. Price: $163.94 |
| 42 |
3210-7 |
SCREW-HH Price: $0.61 |
| 43 |
33108-040 |
DISCONTINUED Price: Call Us |
| 44 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 45 |
33026-00 |
NUT-HEX Price: $1.02 |
| 46 |
93-5121-03 |
AXLE-REAR ASM This part replaces 93-5121. Price: $930.14 |
| 47 |
33115-045 |
SCREW-HH Price: $0.61 |
