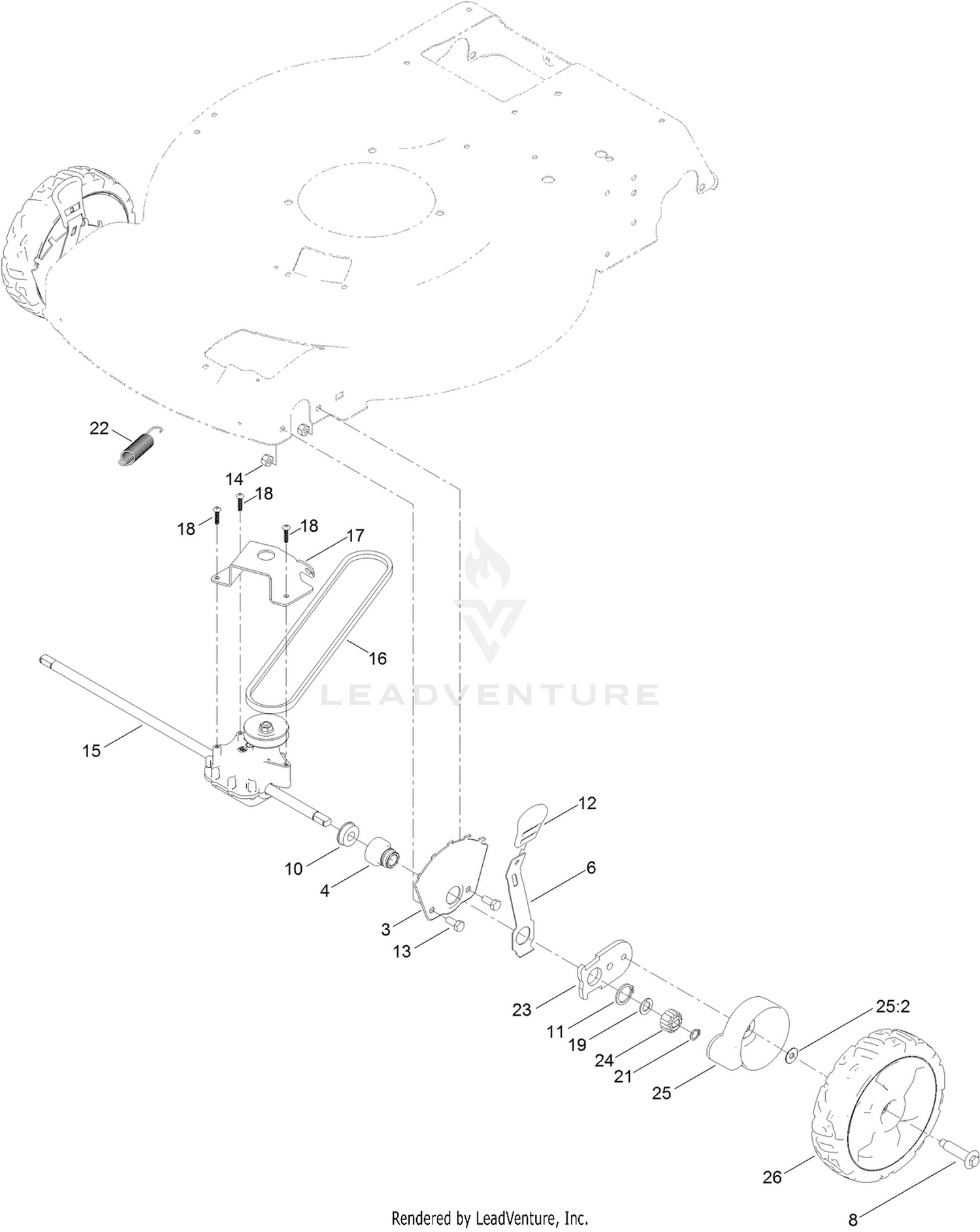

| Ref | Part Number | Description |
|---|
| 3 |
115-1956-03 |
PLATE-HOC, FRONT Price: $6.59 |
| 4 |
131-0836 |
RETAINER-BEARING, HOC Price: $9.80 |
| 6 |
105-1809 |
ARM-SPRING Price: $7.52 |
| 8 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 10 |
104-8699 |
BEARING-BALL Price: $3.28 |
| 11 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 12 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 13 |
322-3 |
SCREW-HH Price: $0.79 |
| 14 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
137-4823 |
TRANSMISSION Price: $71.58 |
| 16 |
71-9450 |
V-BELT Price: $21.88 |
| 17 |
114-7978-03 |
BRACKET-TRANSMISSION Price: $7.20 |
| 18 |
108-7476 |
SCREW-PLASTITE Price: $0.61 |
| 19 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 21 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 22 |
136-7059 |
SPRING-EXTENSION Price: $2.27 |
| 23 |
137-9184 |
ARM-PIVOT, FRONT Price: $8.00 |
| 24 |
131-5399 |
GEAR-PINION, 15T Price: $2.67 |
| 25 |
136-9057 |
GEAR COVER ASM Price: $3.79 |
