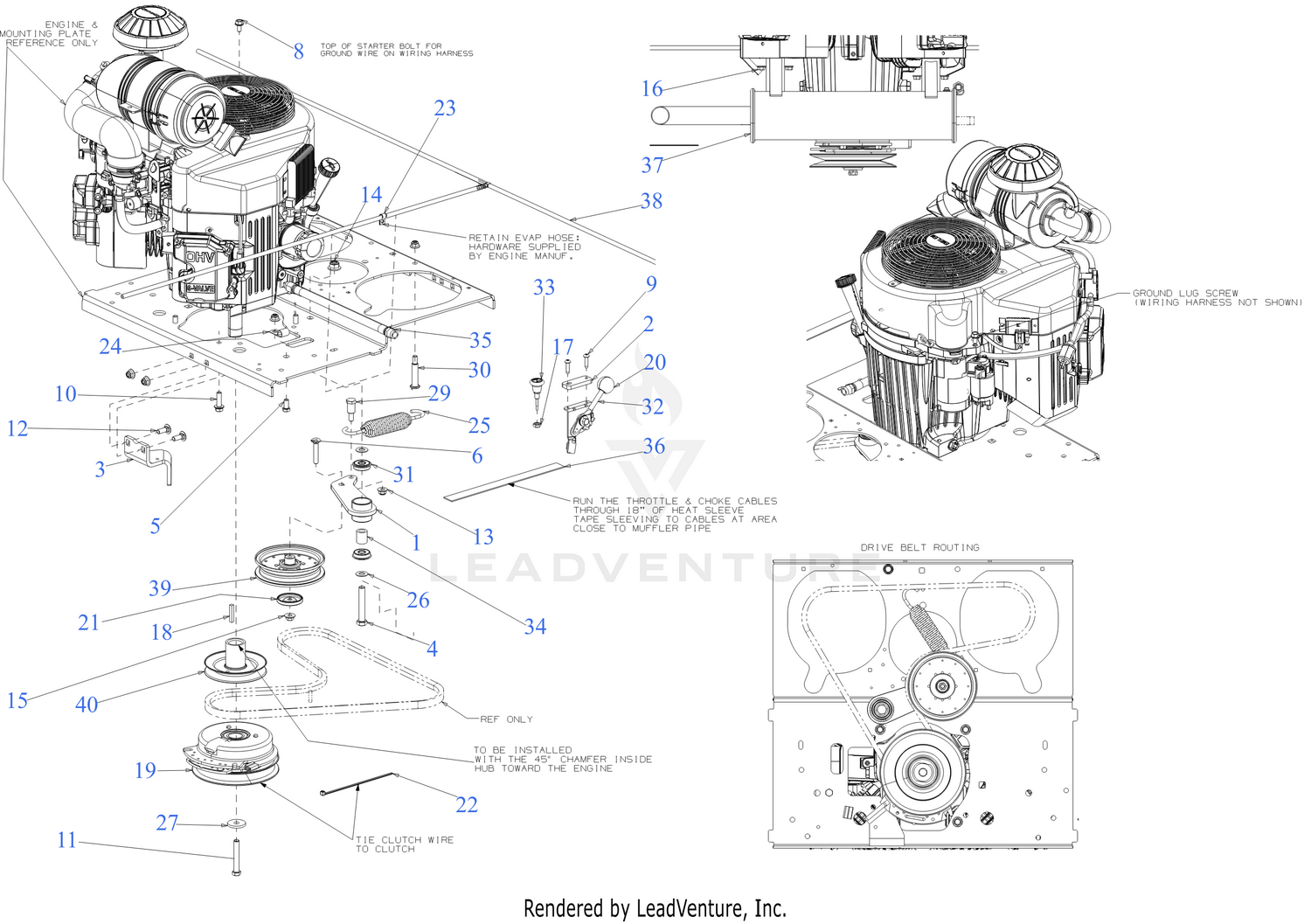

| Ref | Part Number | Description |
|---|
| 1 |
680E02788 |
IDLER BRACKET Price: $51.26 |
| 4 |
710-0182A |
SCREW-HEX 1/2-13 x 3.00 Price: $6.88 |
| 5 |
710-0216 |
HEX SCREW 3/8-16 x .75 Price: $3.93 |
| 6 |
710-04157 |
CARRIAGE BOLT 3/8-16 x 2 Price: $7.85 |
| 7 |
710-04377 |
SCREW 7/16-20:2.75 GR5 Price: $9.74 |
| 8 |
710-04748 |
SCREW M8 x 1.25 x 16MM GR8.8 Price: $3.74 |
| 9 |
710-05074 |
SCREW 1/4-20 x 1.0 Price: $2.90 |
| 10 |
710-06359A |
SCREW 3/8-16 x 1.25 GR5 Price: $4.13 |
| 11 |
710-3157A |
SCREW 7/16-20 x 3.25 GR5 Price: $9.67 |
| 12 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 13 |
712-04065 |
NUT Price: $3.68 |
| 14 |
712-04150 |
NUT Price: $3.74 |
| 15 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 16 |
712-04312 |
HEX FLANGE NUT Price: $3.37 |
| 17 |
712-0711 |
HEX JAM NUT 3/8X24 Price: $3.90 |
| 18 |
714-0118 |
SQUARE KEY 1/4 x 1.50 Price: $6.06 |
| 19 |
917-04967 |
ELECTRIC PTO CLUTCH Price: $949.86 |
| 20 |
720-05110 |
BALL KNOB Price: $19.57 |
| 21 |
721-04516 |
PULLEY CAP Price: $12.89 |
| 23 |
726-0273 |
MOUNTING CLAMP Price: $6.24 |
| 24 |
726-04124 |
J TYPE CLIP Price: $3.14 |
| 25 |
732-05446A |
EXTENSION SPRING W/HOOK Price: $19.90 |
| 26 |
736-0272 |
FLAT WASHER .510 x .995 Price: $4.37 |
| 27 |
736-3082A |
FLAT WASHER .45 x 1.5 x .172 HT Price: $9.09 |
| 29 |
738-05046 |
SHOULDER SCREW .625 x .875 x 3/18 Price: $3.74 |
| 30 |
738-06694 |
SHOULDER BOLT (.50 X 2.0 x 3/8 -16) Price: $7.04 |
| 31 |
741-05247 |
ROLLER BEARING .5X1.37X.44 Price: $11.38 |
| 32 |
946-05260 |
THROTTLE CABLE 59" Price: $73.74 |
| 33 |
946-05341B |
CHOKE CABLE Price: $60.60 |
| 34 |
750-06330 |
SPACER 0.51 x 0.88 x 1.00 Price: $5.78 |
| 35 |
751-10291D |
OIL DRAIN HOSE W/VIBRA SEAL This part replaces 751-10291C. Price: $46.52 |
| 36 |
751-11232A-24 |
HEAT SHIELD 24" Price: $83.20 |
| 37 |
951-15273 |
MUFFLER - KAWASAKI 1000 Price: $189.35 |
| 38 |
751-22789 |
EVAP HOSE Price: $37.59 |
| 39 |
756-04511B |
FLAT IDLER PULLEY Price: $49.33 |
| 40 |
756-06904 |
ENGINE PULLEY Price: $74.05 |
