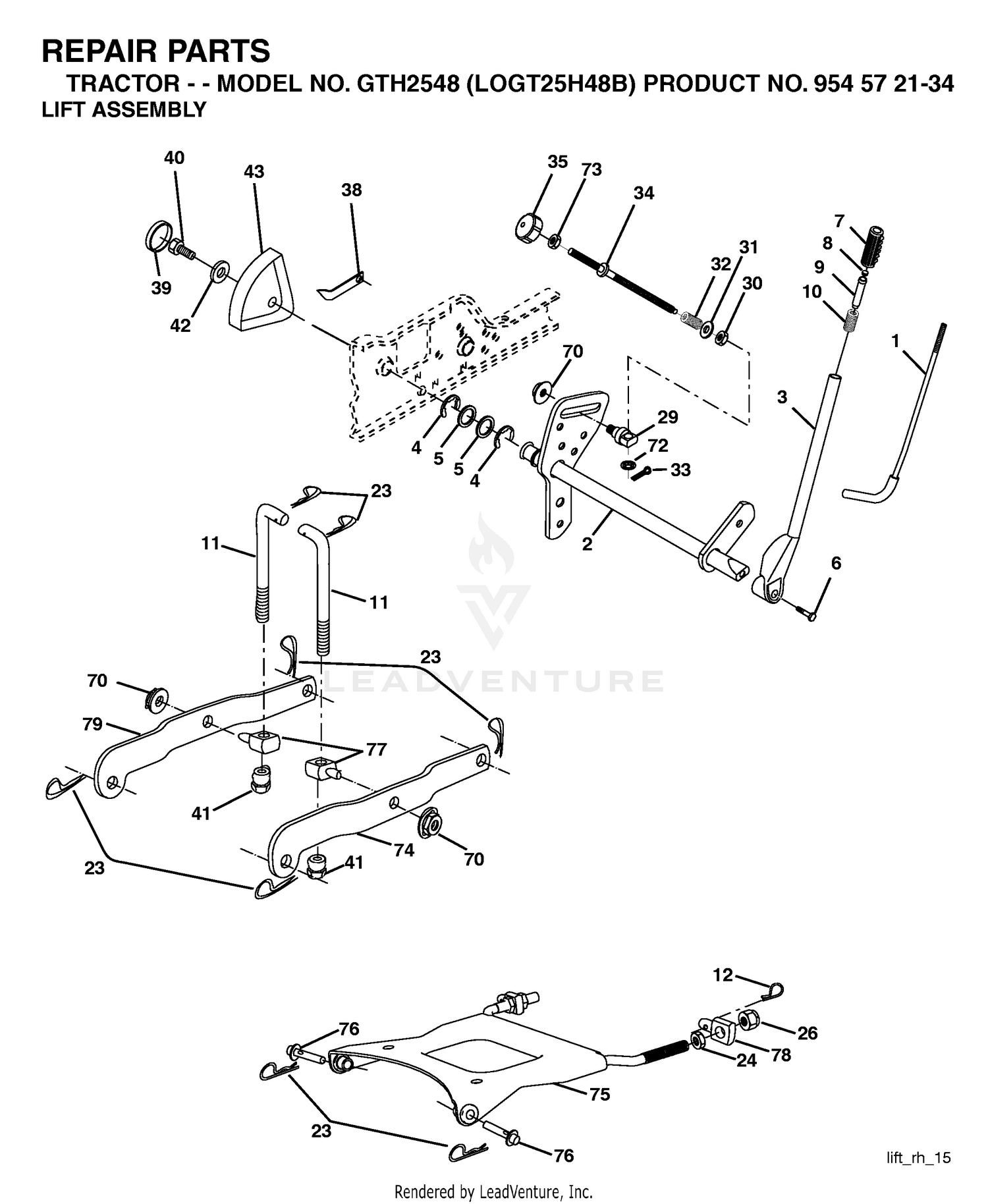

| Ref | Part Number | Description |
|---|
| 1 |
117-8029-03 |
BAND-TANK Price: $87.15 |
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 2 |
110-5082-03 |
BRACKET-ANTI SIPHON Price: $55.49 |
| 2 |
532180045 |
SHAFT ASM., LIFT VGT Price: $59.99 |
| 3 |
41140 |
ELBOW Price: $11.18 |
| 3 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 4 |
100-6779 |
COUPLING-FEMALE Price: $58.88 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 5 |
41316 |
ADAPTER-QUICK Price: $31.51 |
| 5 |
819292016 |
Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99 |
| 6 |
110-5090 |
GROMMET Price: $7.08 |
| 6 |
871110624 |
Bolt, Fin Hex 3/8-16 x 1-1/12 Price: $2.99 |
| 7 |
110-5088 |
HOSE-FILL Price: $18.92 |
| 8 |
117-7928 |
ADAPTER ASM Price: $36.88 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
130-7096 |
FILTER ASM Price: $109.22 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
121-5003 |
SUCTION TUBE ASM Price: $197.40 |
| 10 |
532183894 |
SPRING 0.620D X 2.125 Price: $4.99 |
| 11 |
117-7996 |
FORK Price: $9.74 |
| 11 |
532181576 |
LIFT LINK This part replaces 532175375. Price: $9.99 |
| 12 |
100-8635 |
FORK Price: $4.91 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 13 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 14 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 15 |
120-0649 |
BOLT-TAP HH Price: $12.44 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
119-5019 |
STOP-LID Price: $29.34 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
131-3316 |
DECAL-TANK Price: $37.16 |
| 22 |
120-0622 |
DECAL-WARNING Price: $9.31 |
| 23 |
42452 |
CAP-PROTECTIVE Price: $1.13 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 24 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 25 |
100-6991 |
ELEMENT-FILTER, GREEN Price: $63.09 |
| 25 |
100-6992 |
ELEMENT-FILTER, RED Price: $64.02 |
| 25 |
100-8642 |
SCREEN-SUCTION Price: $64.17 |
| 26 |
100-8641 |
VANE-SCREEN Price: $32.05 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 27 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 28 |
119-9419 |
BASKET-FILTER Price: $119.92 |
| 29 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
130-7139 |
SHIELD-HEAT TAPE, FRONT Price: $47.05 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
130-7140 |
SHIELD-HEAT TAPE, BOTTOM Price: $114.99 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
130-7141 |
SHIELD-HEAT TAPE, SUMP Price: $26.13 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
131-3298 |
SHIELD-HEAT TAPE, SUMP, FRONT Price: $27.50 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 38 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 40 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 41 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 70 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 72 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 74 |
532175802 |
ARM SUSP REAR RH Price: $84.99 |
| 75 |
532175805 |
PLATE ASM SUSP FRONT Price: $69.99 |
| 76 |
532175560 |
PIN.FLANGE Price: $11.99 |
| 77 |
532176205 |
TRUNNION Price: $6.99 |
| 78 |
532175689 |
TRUNNION Price: $3.99 |
| 79 |
532175378 |
ARM SUSP. REAR LH Price: $44.99 |
