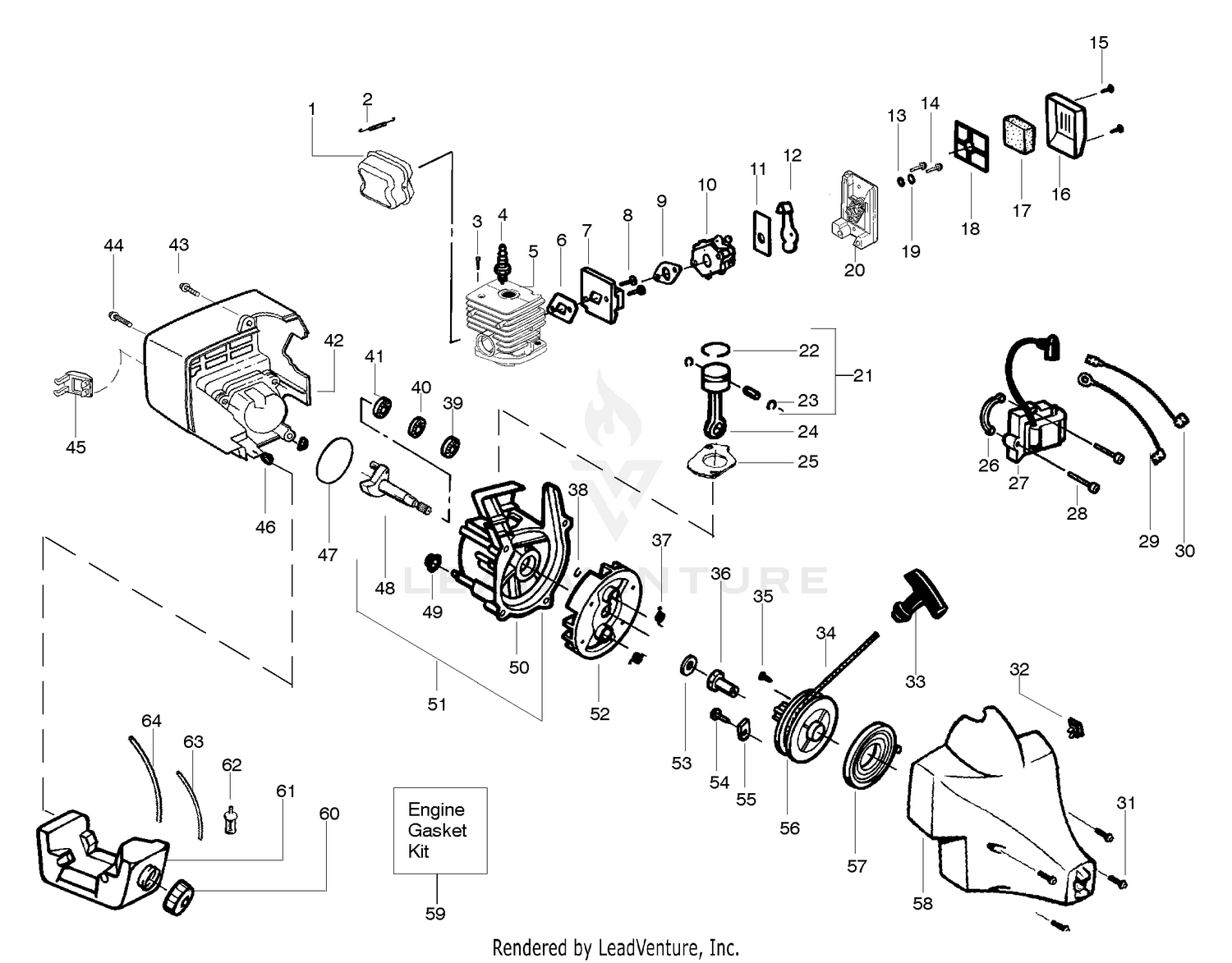

Engine Assembly Type 4
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38-6690 | DISCONTINUED Price: Call Us |
| 2 | 29-1510 | DISCONTINUED Price: Call Us |
| 2 | 530042088 | Muffler Spring Price: $1.99 |
| 3 | 38-6680 | DISCONTINUED Price: Call Us |
| 3 | 530015953 | Screw-Cylinder Price: $1.99 |
| 4 | 218-489 | HOLDER-FUSE Price: $41.19 |
| 4 | 952030249 | Spark Plug (RCJ 6Y) Price: $3.99 |
| 5 | 39-5840 | DISCONTINUED Price: Call Us |
| 5 | 530012416 | Cylinder This part replaces 530071359. Price: $17.99 |
| 6 | 530071363 | Gasket-Cyl/Carb.(kit) Price: $5.99 |
| 7 | 530056404 | Adaptor-carb. Price: $3.99 |
| 8 | 530016014 | Screw Price: $1.99 |
| 9 | 530071363 | Gasket-Carb.(kit) Price: $5.99 |
| 11 | 530038747 | Plate-Choke Mounting Price: $1.99 |
| 12 | 530035499 | Lever-Choke Price: $1.99 |
| 13 | 530015254 | Washer Price: $1.99 |
| 14 | 530016353 | Screw Price: $1.99 |
| 15 | 530015892 | Screw Price: $1.99 |
| 16 | 530054414 | Cover-Air Box Price: $3.99 |
| 17 | 530036575 | Foam-Air Filter Price: $1.99 |
| 18 | 530036569 | Plate-Air Filter Support Price: $1.99 |
| 19 | 530015852 | Spacer-Choke Price: $1.99 |
| 20 | 530052431 | Box-Air Price: $1.99 |
| 22 | 545154001 | RING PISTON This part replaces 530055120. Price: $1.99 |
| 23 | 530015162 | Retainer-Piston Pin Price: $1.99 |
| 24 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 25 | 530071363 | Gasket-Cylinder(kit) Price: $5.99 |
| 26 | 530036145 | Spacer-Module Price: $1.99 |
| 27 | 545081826 | Kit - Ignition Module This part replaces 530039211. Price: $32.99 |
| 28 | 530015954 | Screw Price: $1.99 |
| 29 | 530054448 | Assy-Ground Wire Price: $1.99 |
| 30 | 530054449 | Assy-Leadwire Price: $1.99 |
| 31 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 32 | 530069572 | Kit-Switch Price: $4.99 |
| 33 | 530027569 | Handle-Starter Price: $1.99 |
| 34 | 530071325 | Kit - Rope Price: $3.99 |
| 35 | 530016326 | Screw Price: $1.99 |
| 36 | 530027953 | Coupling-Drive Price: $1.99 |
| 37 | 530023817 | Spring-Starter Dog Price: $1.99 |
| 38 | 530015941 | Retain. Ring-C'shaft Price: $1.99 |
| 39 | 530055728 | Bearing-Outer Price: $6.99 |
| 40 | 530071615 | Seal-C'case Price: $4.99 |
| 41 | 530032125 | Bearing-Inner Price: $11.99 |
| 42 | 530056943 | Shroud Price: $9.99 |
| 43 | 530015880 | Screw Price: $1.99 |
| 44 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 45 | 530054536 | Guard-Muffler Price: $1.99 |
| 46 | 530036793 | Isolator-Shroud Price: $5.99 |
| 47 | 530071363 | O-Ring-C'case(kit) Price: $5.99 |
| 48 | 530012413 | Assy-Crankshaft Price: $14.99 |
| 49 | 530036792 | Isolator-Crankcase Price: $4.99 |
| 52 | 545221701 | FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 53 | 530015828 | Washer-Flat Price: $1.99 |
| 54 | 530015775 | Screw Price: $1.99 |
| 55 | 530053985 | Retainer-Can Price: $0.99 |
| 57 | 545008011 | KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 58 | 530071415 | Assy-Fan Housing Price: $14.99 |
| 60 | 530014347 | Assy-Fuel Cap Price: $4.99 |
| 62 | 530095646 | Assy-Fuel Pickup Price: $2.99 |
| 63 | 530069247 | Kit-Fuel Line Price: $3.99 |
