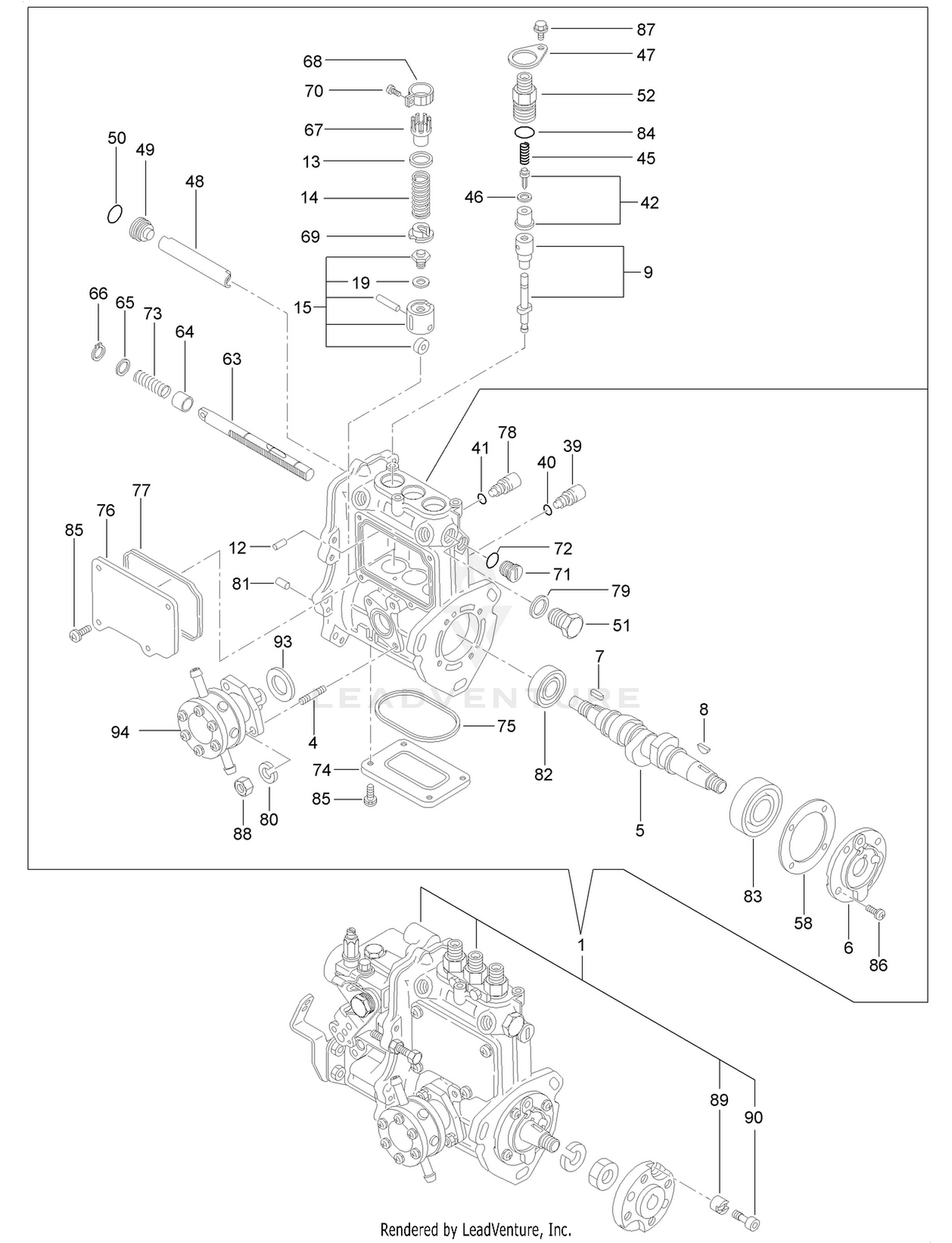

Fuel Injection Pump Assembly
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-1544 | INJECTION PUMP ASM Price: $3,536.83 |
| 4 | 135-4205 | BOLT-STUD Price: $4.49 |
| 5 | 134-1418 | CAMSHAFT Price: $285.11 |
| 6 | 134-1419 | SUPPORT-CAMSHAFT Price: $44.23 |
| 7 | 134-1420 | KEY-FEATHER, PARALLEL Price: $4.38 |
| 8 | 135-4206 | KEY-FEATHER, WOODRUFF Price: $4.49 |
| 9 | 134-1446 | FUEL PLUNGER ASM Price: $135.95 |
| 12 | 134-1489 | PIN Price: $6.16 |
| 13 | 134-1521 | RETAINER-SPRING Price: $6.03 |
| 14 | 134-1421 | SPRING-PLUNGER Price: $8.58 |
| 15 | 134-1422 | TAPPET ASM Price: $66.40 |
| 19 | 134-1496 | ADJUSTING SHIM SET Price: $88.03 |
| 39 | 125-7156 | STOPPER Price: $4.35 |
| 40 | 135-4207 | O-RING Price: $2.69 |
| 41 | 135-4207 | O-RING Price: $2.69 |
| 42 | 134-1423 | DELIVERY VALVE ASM Price: $72.70 |
| 45 | 134-1424 | SPRING-DELIVERY Price: $4.47 |
| 46 | 134-1464 | GASKET-DELIVERY Price: $2.90 |
| 47 | 134-1379 | PLATE-LOCKING Price: $16.10 |
| 48 | 135-4209 | DEFLECTOR Price: $13.99 |
| 49 | 135-4210 | PLUG-DEFLECTOR Price: $11.99 |
| 50 | 135-4211 | O-RING Price: $3.29 |
| 51 | 135-4212 | PLUG-DEFLECTOR Price: $7.69 |
| 52 | 134-1522 | DELIVERY VALVE ASM Price: $91.91 |
| 58 | 134-1490 | ADJUSTING SHIM SET Price: $22.46 |
| 63 | 134-1427 | RACK-CONTROL Price: $91.65 |
| 64 | 134-1491 | BUSHING-RACK Price: $19.67 |
| 65 | 134-1492 | SPACER Price: $12.92 |
| 66 | 134-1493 | CIRCLIP Price: $2.20 |
| 67 | 134-1494 | PINION-CONTROL Price: $53.77 |
| 68 | 134-1468 | PINION Price: $34.78 |
| 69 | 134-1428 | RETAINER-SPRING Price: $30.36 |
| 70 | 134-1469 | SCREW-PINION Price: $16.53 |
| 71 | 135-4213 | PLUG-RACK Price: $12.99 |
| 72 | 135-4214 | O-RING Price: $3.29 |
| 73 | 134-1495 | SPRING-RACK Price: $6.62 |
| 74 | 135-4215 | COVER Price: $6.99 |
| 75 | 135-4216 | GASKET Price: $10.99 |
| 76 | 135-4217 | COVER Price: $23.99 |
| 77 | 135-4218 | GASKET Price: $10.99 |
| 78 | 135-4219 | STOPPER-RACK Price: $11.99 |
| 79 | 136-8236 | WASHER-SEAL Price: $3.34 |
| 80 | 134-1526 | WASHER-SPRING Price: $4.09 |
| 81 | 125-7183 | PIN-SPRING Price: $2.93 |
| 82 | 134-1533 | BEARING-BALL Price: $10.46 |
| 83 | 134-1534 | BEARING-BALL Price: $10.46 |
| 84 | 134-1536 | O-RING Price: $7.26 |
| 85 | 135-4221 | SCREW Price: $1.69 |
| 86 | 134-1539 | SCREW Price: $2.74 |
| 87 | 134-1540 | BOLT Price: $2.74 |
| 88 | 127-4775 | NUT Price: $3.00 |
| 89 | 134-1425 | COLLAR Price: $40.49 |
| 90 | 134-1426 | BOLT Price: $18.23 |
| 93 | 135-4223 | GASKET Price: $4.19 |
