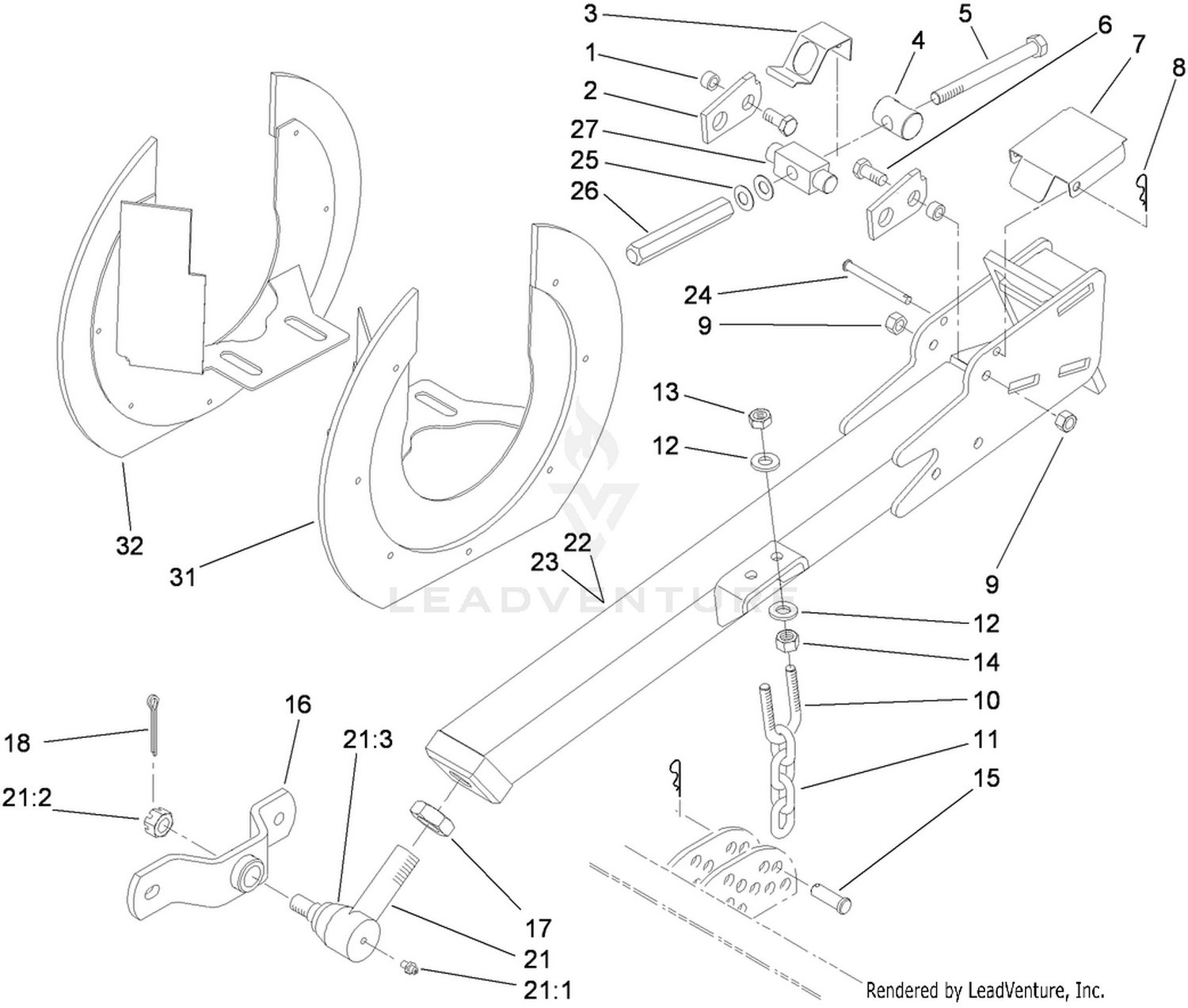

| Ref | Part Number | Description |
|---|
| 1 |
93-4618 |
SPACER-PIVOT Price: $5.71 |
| 2 |
93-4675 |
PLATE-RELEASE Price: $16.42 |
| 3 |
93-4818 |
SPRING-LEVER Price: $61.95 |
| 4 |
93-4676 |
SHAFT-LATCH Price: $65.68 |
| 5 |
3213-24 |
SCREW-HH Price: $14.59 |
| 6 |
33115-025 |
SCREW-HH Price: $0.61 |
| 7 |
99-5769-01 |
COVER-LATCH Price: $17.26 |
| 8 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 9 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 10 |
104-0108 |
U-BOLT Price: $7.10 |
| 11 |
95-6231 |
CHAIN-HOC Price: $14.75 |
| 12 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 13 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 14 |
3217-9 |
NUT-HH Price: $0.37 |
| 15 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 16 |
140-5809 |
SUPPORT-HUB This part replaces 93-4583. Price: $40.20 |
| 17 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 18 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 21 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 22 |
99-5785-01 |
RH ARM ASM Price: $862.36 |
| 23 |
99-5786-01 |
LH ARM ASM Price: $597.80 |
| 24 |
283-88 |
PIN-CLEVIS Price: $5.77 |
| 25 |
3290-413 |
WASHER-BELLEVILLE Price: $3.69 |
| 26 |
93-4678 |
LEVER-RELEASE Price: $74.29 |
| 27 |
93-4677 |
HUB-RELEASE Price: $75.50 |
| 31 |
104-0140 |
LH SHIELD ASM Price: $284.01 |
