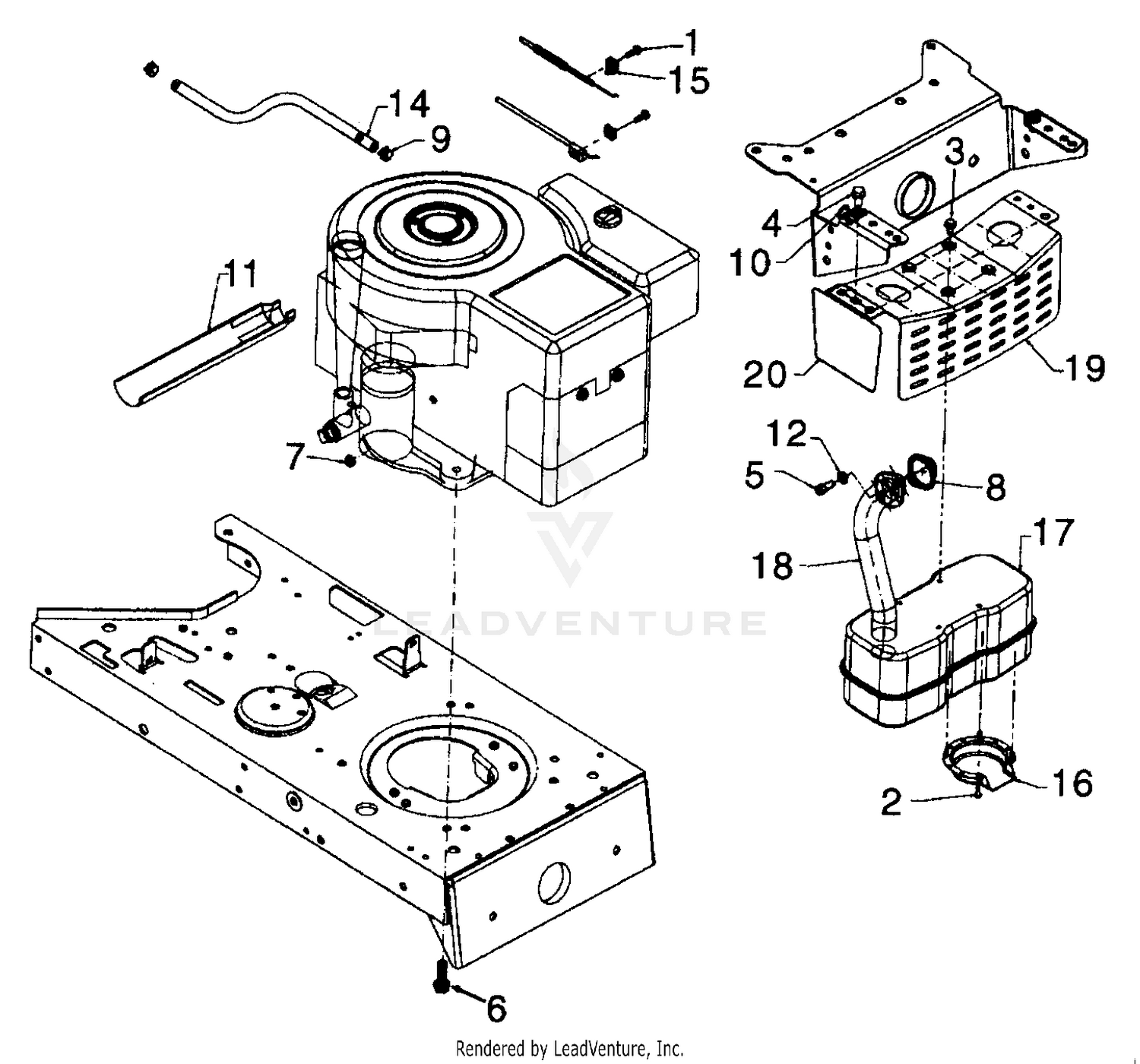

Muffler (Part 3)

Muffler (Part 3)

Parts (16)

RefPart NumberDescription
1 710-1237 Hex Wash. Scr. #10-32 x .62" Price: $3.89
2 710-0148 Hex Tap Scr. #8-32 x .38" Lg. Price: $3.90
3 710-0599 Hex TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86
4 710-0604A Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96
5 710-1314A Socket Screw, 5/16-18 x .750 This part replaces 710-1314. Price: $4.05
6 710-1315 Hex TT-Tap Scr. 3/8-16 x 1.25" Price: $3.90
7 712-0271 Hex Sems Scr. 1/4-20 Thd. Price: $3.78
8 BS-692236 Gasket-Exhaust This part replaces 721-0208. Price: $4.66
9 726-0205 Hose Clamp Price: $3.71
10 726-0272 Clamp Price: $6.24
12 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
14 751-10349-13 FUEL HOSE LOW PERMEATION This part replaces 751-0535-12. Price: $15.58
15 BS-690798 Cable Clamp (B&S) This part replaces 751B213146. Price: $4.88
16 751-0564B Muffler Deflector This part replaces 7510564. Price: $12.14
17 951-0617C Single Inlet Muffler This part replaces 751-0617. Price: $138.70
18 751-0619B EXHAUST PIPE Not Available This part replaces 751-0619. Price:
