| Ref | Part Number | Description |
|---|
| 1 |
100-2217 |
CLIP-PIPE This part replaces 98-9545. Price: $5.59 |
| 2 |
98-9384 |
TUBE-FUEL Price: $1.35 |
| 3 |
98-9596 |
JOINT-EYE Price: $18.69 |
| 4 |
98-9361 |
BOLT-HSH Price: $0.76 |
| 5 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 6 |
98-9643 |
INJECTION PUMP ASM Price: $2,551.99 |
| 7 |
98-9456 |
SHIM-INJECTION (0.20MM) Price: $7.29 |
| 7 |
98-9457 |
SHIM-INJECTION (0.25MM) Price: $8.40 |
| 8 |
98-9458 |
SHIM-INJECTION (0.30MM) Price: $12.10 |
| 9 |
98-9438 |
STUD Price: $1.33 |
| 10 |
98-9440 |
NUT-CAP Price: $18.34 |
| 503143701 |
503143701 |
SEALING Price: $5.99 |
| 503200220 |
503200220 |
SCREW Price: $2.99 |
| 503217565 |
503217565 |
SCREW Price: $4.99 |
| 503281217 |
503281217 |

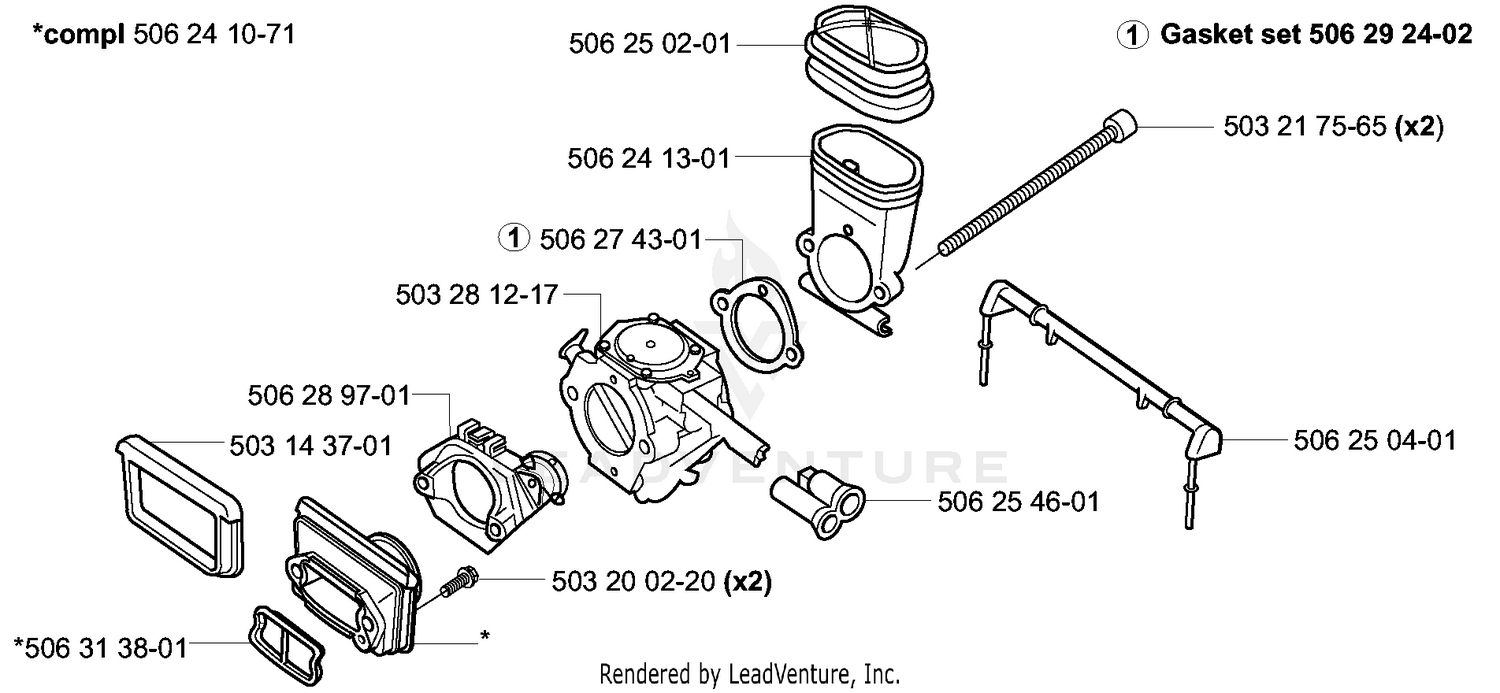

CARBURETOR WGA WALBRO Price: $279.00 |
| 506241071 |
506275202 |
FLANGE INLET - CYL ASSY This part replaces 506241071. Price: $39.99 |
| 506241301 |
506241301 |
AIR HORN Price: $14.99 |
| 506250201 |
506250201 |
COLLAR Price: $9.99 |
| 506250401 |
506250401 |
BRACKET Price: $11.99 |
| 506254601 |
506254601 |
GUIDE Price: $5.99 |
| 506274301 |
579851101 |
GASKET K1270 This part replaces 506274301. Price: $3.99 |
| 506289701 |
506289701 |
FLANGE Price: $22.99 |
| 506292402 |
506292404 |
GASKET KIT K1260 This part replaces 506292402. Price: $9.99 |
