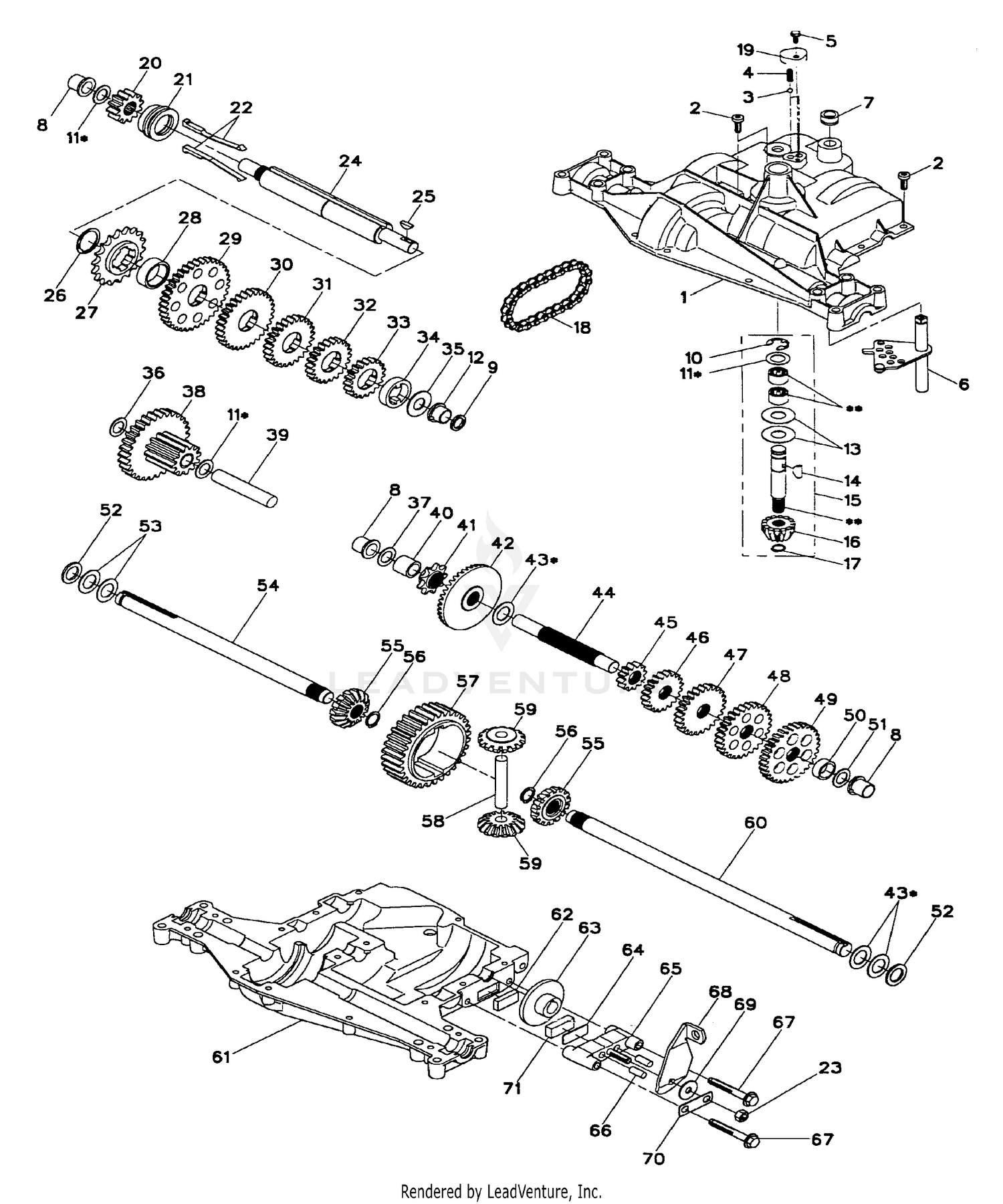

| Ref | Part Number | Description |
|---|
| 1 |
160939 |
Housing, Upper Price: Call Us |
| 1 |
98-9589 |
NUT Price: $1.46 |
| 2 |
2274J |
Screw, Tapping, 1/4-20 X .734 Price: Call Us |
| 2 |
98-9594 |
WASHER-PLAIN Price: $2.49 |
| 3 |
134400 |
Ball, Detent Price: Call Us |
| 3 |
98-9662 |
LEVER-CONTROL, SPEED Price: $72.44 |
| 4 |
105904X |
Spring, Detent Price: Call Us |
| 4 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 5 |
160940 |
Screw, Tapping, No.10-24 X .482 Price: Call Us |
| 5 |
98-9572 |
LEVER-CONTROL, SPEED Price: $47.15 |
| 6 |
138235 |
Assy, Shifter Price: Call Us |
| 6 |
98-9371 |
O-RING Price: $2.56 |
| 7 |
108727X |
V-Ring Price: Call Us |
| 7 |
98-7572 |
NUT Price: $0.32 |
| 8 |
148266 |
Bearing, Flange Price: Call Us |
| 8 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 9 |
148269 |
Seal, Oil Price: Call Us |
| 9 |
98-9661 |
CONTROL PLATE ASM Price: $167.65 |
| 10 |
2225J |
Ring, Retaining Price: Call Us |
| 10 |
98-9362 |
STUD Price: $0.66 |
| 11 |
134793 |
Assy, Kit, Shim, .625 Shaft Price: Call Us |
| 11 |
98-9658 |
GOVERNOR LEVER ASM Price: $34.84 |
| 12 |
148268 |
Bearing, Flange Price: Call Us |
| 12 |
98-9637 |
GASKET Price: $3.98 |
| 13 |
120415X |
Washer, Plain, .632 X 1.38 X .046 Price: Call Us |
| 13 |
98-9664 |
SHAFT-LEVER, STOP Price: $33.92 |
| 14 |
142674 |
Key, Woodruff, No. 9 Price: Call Us |
| 14 |
98-9472 |
SPRING-RETURN Price: $8.91 |
| 15 |
161563 |
Assy, Kit, Input Shaft Price: Call Us |
| 15 |
98-7692 |
BOLT Price: $0.92 |
| 16 |
161564 |
Pinion, Bevel, 12T Price: Call Us |
| 16 |
98-7601 |
SEAL-OIL Price: $7.88 |
| 17 |
105909X |
Ring, Retaining Price: Call Us |
| 17 |
98-9663 |
LEVER-STOP, ENGINE Price: $13.34 |
| 18 |
105910X |
Chain, 24 Pitches Price: Call Us |
| 18 |
99-8348 |
BOLT Price: $0.24 |
| 19 |
160942 |
Cover, Detent Price: Call Us |
| 20 |
160943 |
Gear, Spur, 12T Price: Call Us |
| 21 |
148267 |
Collar, Clutch Price: Call Us |
| 22 |
138236 |
Assy, Kit, Clutch Keys Price: Call Us |
| 23 |
73810500 |
Nut, Lock, 5/16-24 Price: Call Us |
| 24 |
142676 |
Shaft, Intermediate Price: Call Us |
| 25 |
2244J |
Key, Woodruff, No. 61 Price: Call Us |
| 26 |
105916X |
Ring, Retaining Price: Call Us |
| 27 |
120470X |
Sprocket, 18T Price: Call Us |
| 28 |
110070X |
Spacer, 1.131 X 1.45 X .494 Price: Call Us |
| 29 |
142677 |
Gear, Spur, 37T Price: Call Us |
| 30 |
124644X |
Gear, Spur, 30T Price: Call Us |
| 31 |
108980X |
Gear, Spur, 25T Price: Call Us |
| 32 |
120406X |
Gear, Spur, 22T Price: Call Us |
| 33 |
134796 |
Gear, Spur, 19T Price: Call Us |
| 34 |
134797 |
Spacer, 1.133 X 1.50 X .375 Price: Call Us |
| 35 |
105925X |
Washer, Plain, .640 X 1.37 X .061 Price: Call Us |
| 36 |
2228J |
Washer, Plain, .632 X 1.00 X .046 Price: Call Us |
| 37 |
2231J |
Washer, Plain, .632 X 1.00 X .031 Price: Call Us |
| 38 |
160944 |
Assy, Gear, Comb., 12T & 30T Price: Call Us |
| 39 |
124639X |
Shaft, Idler Price: Call Us |
| 40 |
120472X |
Spacer, .633 X .87 X .755 Price: Call Us |
| 41 |
105928X |
Sprocket, 9T Price: Call Us |
| 42 |
161565 |
Gear, Bevel, 36T Price: Call Us |
| 43 |
134394 |
Assy, Kit, Shim, .750 Shaft Price: Call Us |
| 44 |
120473X |
Shaft, Drive Price: Call Us |
| 45 |
142678 |
Gear, Spur, 12T Price: Call Us |
| 46 |
124641X |
Gear, Spur, 20T Price: Call Us |
| 47 |
106589X |
Gear, Spur, 25T Price: Call Us |
| 48 |
120408X |
Gear, Spur, 28T Price: Call Us |
| 49 |
105937X |
Gear, Spur, 31T Price: Call Us |
| 50 |
105936X |
Spacer, .781 x 1.00 x .375 Price: Call Us |
| 51 |
2226J |
Washer, Plain, .632 X 1.00 X .060 Price: Call Us |
| 52 |
134401 |
Washer, Neoprene Price: Call Us |
| 53 |
2264J |
Washer, Plain, .758X 1.25X .031 Price: Call Us |
| 54 |
160946 |
Axle, LH Price: Call Us |
| 55 |
160947 |
Gear, Miter, 12T Price: Call Us |
| 56 |
160948 |
Ring, Retaining Price: Call Us |
| 57 |
110071X |
Gear, Spur, 32T Price: Call Us |
| 58 |
120952X |
Shaft, Cross Price: Call Us |
| 59 |
160949 |
Gear, Miter, 12T Price: Call Us |
| 60 |
160950 |
Axle, RH Price: Call Us |
| 61 |
142680 |
Housing, Lower Price: Call Us |
| 62 |
120961X |
Puck, Friction Price: Call Us |
| 63 |
7294J |
Disc, Brake Price: Call Us |
| 64 |
108989X |
Spacer, Brake Puck Price: Call Us |
| 65 |
160952 |
Jaw, Brake Price: Call Us |
| 66 |
120954X |
Pin, Dowel Price: Call Us |
| 67 |
160953 |
Screw, Tapping, 5/16-18 X 2.35 Price: Call Us |
| 68 |
138244 |
Lever, Actuating Price: Call Us |
| 69 |
108996X |
Washer, Plain, .321 X 1.00 X .055 Price: Call Us |
| 70 |
160954 |
Bracket, Anti-Rotation Price: Call Us |
| 71 |
120951X |
Puck, Friction Price: Call Us |
