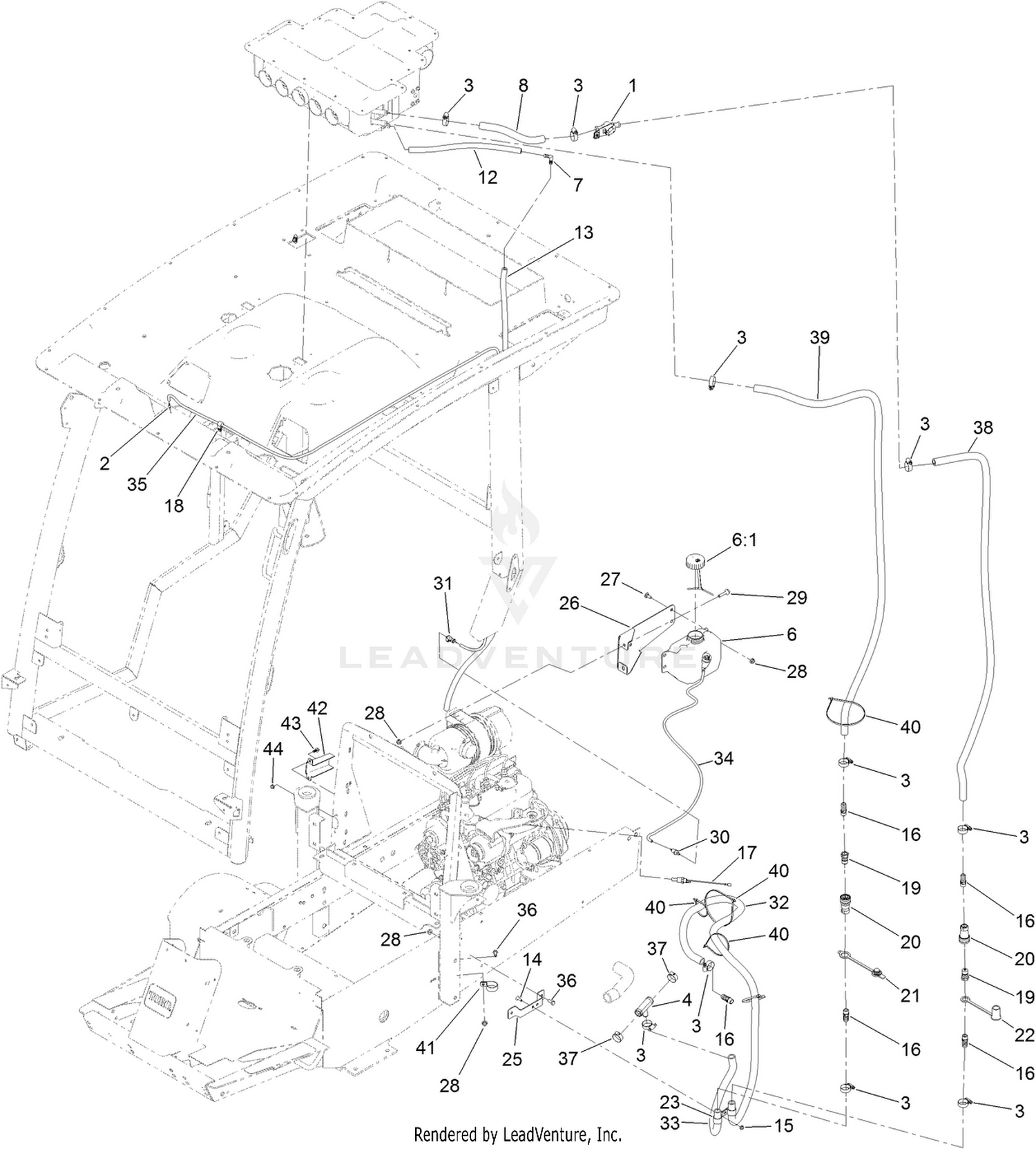

Heater Hose Routing and Washer Bottle Assembly
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-4947 | VALVE-HEATER Price: $111.55 |
| 2 | 127-9905 | FITTING-HOSE, BARB Price: $6.73 |
| 3 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 4 | 132-3416 | TEE Price: $57.86 |
| 6 | 138-2702 | TANK-FLUID, WASHER This part replaces 125-5257. Price: $152.45 |
| 7 | 130-0578 | FITTING-BARB, 90 DEG Price: $2.36 |
| 8 | 125-9706 | HOSE-HEATER Price: $8.92 |
| 12 | 125-9865 | HOSE-DRAIN Price: $9.63 |
| 13 | 125-9866 | HOSE-DRAIN Price: $37.15 |
| 14 | 1-807512 | BOLT-CARR Price: $1.29 |
| 15 | 104-7201 | NUT-HF Price: $0.69 |
| 16 | 117-9410 | FITTING-STRAIGHT Price: $15.83 |
| 17 | 112-6347 | SWITCH-TEMP, DUAL Price: $241.34 |
| 18 | 2412-73 | CLAMP-R Price: $2.56 |
| 19 | 125-9680 | COUPLER-MALE Price: $43.49 |
| 20 | 125-9679 | COUPLER-FEMALE Price: $120.40 |
| 21 | 105-7962 | PLUG-DUST Price: $8.43 |
| 22 | 105-7963 | CAP-DUST Price: $10.31 |
| 23 | 2412-39 | CLAMP-R Price: $1.70 |
| 25 | 130-5845-01 | BRACKET-COUPLER Price: $49.97 |
| 26 | 130-5898-03 | BRACKET-MOUNT, BOTTLE Price: $64.02 |
| 27 | 3230-23 | SCREW-CARR Price: $0.89 |
| 28 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 29 | 112-9318 | SCREW-HHF, LOCKING Price: $1.38 |
| 30 | 130-5794 | FITTING-STRAIGHT Price: $28.04 |
| 31 | 130-5795 | FITTING-STRAIGHT Price: $26.20 |
| 32 | 130-6145 | HOSE-HEATER Price: $31.84 |
| 33 | 130-6146 | HOSE-HEATER Price: $14.84 |
| 34 | 130-6147 | HOSE-WASHER FLUID Price: $9.77 |
| 35 | 130-6148 | HOSE-WASHER FLUID Price: $21.65 |
| 36 | 322-3 | SCREW-HH Price: $0.79 |
| 37 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 38 | 130-6143 | HOSE-HEATER Price: $31.84 |
| 39 | 130-6144 | HOSE-HEATER Price: $36.00 |
| 40 | 3290-379 | TIE-CABLE Price: $0.31 |
| 41 | 2412-74 | R-CLAMP Price: $2.37 |
| 42 | 132-3713-03 | COVER-HARNESS Price: $19.16 |
| 43 | 99-6810 | SCREW-HHF Price: $3.09 |
