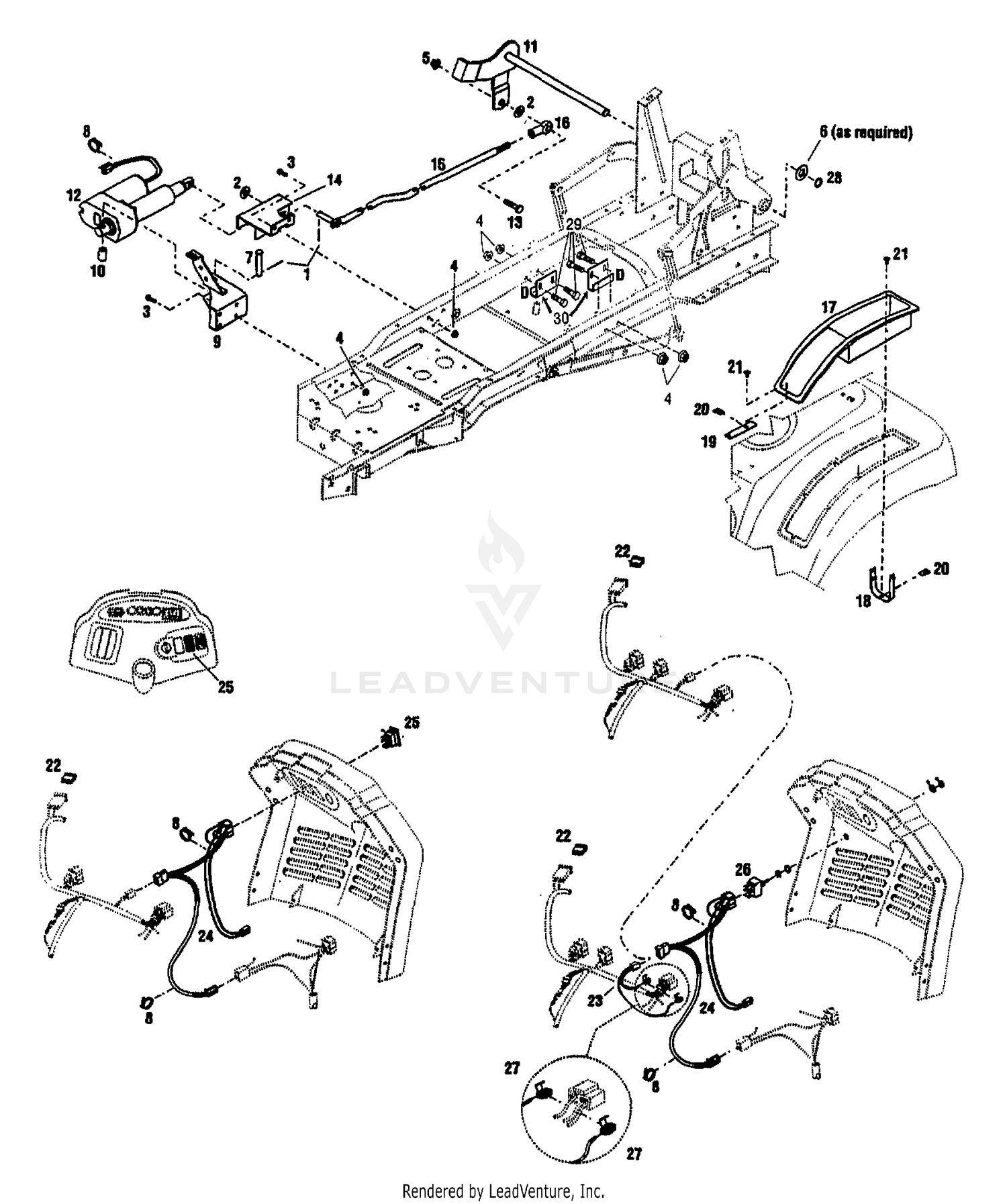

| Ref | Part Number | Description |
|---|
| 1 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 2 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 3 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 4 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 5 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1186397. Price: $3.61 |
| 6 |
1701447 |
WASHER-1.25X.765X.049 Price: $3.93 |
| 7 |
1706621 |
CLEVIS PIN .5X2.75 Not Available Price: |
| 9 |
1770688001 |
SUPPORT FRONT (BLACK) Not Available Price: |
| 10 |
1770694 |
SPACER Price: Call Us |
| 11 |
1771674 |
PIVOT LIFT ARM ASSY. Price: Call Us |
| 12 |
1771678 |
ACTUATOR Price: Call Us |
| 13 |
1771784 |
SCR-SPECIA Not Available Price: |
| 14 |
1771799001 |
SUPPORT-REAR Price: Call Us |
| 15 |
1771802 |
LIFT ROD Not Available Price: |
| 16 |
1771814 |
ROD-END Not Available Price: |
| 17 |
1771873 |
BOX-UTILIT Not Available Price: |
| 18 |
1772088 |
RETAINER-U Not Available Price: |
| 19 |
1772156 |
RETAINER-UTILITY BOX Not Available Price: |
| 20 |
1772157 |
SPEED NUT-1/4-20 Not Available Price: |
| 21 |
1772164 |
SCR-1/4-20X5/8 Not Available Price: |
| 22 |
725-1543 |
Fuse, 30 Amp This part replaces 1743516. Price: $3.90 |
| 23 |
1771843 |
ADAPTER HARNESS Price: Call Us |
| 24 |
1771681 |
HARNESS-ACTUATOR Price: Call Us |
| 25 |
1771668 |
SWITCH ROC Not Available Price: |
| 26 |
1771813 |
SWITCH-TOG Not Available Price: |
| 27 |
1721038 |
CONNECTOR Not Available Price: |
| 28 |
N/A |
RETAINING RING |
| 29 |
1100044 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 30 |
1766086001 |
STOP-MOWER DECK Not Available Price: |
