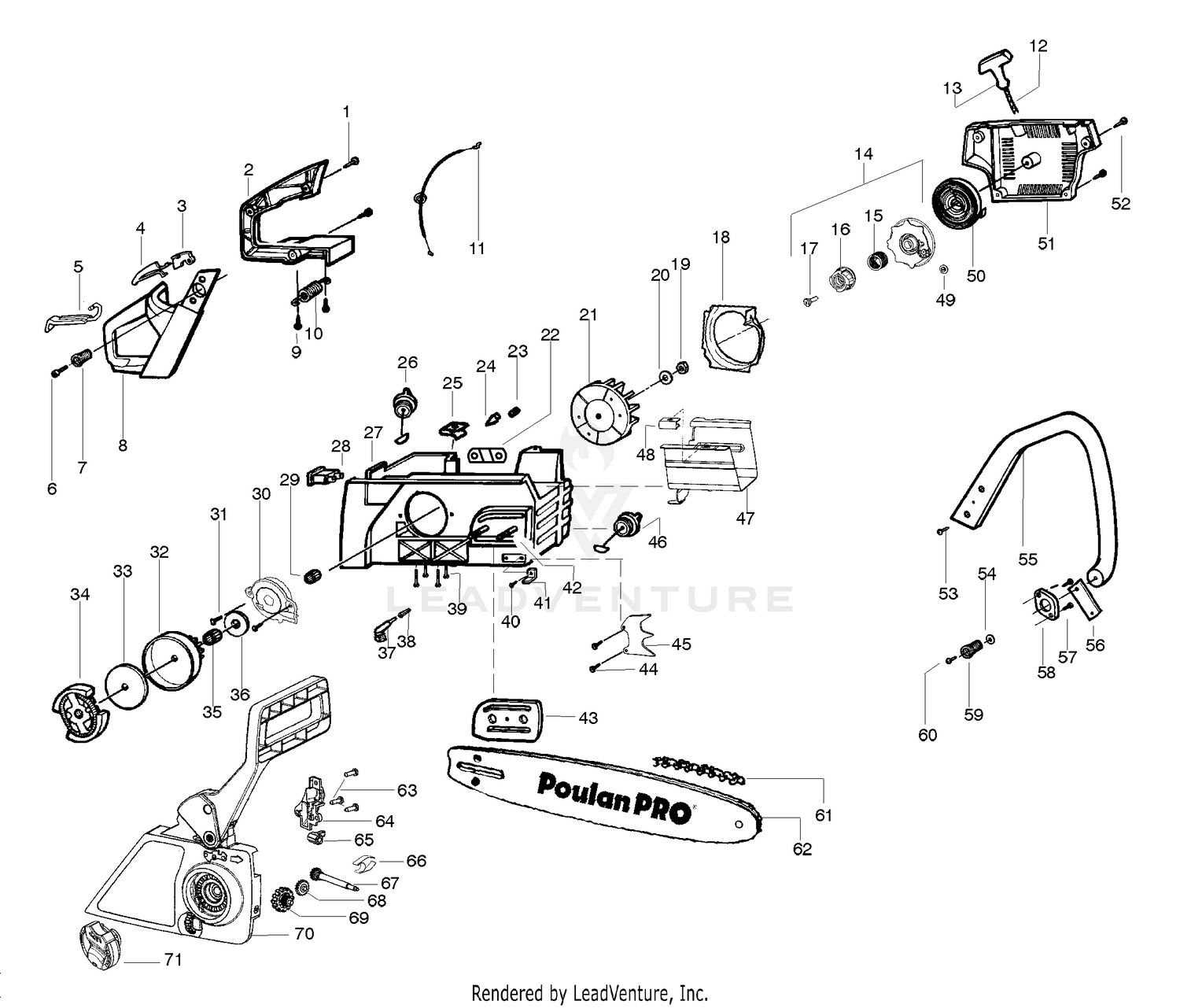

Handle, Chassis & Bar Assembly
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-6715 | GAUGE BAR ASM Price: $148.12 |
| 1 | 530015957 | Screw Price: $1.99 |
| 2 | 29-9100 | BRUSH AND HANDLE ASM Price: $58.15 |
| 3 | 530036097 | Trigger-Throttle Price: $1.99 |
| 4 | 115-0803 | ROLLER REBUILD TOOL KIT Price: $122.41 |
| 4 | 530036098 | Lockout-Throttle Price: $1.99 |
| 5 | 117-0975 | TOOL-INSTALLATION, REEL BEARING Price: $30.44 |
| 5 | 530053443 | Lever-Choke Price: $1.99 |
| 6 | 125-5610 | PAPER-REEL, TORO (10 PACK) Price: $6.02 |
| 6 | 530015937 | Screw Price: $1.99 |
| 7 | 530038985 | Spring-Isolator Price: $1.99 |
| 9 | 530015906 | Screw Price: $1.99 |
| 10 | 530038986 | Spring-Isolator Price: $1.99 |
| 12 | 530069232 | Kit-Rope Price: $3.99 |
| 13 | 530056422 | Handle-Starter Price: $1.99 |
| 15 | 530021180 | Spring EPS Price: $1.99 |
| 16 | 530059677 | Hub-Starter EPS Price: $5.99 |
| 17 | 530021179 | Screw-Shoulder Price: $1.99 |
| 18 | 530047667 | Plate-Baffle Fan Price: $1.99 |
| 19 | 530016134 | Nut-Flywheel Price: $1.99 |
| 20 | 530015127 | Washer-Flywheel Price: $1.99 |
| 21 | 530059637 | Assy-Flywheel Price: $32.99 |
| 23 | 530029868 | Plug-Vent Price: $1.99 |
| 24 | 530026119 | Valve-Check Price: $1.99 |
| 25 | 530015922 | Nut-Speed Price: $1.99 |
| 26 | 530010845 | Assy-Fuel Cap Price: $5.99 |
| 28 | 530069572 | Kit-Switch Price: $4.99 |
| 29 | 530029833 | Worm-Oil Pump Price: $3.99 |
| 30 | 545036801 | PLUNGER & GEAR ASSY This part replaces 530014410. Price: $11.99 |
| 31 | 530015896 | Screw Price: $1.99 |
| 33 | 530015611 | Washer-Clutch Price: $1.99 |
| 34 | 530014949 | Assy-Clutch Price: $7.99 |
| 35 | 530032119 | Bearing-Clutch Price: $4.99 |
| 36 | 530015907 | Washer-Thrust Price: $1.99 |
| 37 | 545047801 | Pickup-Oil Price: $2.99 |
| 38 | 530056533 | Filter-Oil Price: $2.99 |
| 39 | 530016037 | Screw Price: $1.99 |
| 40 | 530015814 | Screw Price: $1.99 |
| 41 | 530029850 | Chain Catcher Price: $1.99 |
| 42 | 530015877 | Bar Bolt Price: $2.99 |
| 43 | 530047855 | Bar Plate Price: $3.99 |
| 44 | 530016439 | Screw Price: $1.99 |
| 46 | 530057236 | Assy-Oil Cap Price: $5.99 |
| 47 | 530055406 | Shield-Heat Price: $2.99 |
| 48 | 530055322 | Clip-"U" Price: $1.99 |
| 49 | 530016080 | Screw Price: $1.99 |
| 50 | 545008013 | Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 51 | 545008803 | Housing-Fan Price: $8.99 |
| 52 | 530015892 | Screw Price: $1.99 |
| 53 | 530015814 | Screw Price: $1.99 |
| 54 | 530015123 | Washer This part replaces 530015158. Price: $1.99 |
| 55 | 530053955 | ASSY HANDLE BAR This part replaces 530038327. Price: $11.99 |
| 56 | 530036113 | Front Strap-AV Price: $2.99 |
| 57 | 530015775 | Screw-Plate Price: $1.99 |
| 58 | 530036101 | Plate-Isolator Price: $1.99 |
| 59 | 530038985 | Spring-Isolator Price: $1.99 |
| 60 | 530015984 | Screw Price: $1.99 |
| 61 | 952051310 | Chain"- 20" Price: $24.99 |
| 62 | 578137901 | BAR This part replaces 545049001. Price: $30.26 |
| 63 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 64 | 545051201 | Cover-Gear Price: $3.99 |
| 65 | 545060502 | PIN BAR ADJUSTING This part replaces 545060501. Price: $1.99 |
| 66 | 545149301 | Clip-Spring Price: $1.99 |
| 67 | 545060401 | Screw-Adjuster Price: $5.99 |
| 68 | 545060201 | Gear-Idler Price: $2.99 |
| 69 | 525884202 | ASSY THUMB WHEEL BLACK This part replaces 545090501. Price: $1.99 |
