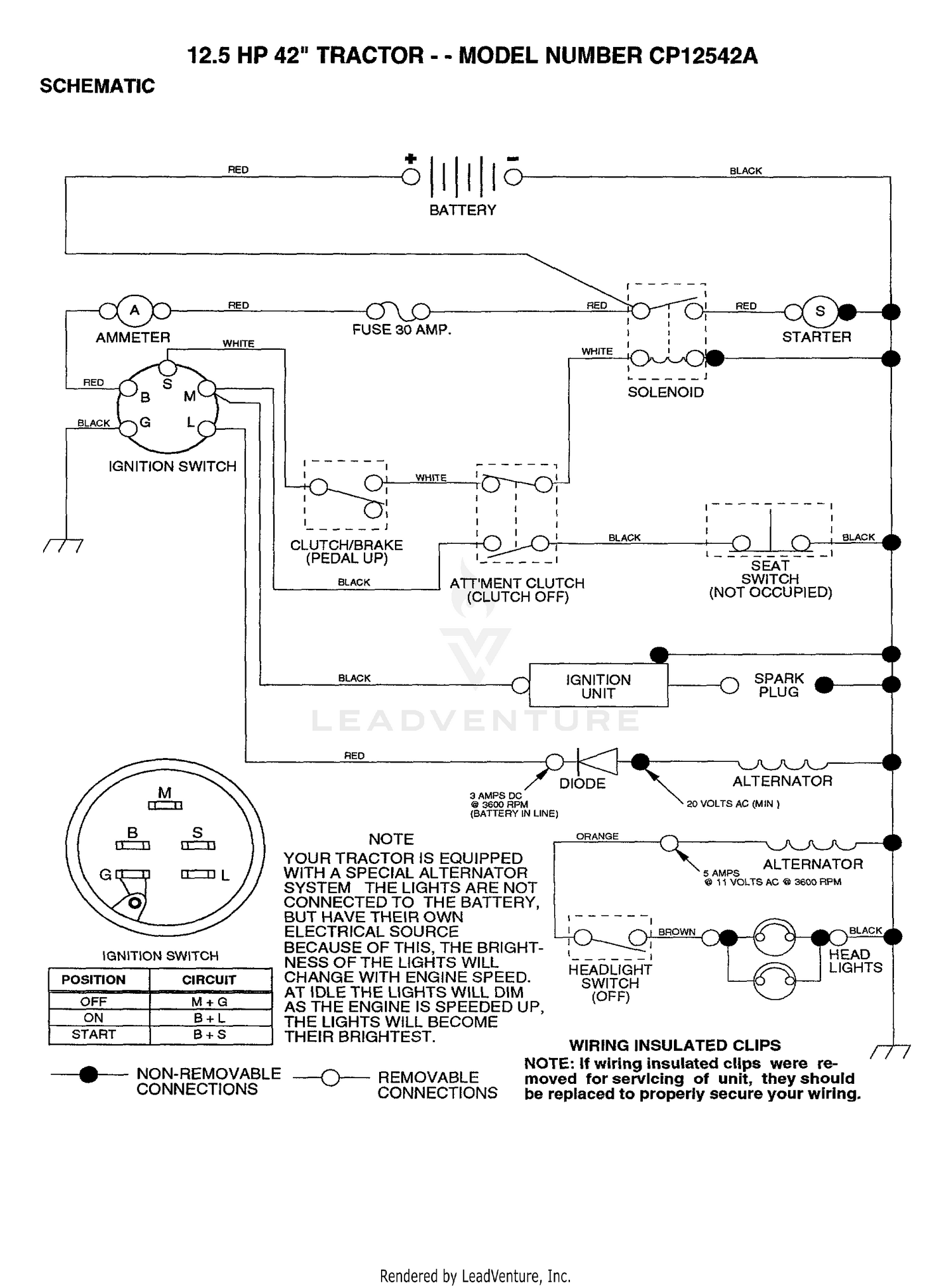

SCHEMATIC
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 010 | 98-7693 | ALTERNATOR ASM Price: $511.95 |
| 020 | 98-7695 | BOLT Price: $3.47 |
| 040 | 98-9366 | WASHER-PLAIN Price: $0.28 |
| 050 | 98-7697 | BOLT Price: $1.08 |
| 060 | 100-9233 | WASHER-PLAIN Price: $0.48 |
| 070 | 98-7572 | NUT Price: $0.32 |
| 080 | 98-7699 | WASHER-SPRING Price: $0.44 |
| 090 | 105-2872 | BRACKET-ALTERNATOR Price: $29.38 |
| 100 | 98-7701 | COVER-BELT Price: $61.89 |
| 110 | 106-2044 | PULLEY-DRIVE, FAN Price: $337.00 |
| 120 | 98-7451 | KEY-FEATHER Price: $1.72 |
