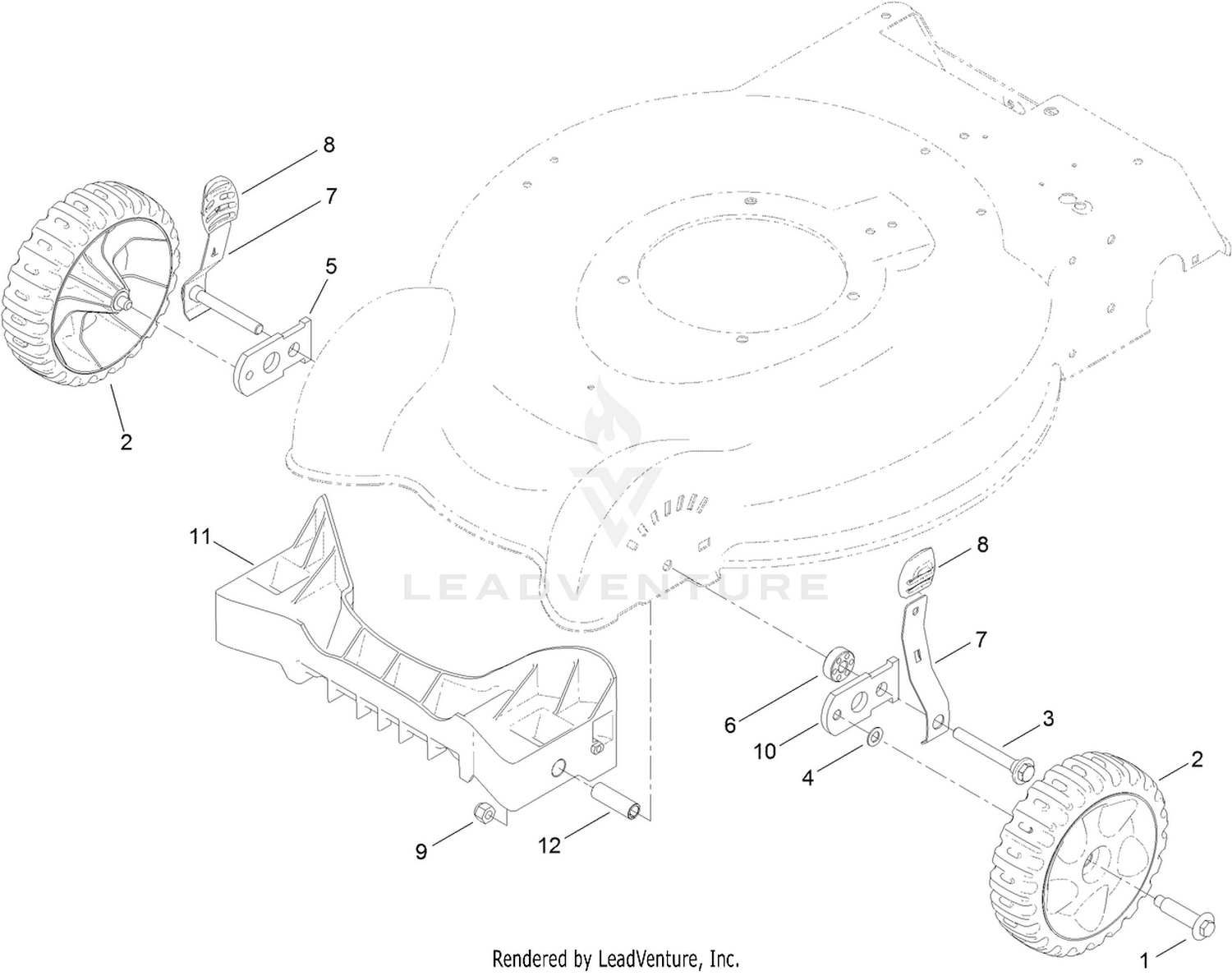

Front Wheel and Height-of-Cut Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 614650 | BOLT-SHOULDER Price: $3.28 |
| 3 | 117-5996 | BOLT-SHOULDER Price: $2.31 |
| 4 | 40-1940 | WASHER Price: $1.59 |
| 5 | 107-3877 | ARM-PIVOT, RH Price: $8.02 |
| 6 | 117-5997 | SPACER-ARM, PIVOT Price: $1.84 |
| 7 | 112-8828 | ARM-SPRING, FRONT Price: $6.59 |
| 8 | 105-3042 | KNOB-LEVER, HOC Price: $3.28 |
| 9 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 10 | 108-1044 | ARM-PIVOT, LH Price: $6.44 |
| 11 | 117-5971 | DISCONTINUED Price: Call Us |
