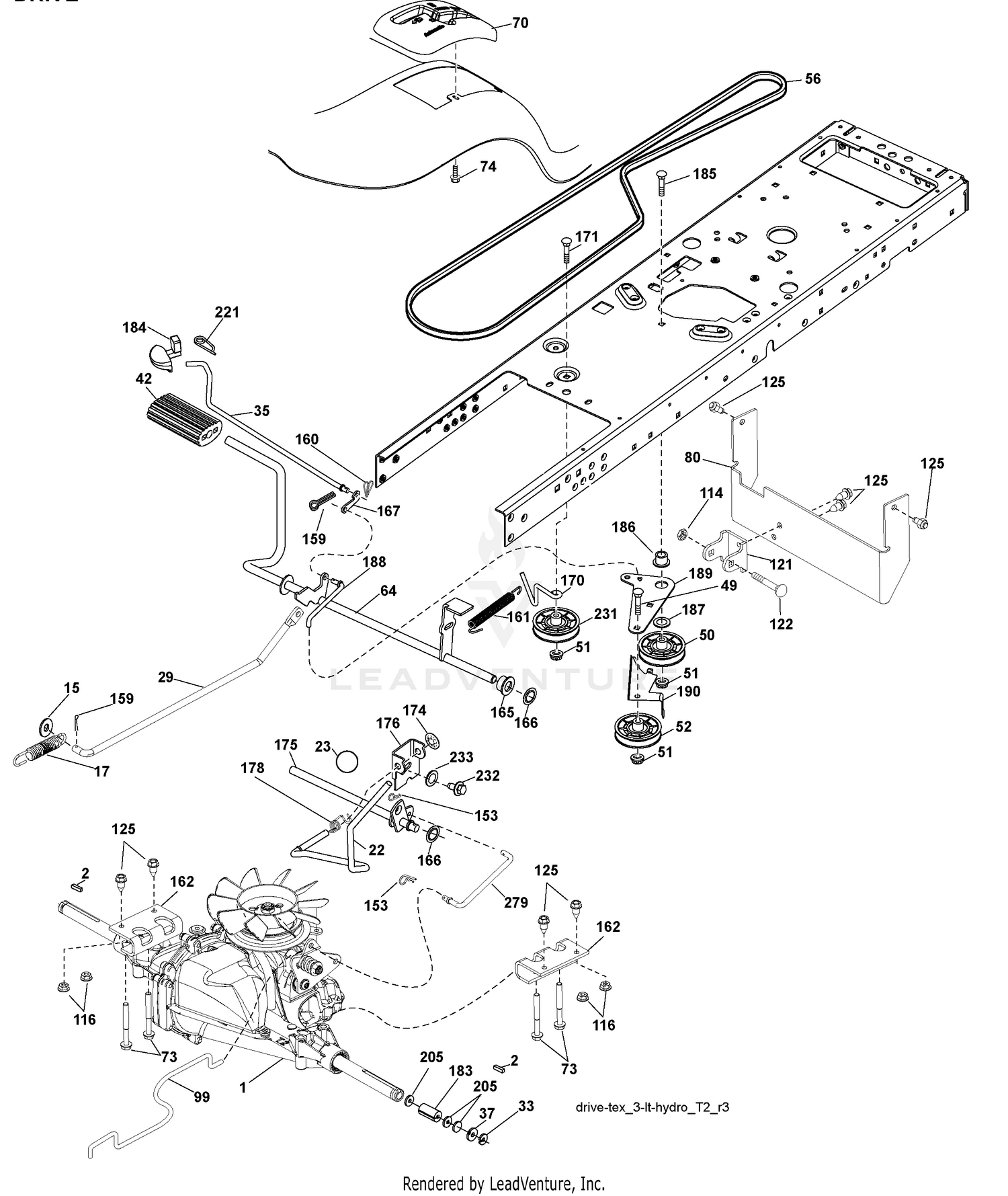

| Ref | Part Number | Description |
|---|
| 2 |
123583X |
Key Square Price: Call Us |
| 010 |
98-9705 |
STARTER ASM Price: $663.57 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 020 |
104-8608 |
YOKE ASM Price: $437.88 |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 23 |
409154X421 |
Knob Price: Call Us |
| 29 |
408391 |
Rod, Brake Price: Call Us |
| 030 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 040 |
98-7744 |
BEARING Price: $35.64 |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 050 |
98-7743 |
BEARING Price: $37.48 |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
125907X |
V-Belt, Drive Price: Call Us |
| 060 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 070 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 70 |
193220X428 |
Console Price: Call Us |
| 73 |
74490544 |
Bolt Hex 5/16-18 Gr. 5 Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 080 |
105-3746 |
MAGNETIC SWITCH ASM Price: $689.29 |
| 80 |
408393 |
Strap Torque Price: Call Us |
| 090 |
98-7748 |
FRAME-END Price: $82.65 |
| 99 |
408418 |
Rod Spring Bypass Price: Call Us |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 114 |
73800500 |
Nut Lock 5/16-18 UNC Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 121 |
175611 |
Bracket Strap Torque Price: Call Us |
| 122 |
72010520 |
Bolt 5/16-18 x 2.50 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7754 |
SPRING Price: $4.70 |
| 153 |
4497H |
Retainer Spring 1" Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 160 |
98-7755 |
BALL Price: $0.42 |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 162 |
408784 |
Adapter, Transaxle T2 Price: Call Us |
| 165 |
196212 |
Bushing Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 171 |
72110622 |
Bolt Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
408539 |
Shaft Asm Shift Price: Call Us |
| 176 |
196214 |
Arm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 183 |
156972 |
Spacer Axle Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
100-9240 |
BOLT Price: $7.23 |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 200 |
98-7758 |
BOLT ASM Price: $4.90 |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 210 |
99-8375 |
COVER Price: $24.86 |
| 220 |
99-8371 |
NUT-HEX Price: $3.75 |
| 230 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 231 |
407287 |
Idler V-Groove 1.688" Offset Price: Call Us |
| 232 |
74780716 |
Bolt 7/16-14 x 1 Gr 5 Price: Call Us |
| 233 |
405296 |
Washer Serrated Price: Call Us |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 260 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
| 270 |
105-2886 |
COVER ASM Price: $58.11 |
