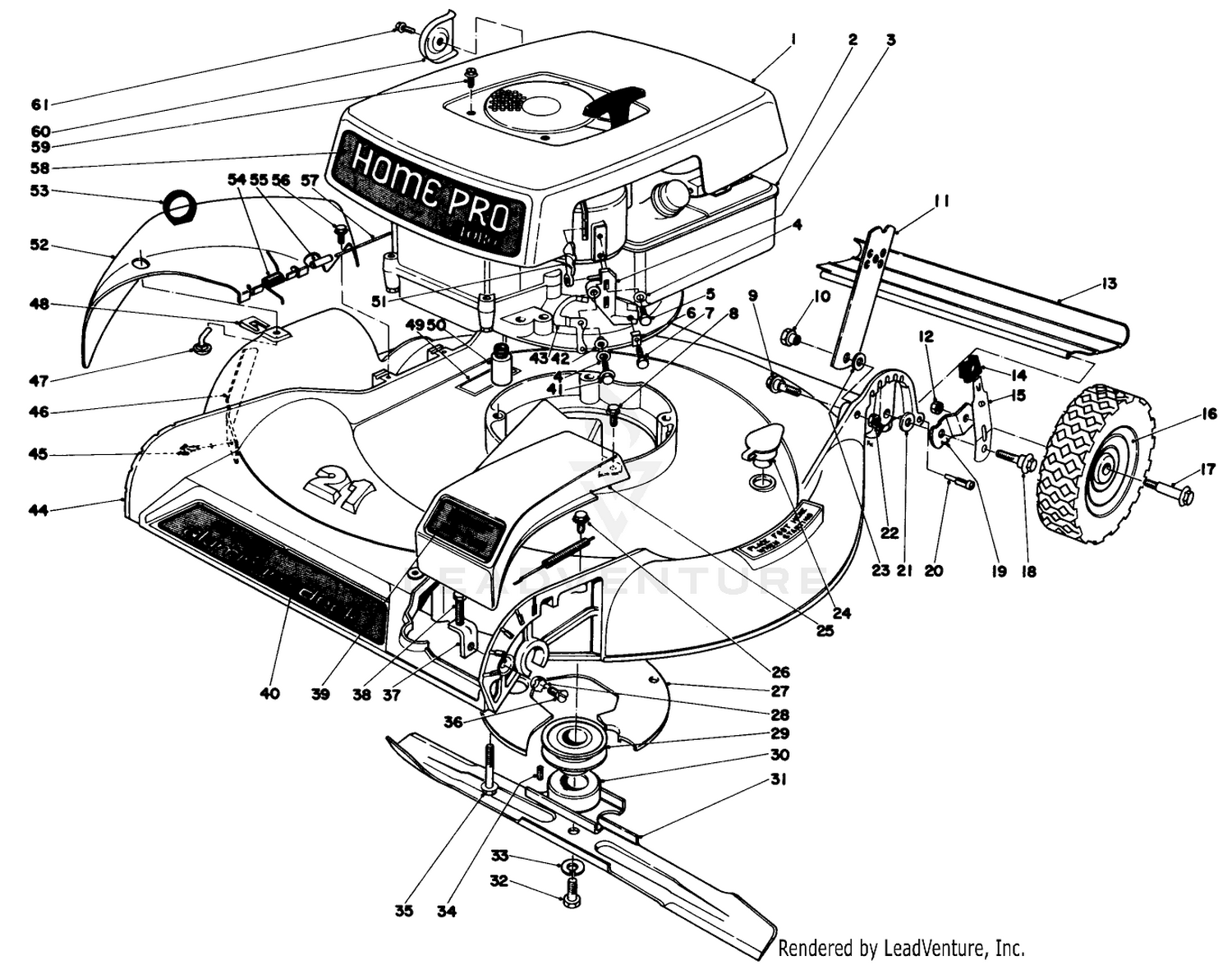

| Ref | Part Number | Description |
|---|
| 1 |
28-1340 |
DISCONTINUED Price: Call Us |
| 2 |
221-537 |
Engine Price: Call Us |
| 3 |
27-9280 |
DISCONTINUED Price: Call Us |
| 4 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 5 |
32144-19 |
SCREW-SHWH Price: $0.89 |
| 6 |
2412-38 |
DISCONTINUED Price: Call Us |
| 7 |
3290-134 |
SCREW Price: $0.27 |
| 8 |
12-5450 |
SCREW Price: $7.99 |
| 9 |
27-7210 |
SCREW-SHOULDER Price: $5.27 |
| 10 |
27-6520 |
HANDLE PIVOT NUT Price: $5.81 |
| 11 |
27-7080 |
HANDLE LATCH Price: $14.79 |
| 12 |
3296-6 |
NUT-LOCK This part replaces 32146-6. Price: $1.49 |
| 13 |
28-3780 |
SHIELD - TRAILING Price: Call Us |
| 14 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 15 |
25-7890 |
DISCONTINUED Price: Call Us |
| 16 |
12-2620 |
DISCONTINUED Price: Call Us |
| 17 |
99-5651 |
WHEEL BOLT & NUT This part replaces 3-2652. Price: $1.15 |
| 18 |
12-2440 |
PIVOT SCREW Price: $13.06 |
| 19 |
20-3190 |
DISCONTINUED Price: Call Us |
| 20 |
8-6160 |
SAFTEY SHIELD SCREW Price: Call Us |
| 21 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 22 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 23 |
27-6510 |
HANDLE LATCH SPACER Price: $2.97 |
| 24 |
6-4500 |
WASHOUT PLUG Price: $6.61 |
| 25 |
28-4610 |
DISCONTINUED Price: Call Us |
| 26 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 27 |
19-4040 |
DISCONTINUED Price: Call Us |
| 28 |
3255-12 |
DISCONTINUED Price: Call Us |
| 29 |
93-0278 |
PULLEY - DRIVER This part replaces 23-0130. Price: $28.97 |
| 30 |
49-7890 |
BLADE RETAINER This part replaces 20-2750. Price: $40.51 |
| 31 |
8-5230-03 |
BLADE-21" This part replaces 8-5230. Price: $22.43 |
| 32 |
3-5246 |
SPECIAL SCREW Price: Call Us |
| 33 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 34 |
27-6300 |
KEY-SQUARE Price: $3.83 |
| 36 |
32108-20 |
SCREW Price: $0.61 |
| 37 |
25-7560 |
DISCONTINUED Price: Call Us |
| 38 |
321-3 |
SCREW-HH Price: $0.28 |
| 39 |
28-4620 |
DISCONTINUED Price: Call Us |
| 40 |
28-4630 |
DISCONTINUED Price: Call Us |
| 41 |
32144-20 |
SCREW-HWH Price: $2.62 |
| 42 |
25-0520 |
BUSHING Price: $19.07 |
| 43 |
25-8150 |
DISCONTINUED Price: Call Us |
| 44 |
6-8149 |
Housing (Incl. Ref. #40 49) Price: Call Us |
| 45 |
32104-114 |
SCREW THD 1/4 20 5/8 Price: $5.17 |
| 46 |
12-2990 |
Bar Safety Price: Call Us |
| 47 |
28-3260 |
BAG CHUTE PIN Price: $4.45 |
| 48 |
28-3250 |
BAG CHUTE CLIP PIN Price: $4.34 |
| 49 |
28-6920 |
DISCONTINUED Price: Call Us |
| 50 |
19-4030 |
DISCONTINUED Price: Call Us |
| 51 |
25-0350 |
INTERLOCK LEVER Price: $15.97 |
| 52 |
28-1440 |
DISCONTINUED Price: Call Us |
| 53 |
28-1430 |
LIFT LOOP Price: $2.95 |
| 54 |
28-1560 |
TORSION SPRING Price: Call Us |
| 55 |
28-3270 |
SLEEVE Price: Call Us |
| 56 |
12-3270 |
SCREW Price: $3.09 |
| 57 |
3-2644 |
HINGE PIN Price: Call Us |
| 58 |
28-4650 |
DISCONTINUED Price: Call Us |
| 59 |
32104-94 |
DISCONTINUED Price: Call Us |
| 60 |
2210-129 |
DISCONTINUED Price: Call Us |
| 61 |
2210-173 |
DISCONTINUED This part replaces 2210-128. Price: Call Us |
