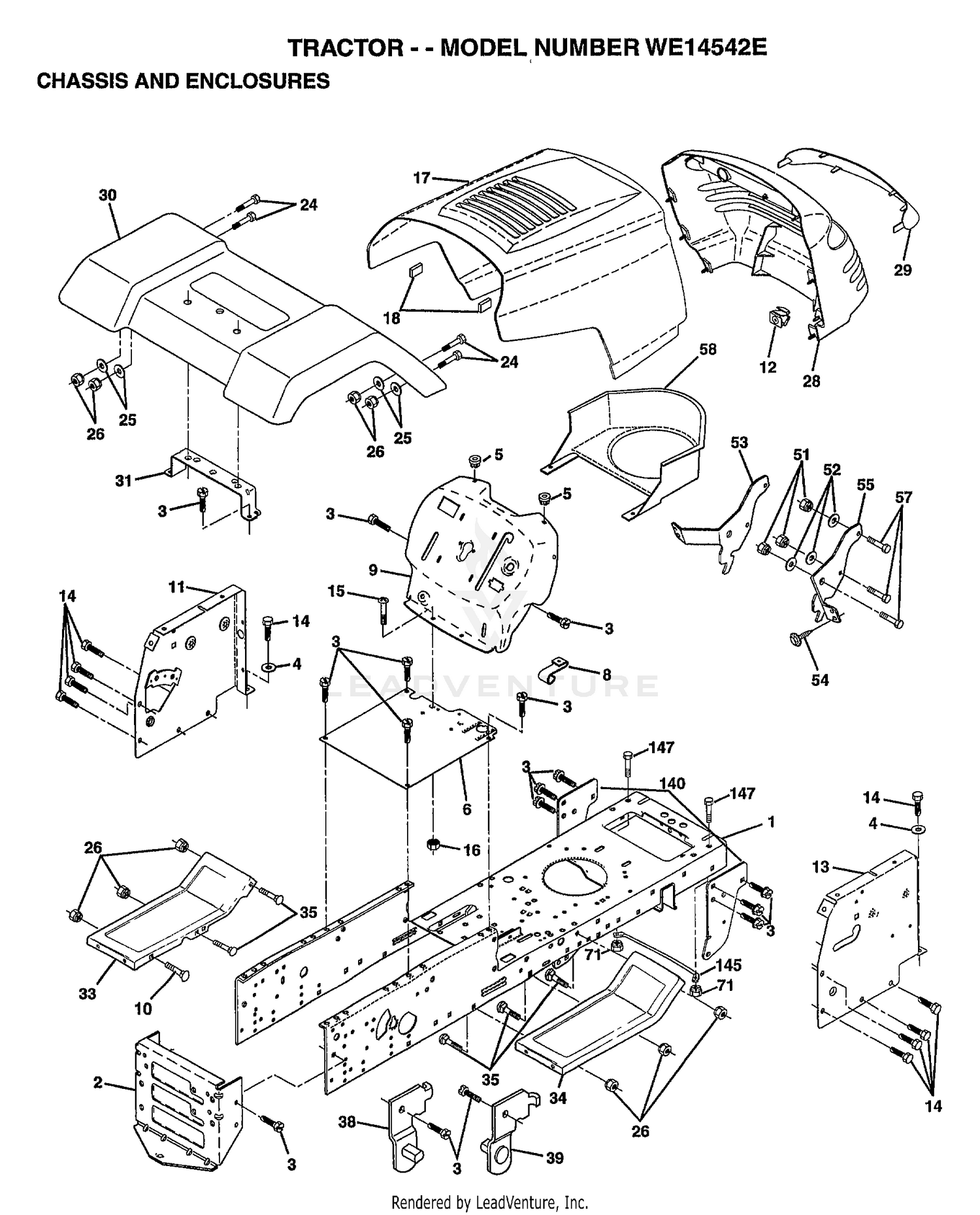

| Ref | Part Number | Description |
|---|
| 1 |
159530 |
CHASSIS ASM Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
155924X012 |
SADDLE Price: Call Us |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 9 |
147627X011 |
DASH.SILKSCREENED Price: Call Us |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 10 |
98-9620 |
OVERFLOW PIPE ASM Price: $44.29 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
159639X550 |
HOOD.STEEL.ASSY Price: Call Us |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 20 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 30 |
109872X550 |
FENDER.PNT. Price: Call Us |
| 30 |
98-7654 |
GASKET Price: $8.84 |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
105476X550 |
FOOTREST.LH.PERF. Price: Call Us |
| 34 |
105475X550 |
FOOTREST.RH.PERF. Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 40 |
98-9420 |
OVERFLOW PIPE ASM Price: $3.91 |
| 45 |
112-0182 |
PIPE-OVERFLOW Price: $3.78 |
| 50 |
98-7671 |
CLIP-PIPE Price: $2.39 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
108-2866 |
NOZZLE HOLDER KIT Price: $438.88 |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 70 |
98-7676 |
GASKET Price: $2.73 |
| 71 |
73680400 |
SUB= 73690400 Price: Call Us |
| 80 |
98-7677 |
SEAL-HEAT This part replaces 98-9694. Price: $10.17 |
| 90 |
98-9653 |
PIPE-INJECTION Price: $69.17 |
| 100 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 110 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 120 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 130 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
| 140 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 147 |
74760412 |
BOLT LT Price: Call Us |
| 150 |
98-9623 |
PLUG-GLOW This part replaces 98-9695. Price: $93.76 |
| 160 |
98-9631 |
CORD-PLUG, GLOW Price: $12.41 |
