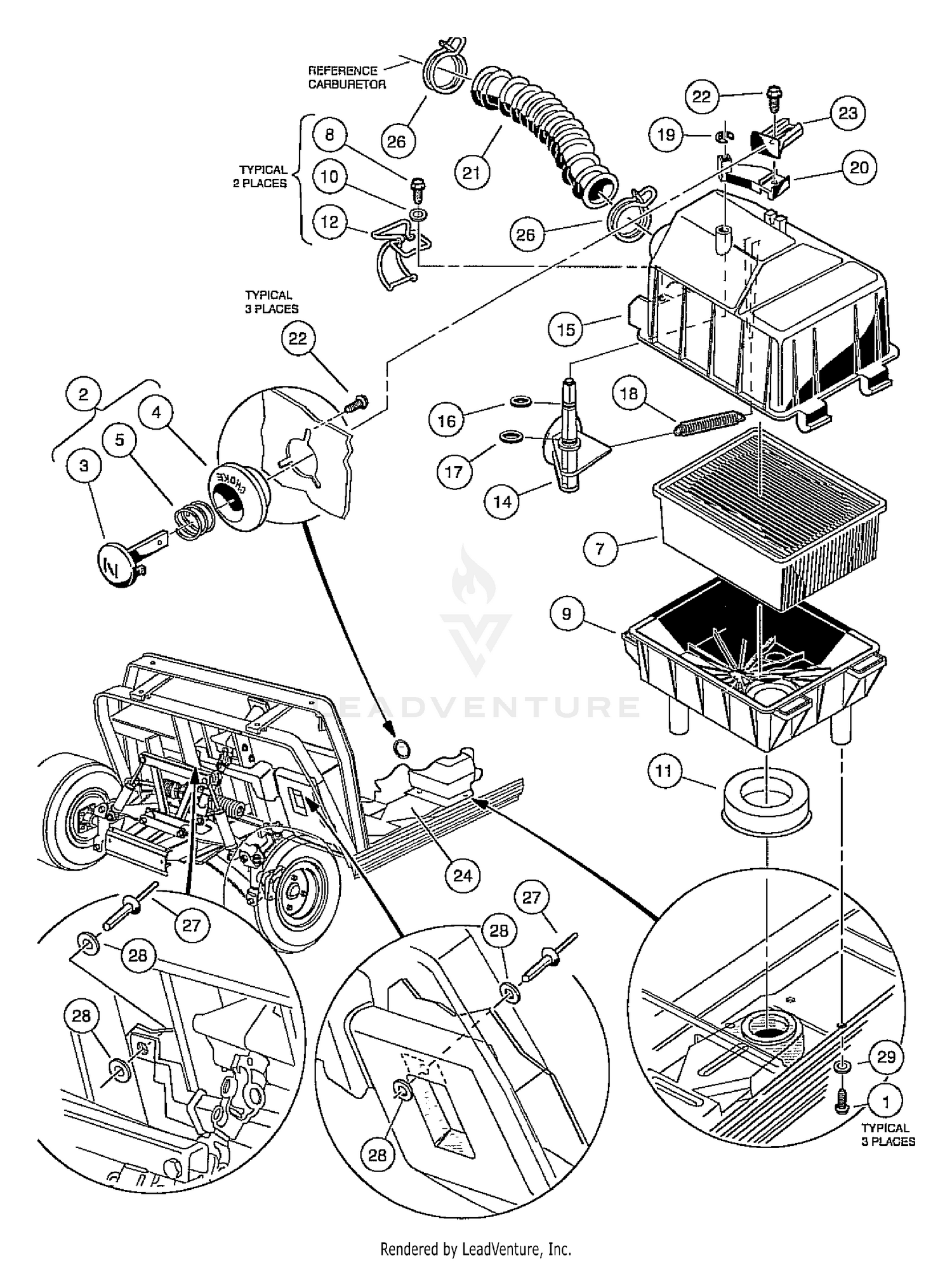

| Ref | Part Number | Description |
|---|
| 1 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 1 |
603000268 |
SCREW, #12-16 X .625 HI-LO Price: $1.99 |
| 2 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 3 |
53-6070 |
LEVER-BRAKE Price: $361.17 |
| 3 |
603003177 |
LEVER, CHOKE This part replaces 603002183. Price: $7.99 |
| 4 |
59-7240 |
CONTROL-THROTTLE Price: $74.01 |
| 4 |
603003178 |
GUIDE, CHOKE LEVER This part replaces 603002184. Price: $8.99 |
| 5 |
48-7890 |
NUT-HEX Price: $0.25 |
| 5 |
603003196 |
COMPRESSION SPRING This part replaces 603002202. Price: $6.99 |
| 6 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
603000004 |
AIR FILTER OHV Price: $12.99 |
| 8 |
25-8640 |
SCREW-HH Price: $1.09 |
| 8 |
603000491 |
SCREW, #8 X .500 HX HD HI-LO Price: $1.99 |
| 9 |
25-9090 |
SWIVEL Price: $45.44 |
| 9 |
603000494 |
BOTTOM, AIR BOX Price: $49.99 |
| 10 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 10 |
603000555 |
WASHER, #8 SS FLAT WASHER Price: $2.99 |
| 11 |
603000592 |
SEAL, INTAKE Price: $5.99 |
| 12 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 12 |
603000594 |
LATCH, WIREFORM Price: $6.99 |
| 13 |
92-9222 |
CABLE-HANDBRAKE This part replaces 58-7030. Price: $220.53 |
| 14 |
323-4 |
SCREW-HH Price: $1.02 |
| 15 |
233-25 |
KNOB-CONTROL Price: $4.48 |
| 16 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 17 |
58-2170-03 |
BAR-LINKAGE, BRAKE This part replaces 58-2170. Price: $151.21 |
| 18 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 18 |
603000497 |
SPRING, EXTENSION RETURN Price: $3.99 |
| 19 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 19 |
603000498 |
RETAINING RING .25 SHAFT Price: $1.99 |
| 20 |
603000591 |
LEVER, CHOKE Price: $4.99 |
| 21 |
603000523 |
AIR INTAKE HOSE Price: $44.99 |
| 21 |
86-6100 |
SWITCH-INDICATOR, ELECTRICAL Price: $121.96 |
| 22 |
603003194 |
SCREW, #12-16 X .50 WSHR HI-LO This part replaces 603002200. Price: $1.99 |
| 22 |
86-6090 |
HYD OIL FILTER ASM Price: $584.05 |
| 23 |
60-2140 |
SPRING Price: $26.64 |
| 23 |
603003231 |
CHOKE POSITIONER This part replaces 603002237. Price: $4.99 |
| 24 |
58-2270 |
NEUTRAL LOCK YOKE W.A. Price: $95.85 |
| 24 |
603003241 |
DUCT ASSY, DS AIR This part replaces 603002249. Price: $84.99 |
| 25 |
237-101 |
O-RING This part replaces 237-123. Price: $2.80 |
| 26 |
340-80 |
FITTING-STR Price: $47.82 |
| 26 |
603000618 |
CLAMP, 1.58" ID HOSE Price: $3.99 |
| 27 |
340-65 |
O-RING Price: $3.58 |
| 27 |
603000067 |
RIVET, 3/16 X .5 ALUM POP Price: $1.99 |
| 28 |
48-6940 |
SPRING Price: $30.61 |
| 28 |
603000051 |
WASHER FLAT Price: $1.99 |
| 29 |
322-6 |
SCREW-HH Price: $0.45 |
| 30 |
58-6560 |
SIDE CONT. PANEL FACE Price: $57.25 |
| 31 |
340-64 |
O-RING Price: $4.22 |
| 32 |
84-6470-03 |
BRACKET-FILTER This part replaces 84-6470. Price: $56.96 |
| 33 |
340-10 |
Adapter (Incl. Ref. #25 31) Price: $45.09 |
| 34 |
48-7880 |
NUT-HEX Price: $0.25 |
| 35 |
43-5920 |
WASHER-LOCK, SPRING This part replaces 48-8000. Price: $0.25 |
| 36 |
52-6430 |
WASHER Price: $0.25 |
| 37 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 38 |
250-1 |
DISCONTINUED Price: Call Us |
| 39 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 40 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 41 |
3217-6 |
NUT-HEX Price: $1.19 |
