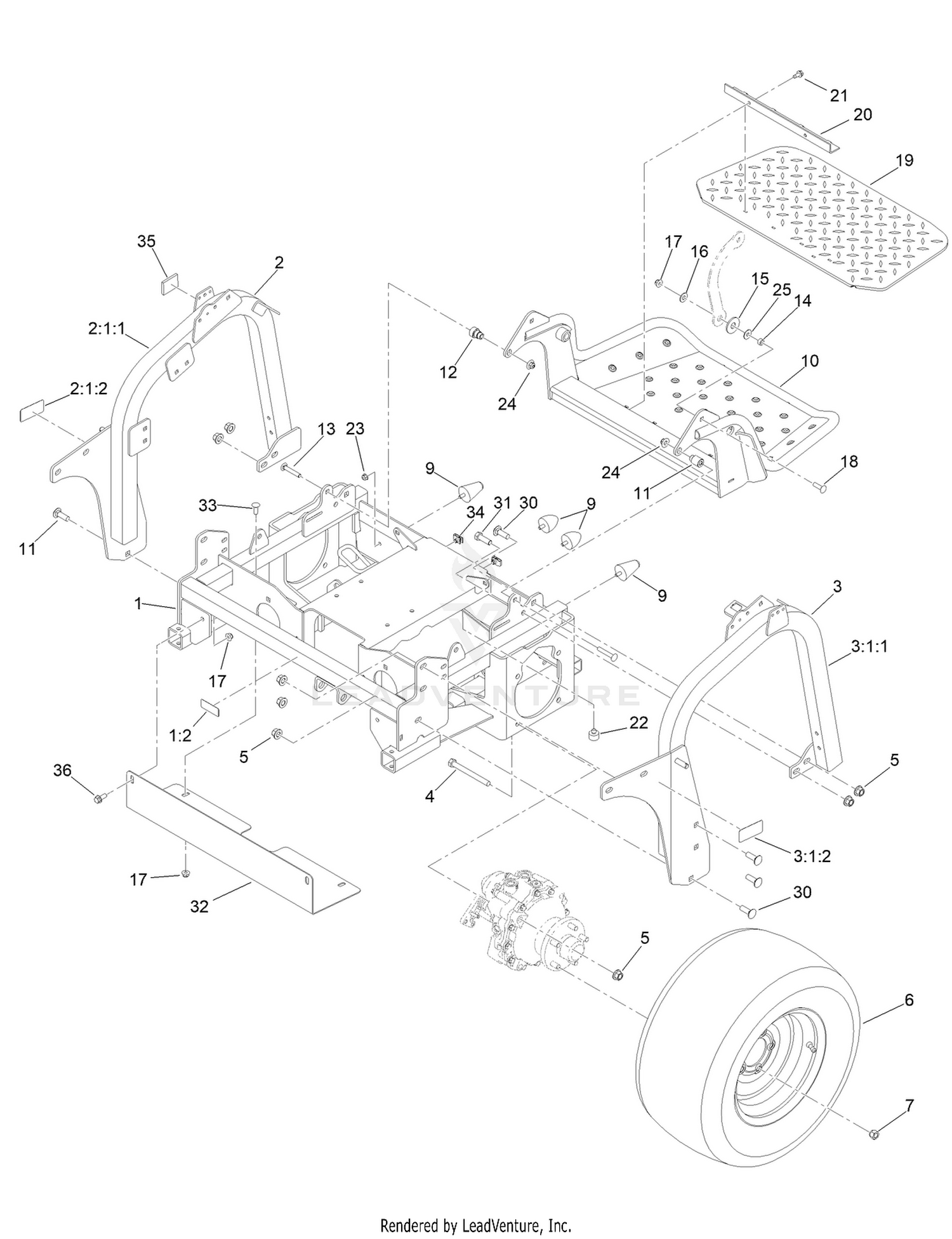

| Ref | Part Number | Description |
|---|
| 1 |
147-3709 |
MAIN FRAME ASM W/DECAL Price: Call Us |
| 2 |
145-7448SP |
RH FRAME ASM W/DECALS Price: $552.22 |
| 3 |
163-1654SP |
LH FRAME ASM W/DECALS Price: Call Us |
| 4 |
325-19 |
SCREW-HH Price: $2.57 |
| 5 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 6 |
147-6605 |
WHEEL ASM Price: $357.70 |
| 7 |
139-2564 |
NUT-LUG Price: $0.99 |
| 9 |
114-1926 |
BUMPER-RUBBER Price: $18.18 |
| 10 |
161-6796-03SP |
PLATFORM ASM-BLACK Price: Call Us |
| 11 |
144-7613 |
BUSHING-FLANGED Price: $26.19 |
| 12 |
147-3306 |
BUSHING-FLANGED Price: $48.18 |
| 13 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 14 |
111044 |
SPACER Price: $0.39 |
| 15 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 16 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 19 |
126-7157 |
MAT-PLATFORM Price: $72.07 |
| 20 |
114-1920-03 |
CLAMP-SHIELD Price: $29.29 |
| 21 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 22 |
120-7893 |
BUMPER-GROMMET Price: $3.08 |
| 23 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 24 |
109-6658 |
NUT-FLANGE, NI Price: $0.89 |
| 25 |
119-4150 |
WASHER-FLAT Price: $0.64 |
| 30 |
3233-2 |
SCREW-CARR Price: $1.49 |
| 31 |
325-6 |
SCREW-HH Price: $1.42 |
| 32 |
145-7408SP |
BRACKET-SHIELD, BELT Price: Call Us |
| 33 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 34 |
115-7721 |
NUT-CLIP, U Price: $0.81 |
| 35 |
147-3336 |
SEAL-FOAM Price: $4.22 |
